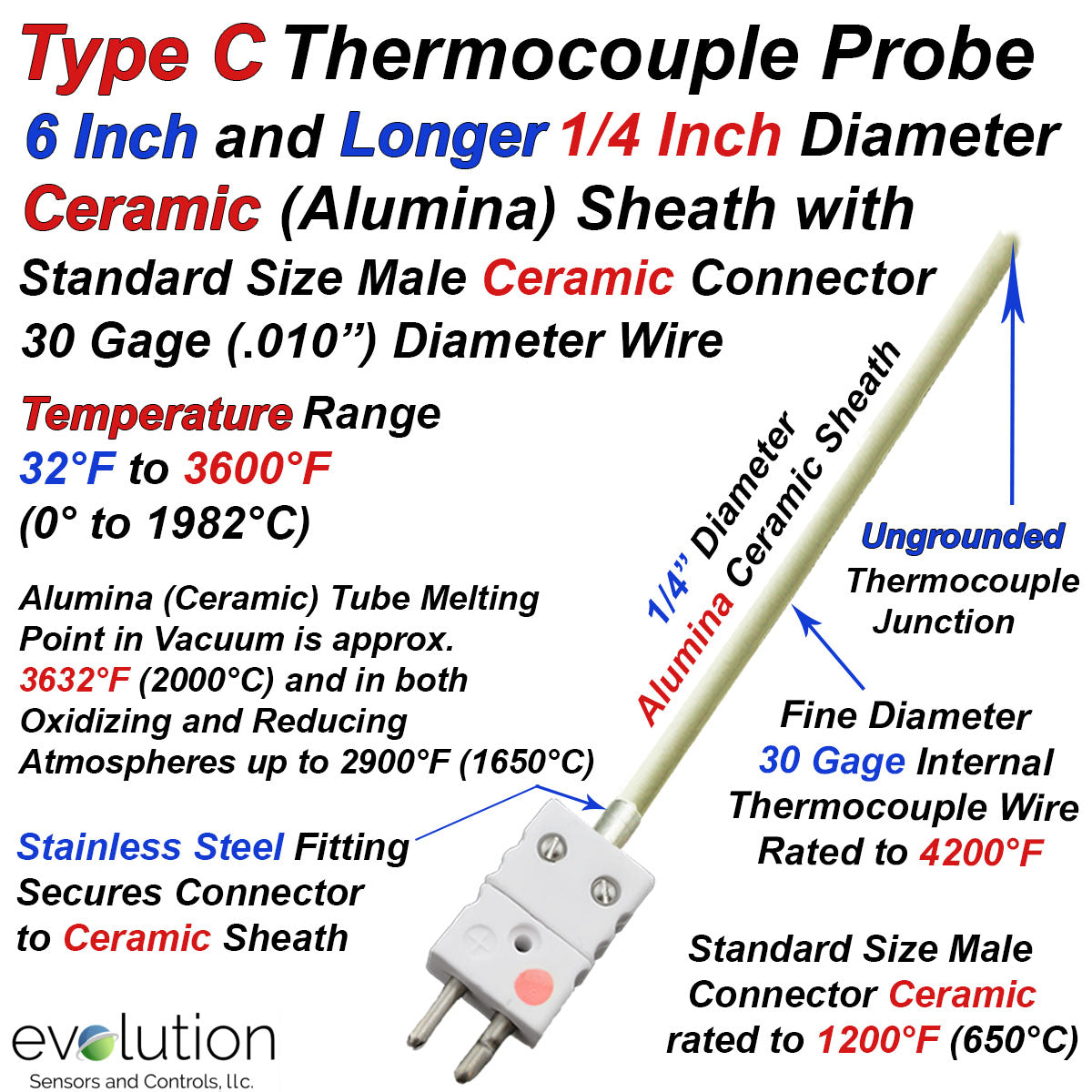

Type C Thermocouple Probe Ceramic Alumina Sheath 1/4" Diameter 6 Inches and LONGER with Standard Size Round Pin Ceramic Connector

Type C Thermocouple Probe Ceramic Alumina Sheath 1/4" Diameter 6 Inches and LONGER with Standard Size Round Pin Ceramic Connector

• Temperature Range range 32 to 3600°F (0 to 2000°C). The Alumina (Ceramic) Tube melting point is approx 2000°C
• Inner Wire is 30 Gage Tungsten Rhenium wire in a 6 inch and LONGER 1/8" diameter Ceramic Alumina type sheath with a standard size round pin connector attached.

• Positive Wire made of 95% Tungsten, 5% Rhenium and Negative Wire made of 74% Tungsten, 26% Rhenium

• Isolated (Ungrounded) thermocouple junction minimizes potential signal interference from electrical noise.
• Instrument Connection: Standard Size Round Pin Male Ceramic Connector Body is rated to 1200°F (650°C)
  • The connector can accurately transfer the full temperature range of Type C thermocouples
• EvoSensors part number: C1X-CINS-250-30G-UX-12-SCCX- with 12 inch long alumina (ceramic) sheath
