Type E Thermocouple Probe 1/16" Diameter 6 Inches Long with a Standard Size Male Round Pin Connector

Evosensors

$50.00
SKU: E1X-S304-062-GX-6-SPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

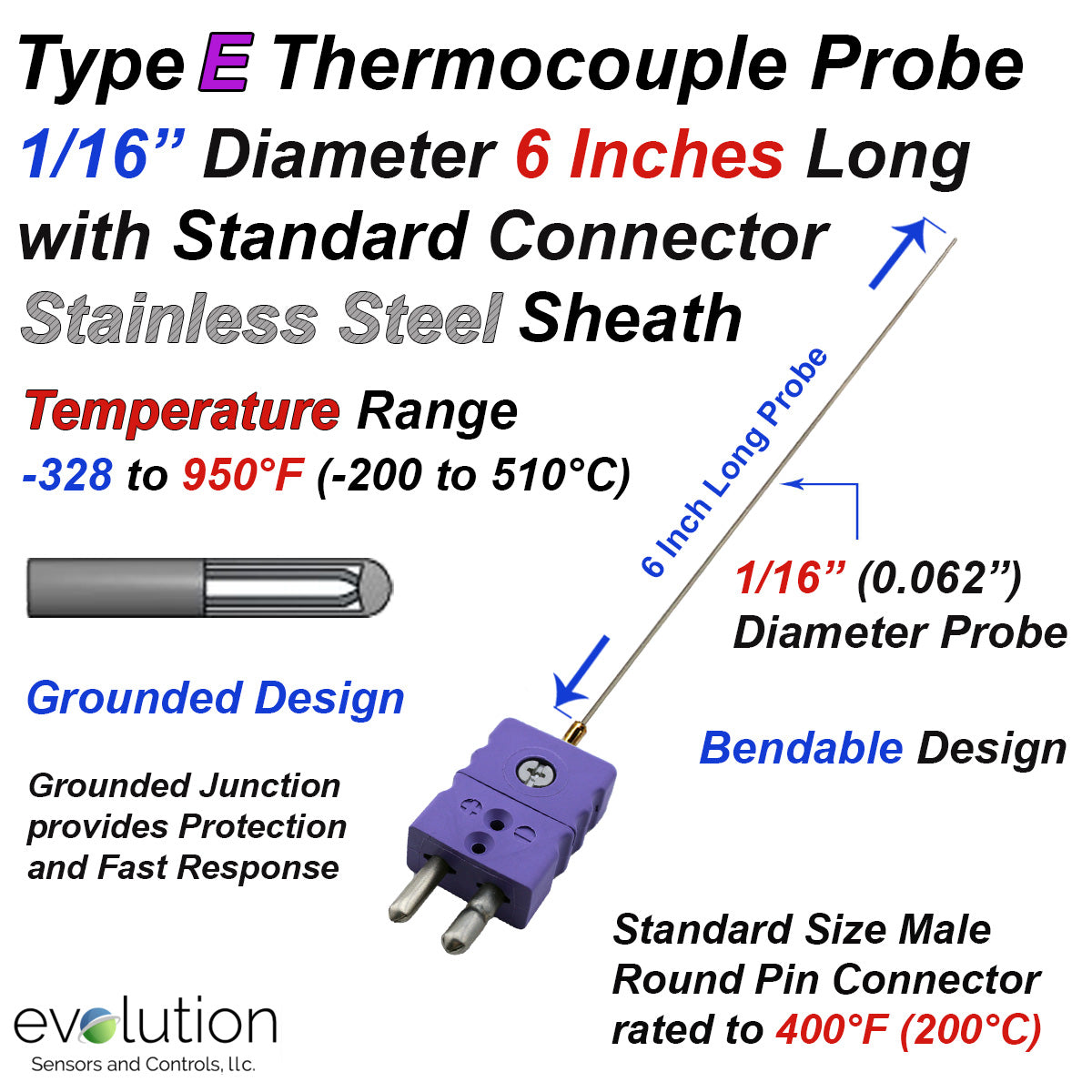

Type E Thermocouple Probe 1/16" Diameter 6 Inches Long Stainless Steel Sheath Grounded with a Standard Size Male Round Pin Connector

  • Temperature Operating range -328 to 950°F (-200 to 510°C)
  • Grounded Junction provides Protection and Fast Response.
  • Stainless-Steel MI Cable sheath - 6 Inches (152.4 mm) long with a 1/16"  diameter.
  • 1/16" Diameter Stainless Steel MI Cable design provides the ability to Bend the probe to a radius equal to 2.5 times the sheath diameter without causing any damage to the temperature sensing capabilities or integrity of the metal sheath.
  • Instrument Connection: Standard Size male round pin thermocouple connector with a -40 to 400°F (-40 to 200°C) rated thermoplastic body.
    • Connector can accurately transfer the full range of Type E thermocouples
  • Evosensors part number: E1X-S304-062-GX-6-SPCX
  • Location: C-2-30
