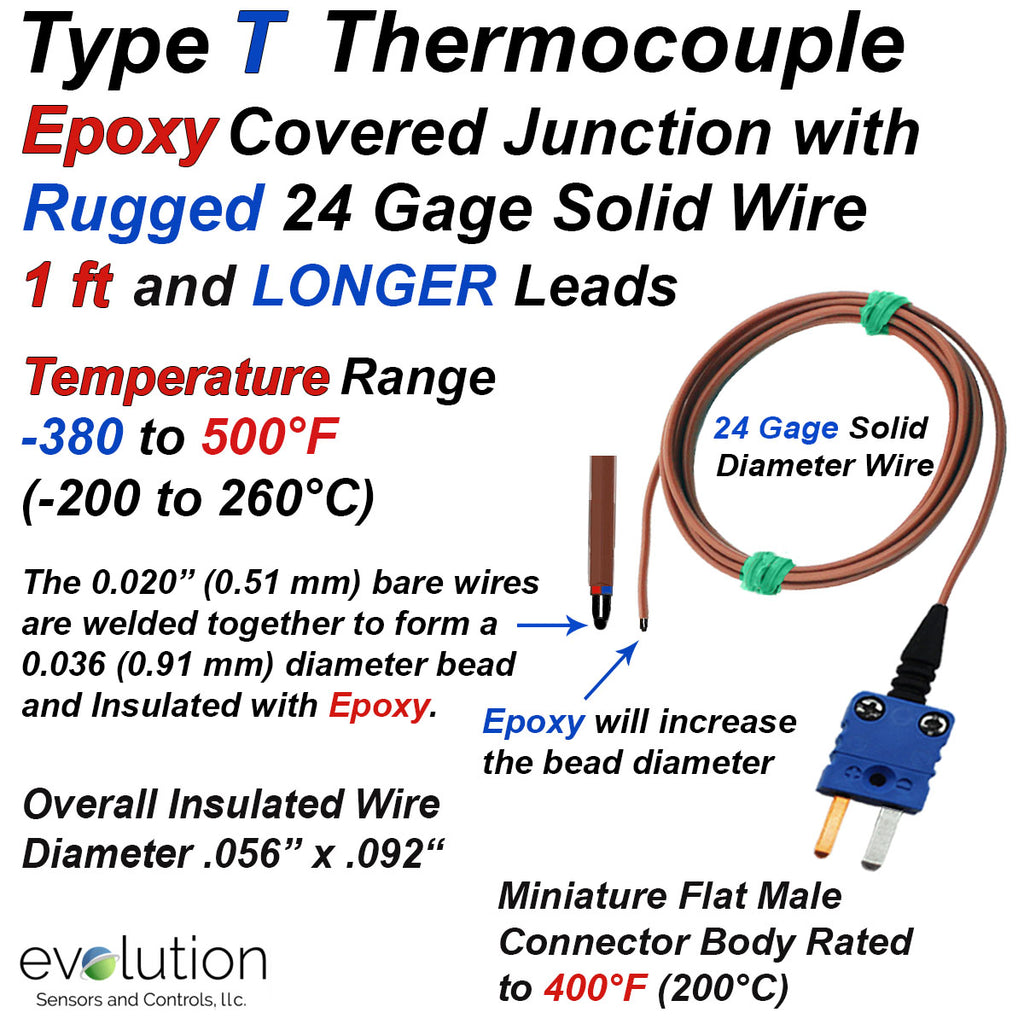

Type T Thermocouple Flexible Wire Design with Epoxy Coated Junction and 1ft and Longer of Rugged 24 Gage Solid Wire with Miniature Connector

Evosensors

$36.00
SKU: T1X-WBWX-24G-EE-0.25-PFXX-12-MPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

Type T Thermocouple Flexible Wire Design with Epoxy Coated Junction and 1ft and Longer of Rugged 24 Gage Solid Wire with Miniature Flat Pin Male Connector

  • Temperature Operating range of -380 to 500°F (-200 to 260°C)
  • Thermocouple junction is Epoxy coated
  • Wire Leads are 1ft and Longer.
    • Do you need special length wire leads, contact us by email info@evosensors or phone 407-420-8080
  • Wire Construction is rugged 24 gage solid 0.020" (0.51 mm) bare wire with a 2 wire parallel construction.
    • Each wire is individually insulated with PFA (Plastic Fluoropolymer) along with a PFA overall jacket jacket.
    • The overall outside diameter is a nominal .056" x .092".
  • Color Code is ASNI with a blue positive, red negative and brown overall
  • Instrument Connection is a miniature male flate pin thermocouple connector body rated to 400°F (200°C).
    • Connector is capable of accurately transferring the full range of Type T thermocouples.
  • Excellent Low Temperature capabilities and accuracy for Semi-Conductor, Electronics, Life Sciences, Aerospace, Optics, and overall Research and Testing along with many other industries.
  • EvoSensors Part Number: T1X-WBWX-24G-EE-0.25-PFXX-120-MPCX - with 120 inches (10ft) of lead wire : Location H-4-10
