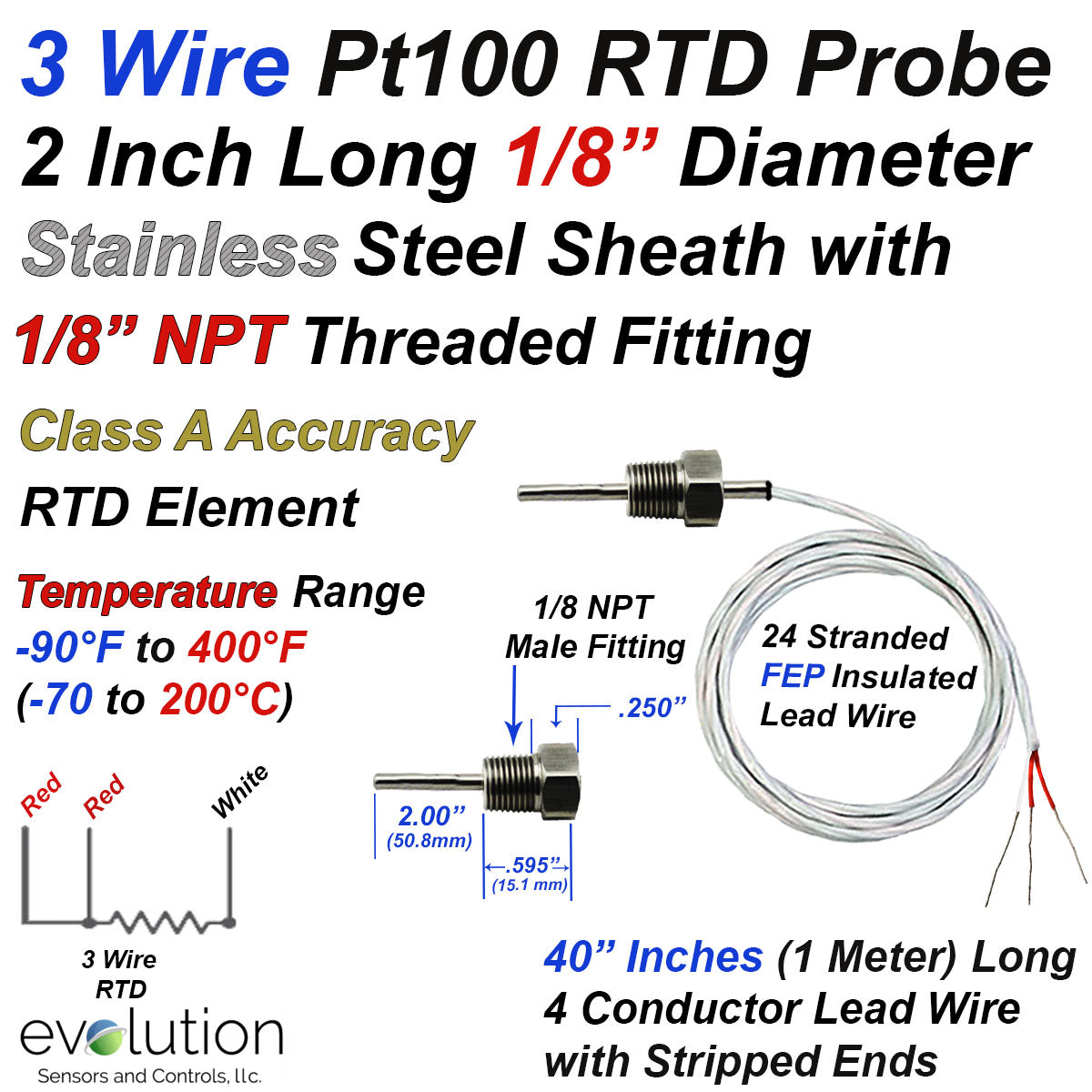

Class A Accuracy Pt100 3-Wire RTD Temperature Probe 2-inch long 1/8" diameter stainless steel sheath with a 1/8" NPT fitting and 40 inches (1 meter) of lead wire

Pt100 3 Wire RTD Probe with 1/8 NPT Fitting - Class A accuracy Temperature Sensor in a 2" Inch Long 1/8" Diameter Stainless Sheath with 40 Inches (1 meter) of Lead Wire

• Temperature Range of -90 to 400°F (-70 to 200°C)
• Pt100 (Platinum 100 Ohm) Class A Accuracy temperature sensor encased in metal sheath with high purity mineral insulation providing excellent temperature stability and mechanical toughness
• RTD probe has 2 Inch-Long 316 Stainless-Steel 1/8" (.125" 3.2 mm) diameter sheath attached to 1/8 diameter npt fitting
• Probe Transitions from the fitting to 40 inches (1 meter or 3.3ft) of FEP (Fluorinated Ethylene Propylene) insulated wire
• Wire Construction is 3 individual conductors of 24 Gage Stranded (7/32) nickel plated copper with FEP insulation on the single wire and on the outside jacket.
  • Overall outside jacket diameter of .095".
  • Color code is 2 red and 1 white  wire with a white overall jacket.

• Instrument Connection - stripped wire leads
• Click for PDF Spec Sheet
• EvoSensors Part Number: P3A-NPT8-125-PX-2-PFXX-40-STWL
• Location: C-5-26

Consider the following Accessories to complete your Sensor System
