Short RTD Probe 4 Wire Class A Design with a 2.5 Inch and Long 1/8" Diameter Sheath with Lead Wires

Evosensors

$87.00
SKU: P4A-TBSX-125-PX-2.5-PFXX-84-STWL

← Previous Product
   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

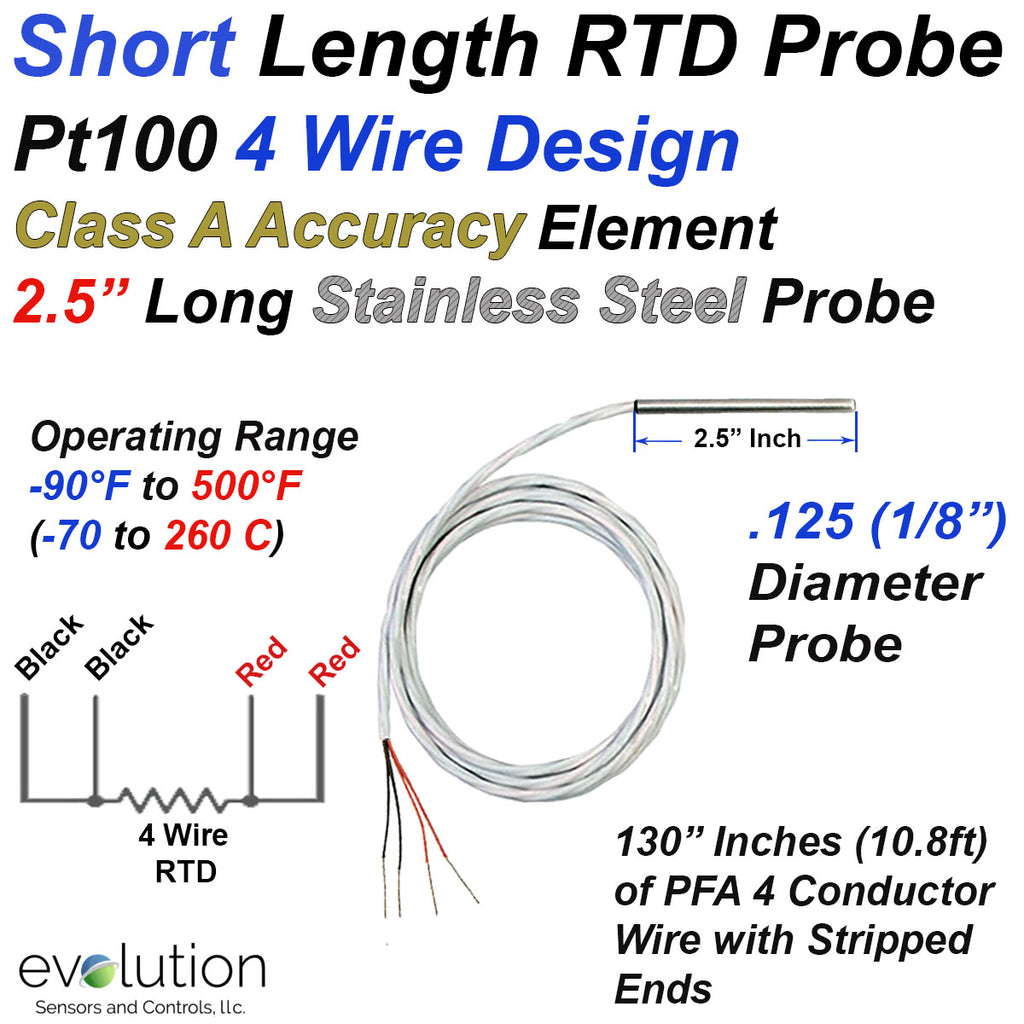

Short RTD Probe 4 Wire Class A Design with a 2.5 Inch and Long 1/8" Diameter Stainless Steel Sheath with PFA Lead Wire and Stripped Ends

  • Temperature Operating range is -90 to 500°F (-70 to 260°C)
  • Pt100 (Platinum 100 ohm) Class A accuracy temperature sensor in a 4 wire configuration provides highly accurate temperature measurement.
  • Probe Transition is a 500°F (260°C) rated epoxy seal to PFA
    (Plastic Fluoropolymer) insulated wire.
  • Stainless Steel Sheath 1/8" (.125") diameter with 2.5" Long Length
  • Lead Wire is 4-conductor 26 Gage Stranded (7/34) nickel plated copper with each wire insulated with 500°F (260°C) rated PFA. These 4 insulated wires are twisted together and covered with an outside jacket of PFA. The overall outside nominal diameter of .095" (2.4 mm).
  • Instrument Connection is stripped wire leads
  • Applications and Industries - an excellent solution for a combination of space restricted applications requiring high level accuracy with process development, product development, testing, machinery, and equipment in Bio-Pharmaceutical, Medical, Aerospace, Food Processing, HVAC, Refrigeration, and other industries.
  • EvoSensors Part Numbers:
    • P4A-TBSX-125-PX-2.5-PFXX-84-STWL - 84 inch long Wire Leads
    • P4A-TBSX-125-PX-2.5-PFXX-168-STWL - 168 inch long Wire Leads
    • P4A-TBSX-125-PX-2.5-PFXX-276-STWL - 276 inch long Wire Leads
