4 Wire Class A Accuracy PT100 RTD Probe Stainless Steel Sheath 3" or 5" Long x 1/4" Diameter with M12 Metal Connector

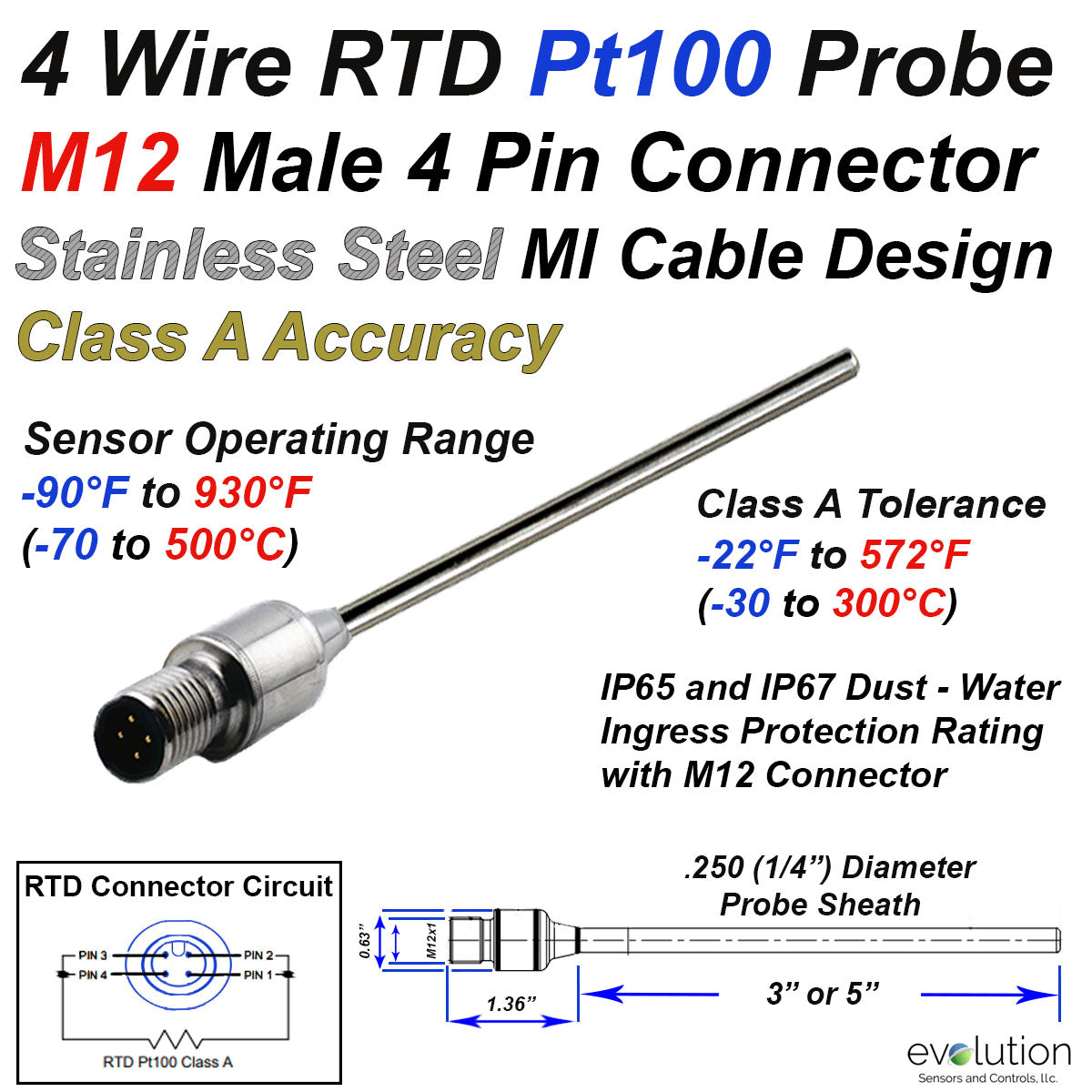

  • The RTD Probe is a 1/4" diameter 3" or 5" inch long 316 Stainless-Steel probe with a M12 Metal Circular Connector.
  • Temperature operating range is -90 to 932 F (-70 to 500 C) with a Class A tolerance of -22 to 572 F (-30 C to 300 C).
  • The sensor is a Pt100 (Platinum 100 Ohm) 4-wire Class A accuracy design encased in MI Cable (Metal sheathed cable with compacted high purity Mineral Insulation) providing excellent temperature stability, mechanical toughness and bendability.
  • The MI Cable section of the probe transitions to a M12 Metal Circular 4-Pin Connector. The outer sheath of the connector is stainless steel protecting a molded plastic insert with maximum temperature rating of 176 F (80 C).
  • The design and overall performance capabilities of this product provides temperature measurement solutions requiring a secure protected connection from vibration, moisture and dirt along with providing ease of maintenance in the Marine Industry, Aircraft Ground Support Equipment, Mobile Power Generation, Gas and Oil, Chemical, Military, Food and Beverage, Agricultural, Industrial Equipment, Factory Automation and other industries.
  • EvoSensors Part Number:
    • P4A-316SS-250-PX-3-M12S-X-WC2X - 3 Inch Long Sheath
      • Location:
    • P4A-316SS-250-PX-5-M12S-X-WC2X - 5 Inch Long Sheath
      • Location
