.198" Washer ID RTD Surface Temperature Sensor - 3 Wire Pt100 with 12 inches of Stainless Steel Braid Wire Leads



   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

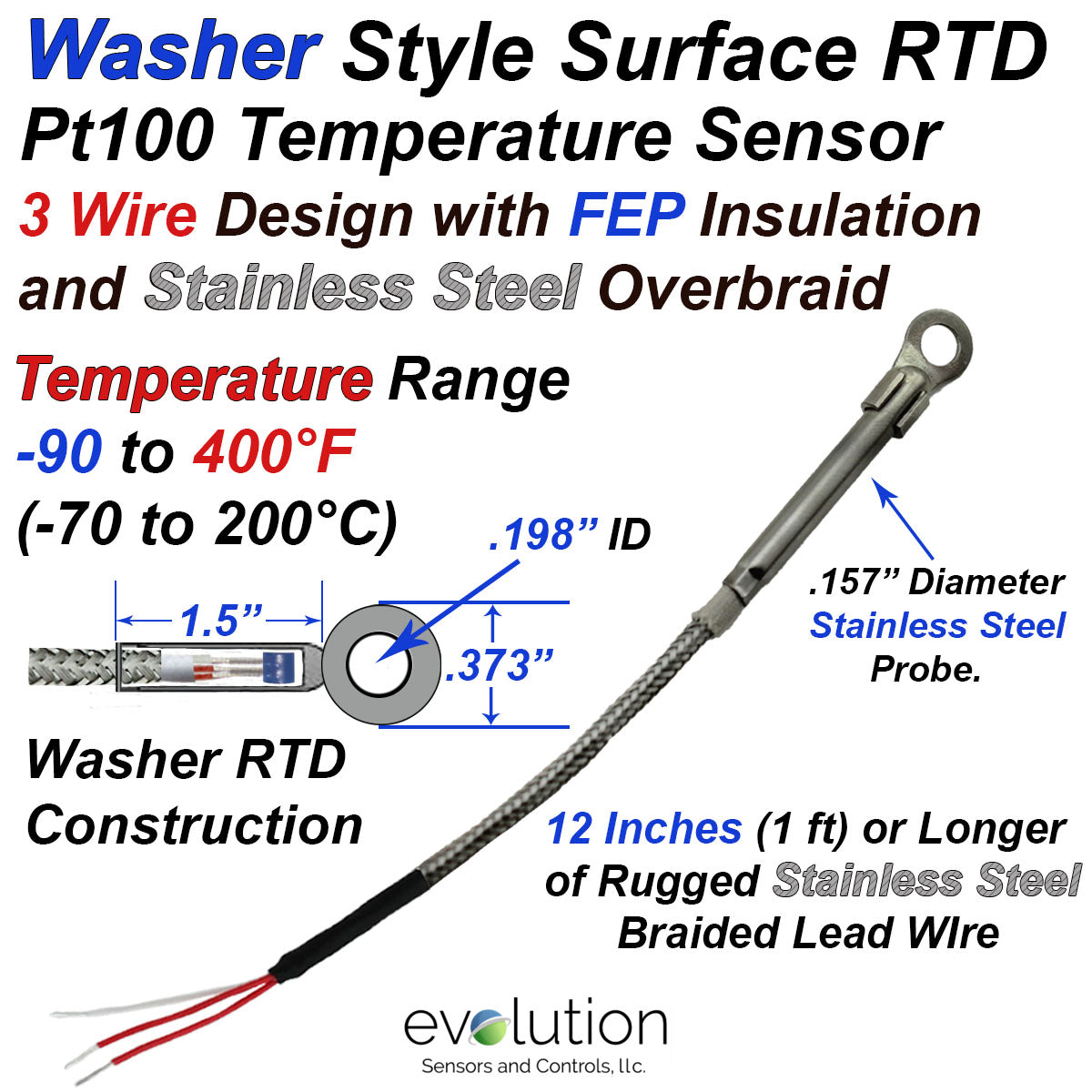

Washer RTD Surface Temperature Sensor 400°F Rated FEP Insulated Lead Wire with Stainless Steel Overbraid and Stripped Ends with Ferrules

  • The RTD Surface Temperature Sensor has a Bolt-On Stainless Steel Washer with a ID of 0.198" (5.02 mm) and 12 inches of FEP insulated leads with a metal overbraid and stripped ends.
  • Temperature Operating range is -90 to 400°F (-70 to 200°C)
  • 3-wire Pt100 (Platinum 100 Ohm) with a Class A accuracy element encased in the washer style fitting
  • Washer Surface Fitting a ID of 0.198" (5.02 mm)
  • Lead Wire is 12" Inches (305mm) long 400°F (200°C) FEP (Plastic Fluoropolymer) rated insulated wire with stainless steel overbraid and crimp on ferrules
  • Wire Construction is 3 Conductor 24 stranded (7/32) nickel plated copper with 2 Red and 1 White colors on the single wires and White overall jacket.
  • Rugged and Accurate temperature measurement applications for Food, Plastics, Packaging and other Custom Automation Machines,
  • EvoSensors Part Number: P3A-BDWT-198-PX-FPSB-12-STWL
