316 Stainless Steel Thermowell 4 Inch Long 2.5 Inch Insertion Depth with 1/2" NPT Threads for Process Connection and 1/2 NPT for 1/4" Diameter Probes

Evosensors

$97.00
SKU: TWX-316S-250-NPT-12-12-2.5

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

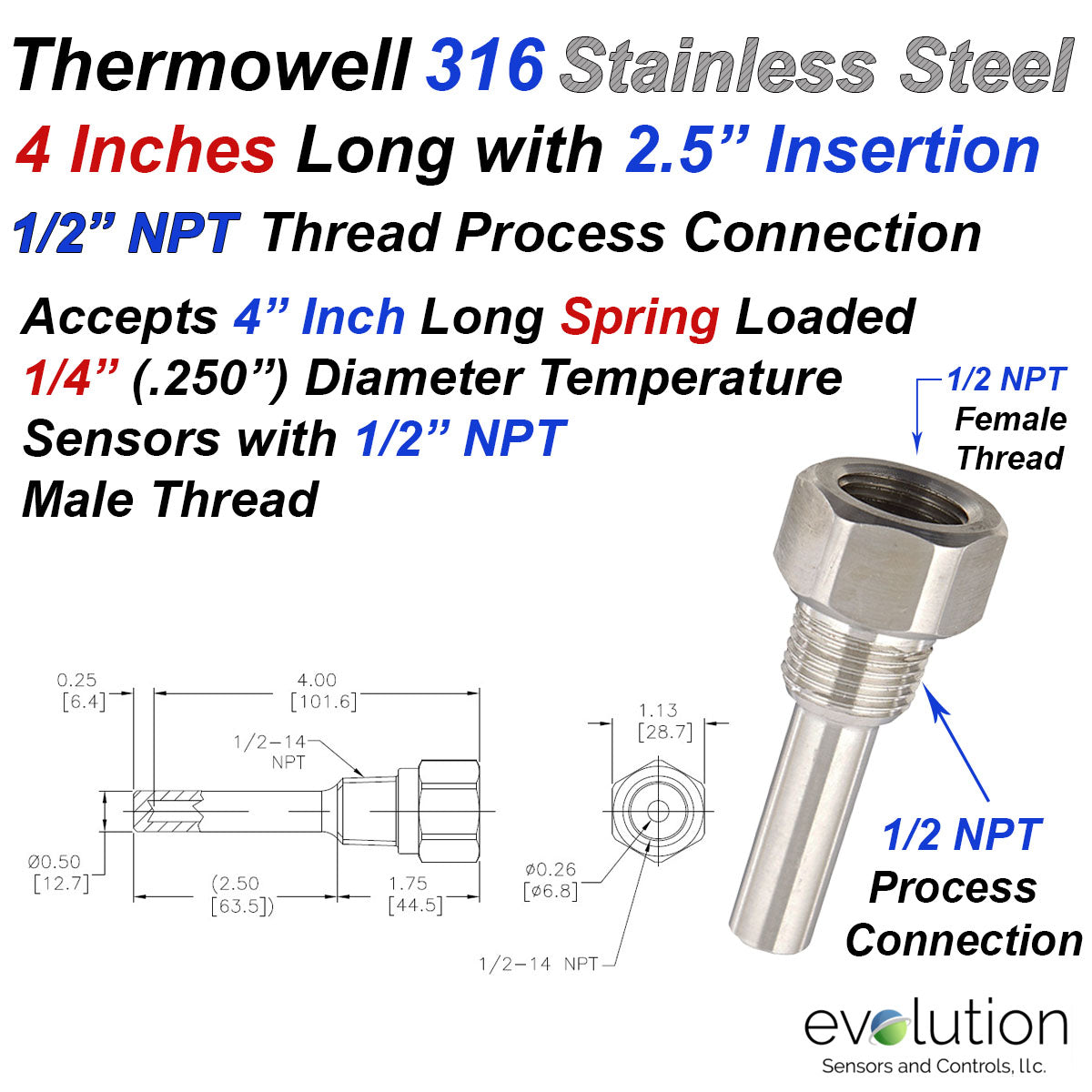

316 Stainless Steel Thermowell 4 Inch Long 2.5 Inch Insertion Depth with 1/2" NPT Threads for Process Connection and 1/2 NPT for 1/4" Diameter Probes

  • Solid Machined 316 Stainless Steel Body
  • Insertion Depth - 2.5 inches wtih Overall Length 4.25" (4 1/4") Inches
  • Pipe or Process Connection - 1/2" Male NPT
  • Probe Conection 1/2" Female NPT Probe Connection.
    • Designed for 4 Inch Long Probes.
    • Spring Loaded Probes are recommended to ensure tip contact with the bottom of the thermowell without damaging the sensor
  • Evosensors part number:TWX-316S-250-NPT-12-12-2.5
  • Location: I-6-5

Consider the following Products to Complete your Temperature Sensing System

 Industrial RTD with Cast Iron Connection Head and Spring Loaded 4 Inch Long 1/4" Diameter Stainless Steel Probe
