Type E Thermocouple Probe 1/8" Diameter 6 Inches and Longer Long Stainless Steel Sheath Ungrounded with a Standard Size Connector

Evosensors

$72.00
SKU: E1X-S304-125-UX-6-SPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

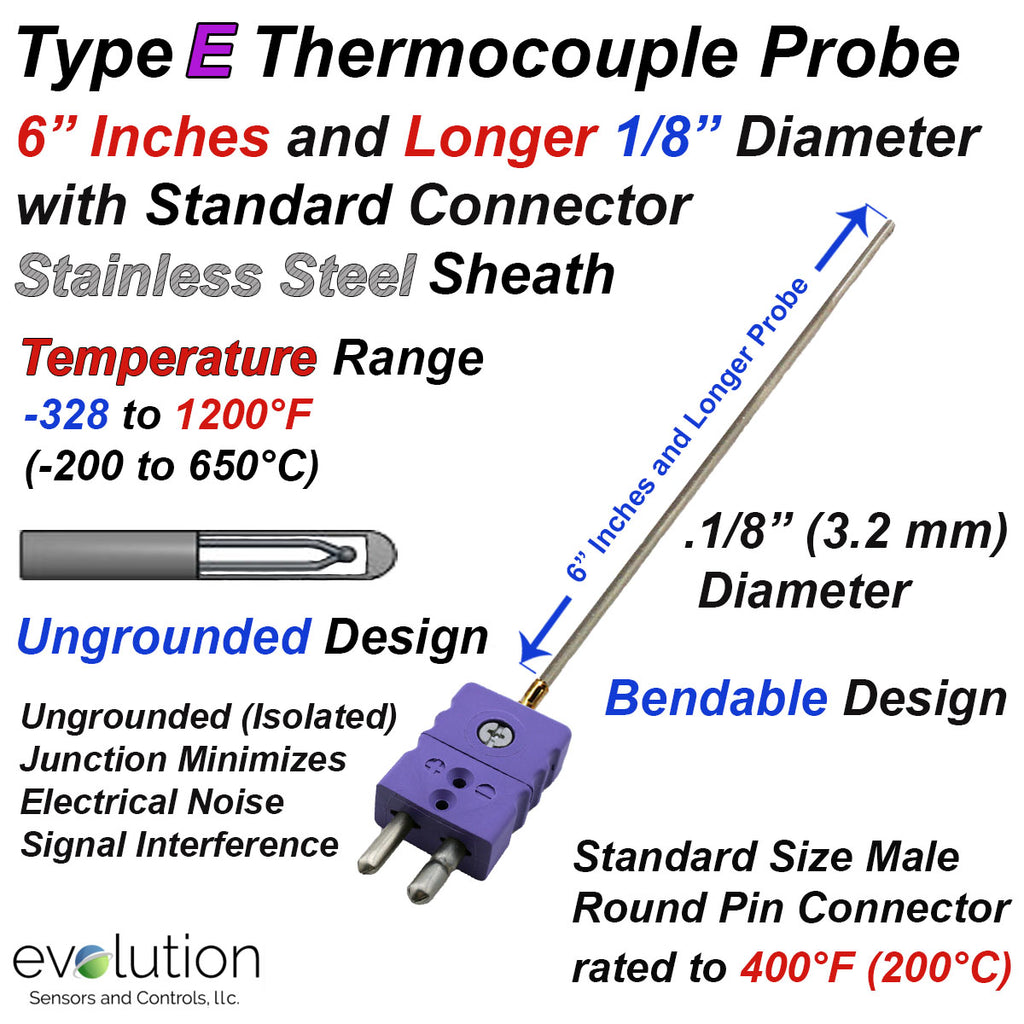

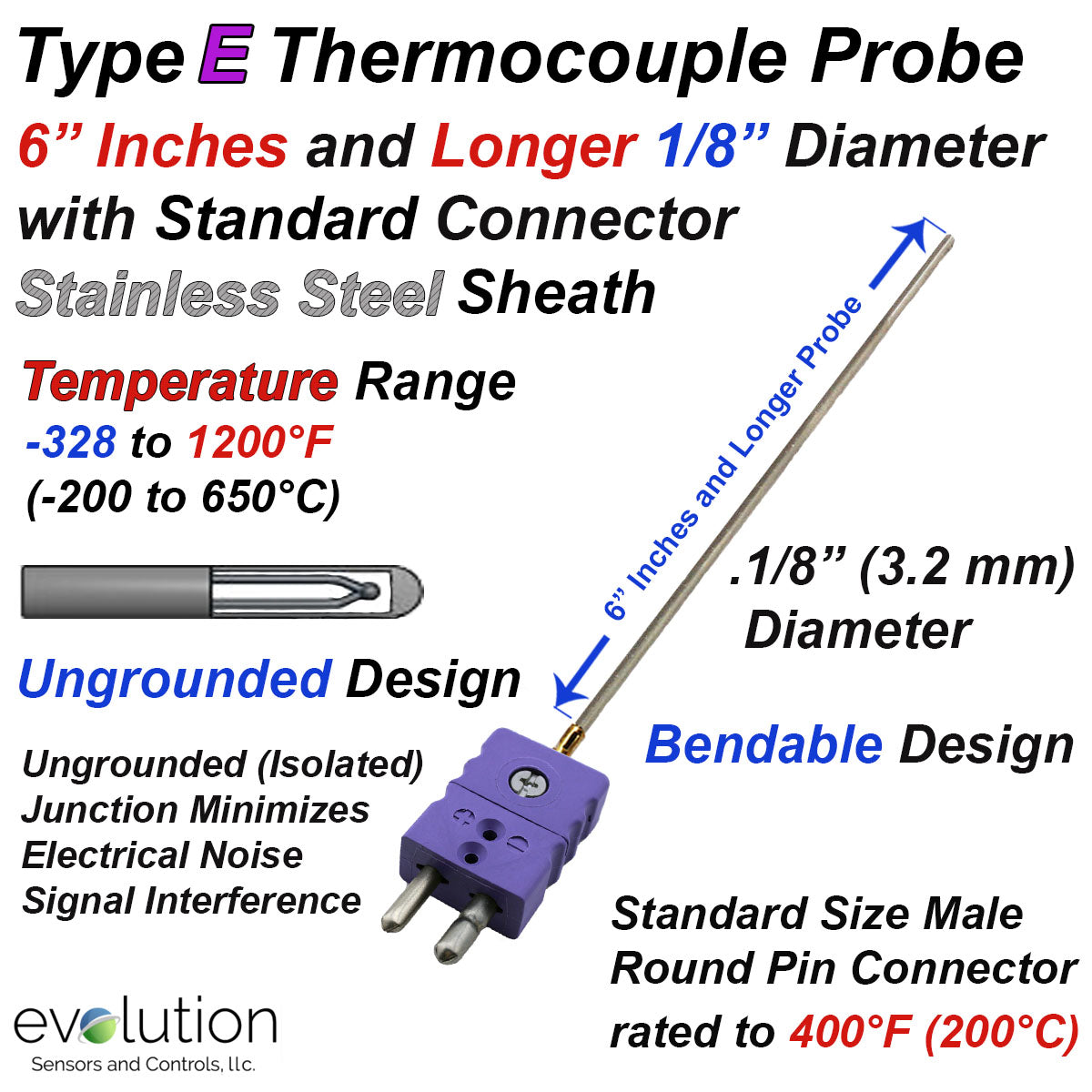

E Type Thermocouple Probe 1/8" Diameter 6 Inches and Longer with a Standard Size Male Round Pin Connector

  • Temperature Operating range -328 to 1200°F (-200 to 650°C)
  • Ungrounded Junction configuration isolates the thermocouple wires from the sheath to minimize signal errors from potential electrical interference.
  • MI Cable Design provides the ability to Form or Bend the probe to a radius equal to 2.5 times the sheath diameter without causing any damage to the temperature sensing capabilities or integrity of the metal sheath.
  • Standard Size Quick Connect - Disconnect style male round pin thermocouple connector attached for fast and easy although reliable connection to your temperature measurement instrumentation.
    • Connector Body has temperature range of -40 to 400°F (-40 to 200°C)
  • Evosensors part number: E1X-S304-125-UX-6-SPCX - 6 inch long probe
    • Location: G-3-1
  • E1X-S304-125-UX-12-SPCX - 12 inch long probe
    • Location: C-5-27
