High Temperature Glass Braided Thermocouple - Type K with 40 inches of 24 Gage S2-Glass Insulated Wire and Miniature Connector

Evosensors

$27.00
SKU: K1X-WBWX-24G-EX-0.25-HGXX-40-MPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

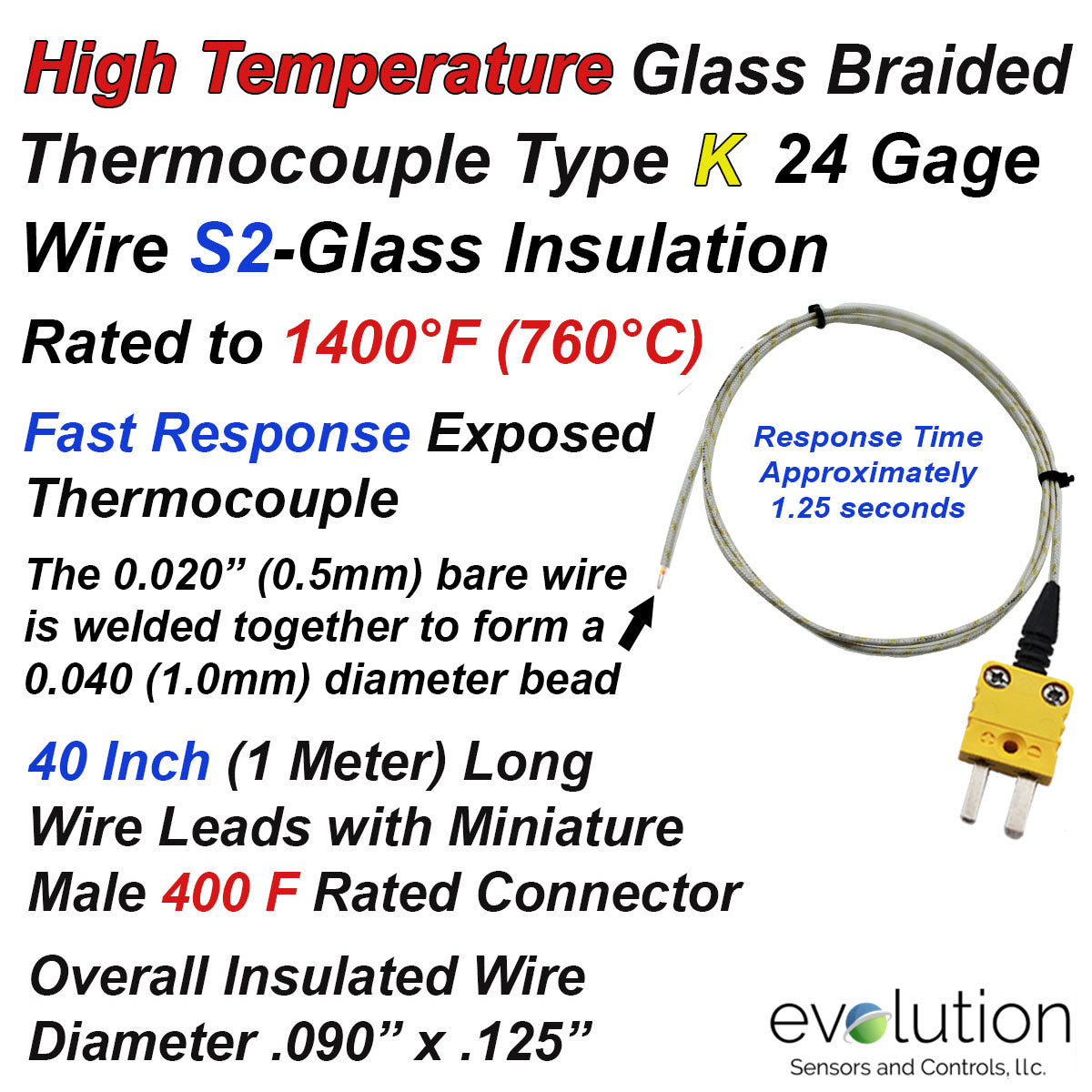

High Temperature Glass Braided Thermocouple - Type K with 40 inches of 24 Gage S2-Glass Insulated Wire and Miniature Connector

  • The Type K thermocouple sensor is an exposed welded bead design made with 40 inches (1 meter) High Accuracy SLE thermocouple grade 24 Gage wire with Fiberglass braided insulation and a miniature male thermocouple connector.
  • Exposed Thermocouple junction is 0.040" (1.0 mm) diameter and provides the opportunity for precise placement along with a Fast temperature response of approximately 1.25 seconds.
  • Temperature Operating range up to 1400°F (760°C).
  • Wire Construction is 24 gage solid 0.020" (0.5 mm) diameter bare wire in a 2 wire parallel construction. The wires individually insulated with Fiberglass along with a Fiberglass outside jacket. The overall outside diameter is  .090" x .125".
  • Industries and applications include Heat Treating, Metal Processing, Aerospace, Optics, and overall Research and Testing along with many other industries.
  • EvoSensors Part Number K1X-WBWX-24G-EX-0.25-HGXX-40-MPCX
  • Location:

Consider the following Accessories to complete your Sensor System

Miniature Thermocouple Connector Accessories Thermocouple Connectors Miniature Female Type K  Handheld Thermometer with Dual Thermocouple Inputs
