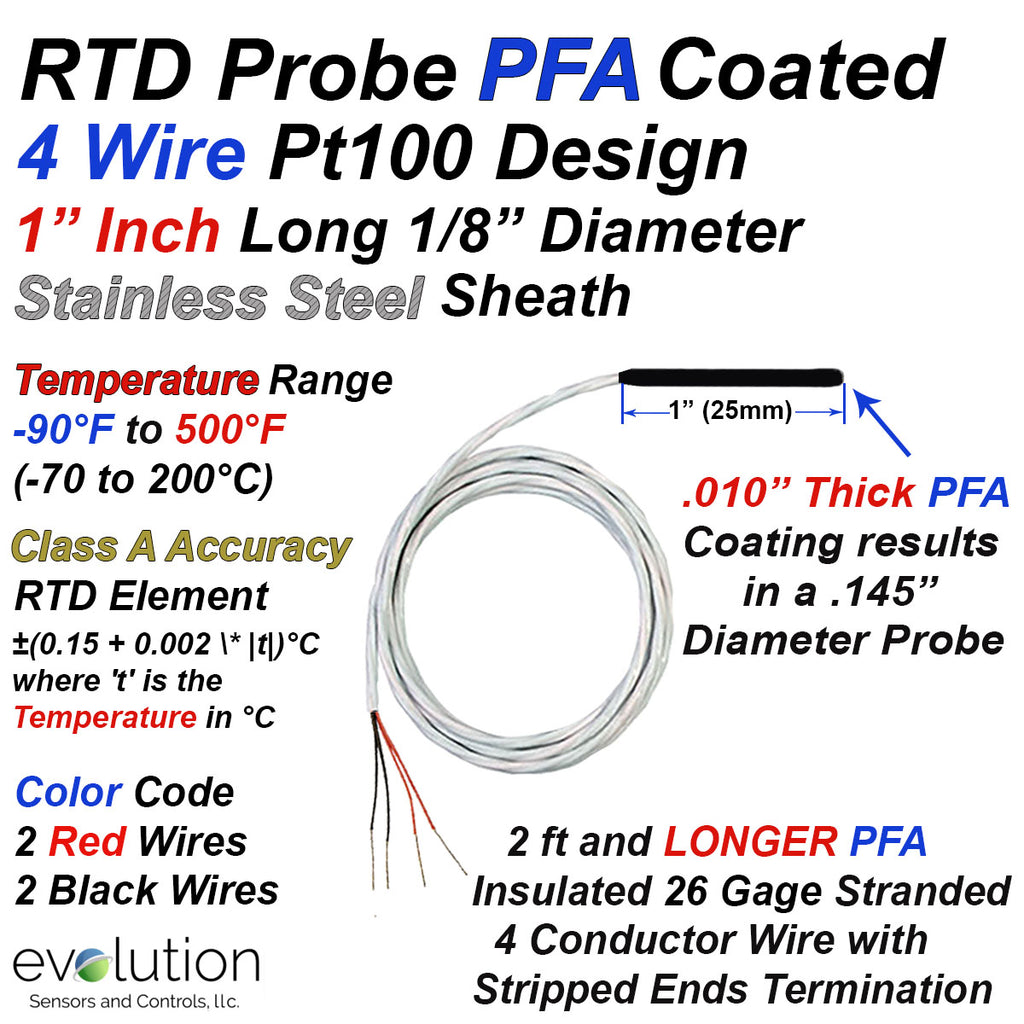

RTD Probe with PFA Coating - 4 Wire Pt100 Design with a 1 Inch Long 1/8" Diameter Stainless Steel Sheath and 7ft of Lead Wire

Evosensors

$110.00
SKU: P4A-TBSP-125-PX-1-PFXX-84-STWL

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

RTD Probe with PFA Coating - 4 Wire Pt100 Design with a 1 Inch Long 1/8" Diameter Stainless Steel Sheath and 7ft of Lead Wire

  • Temperature Operating range is -90 to 500°F (-70 to 260°C).
  • Pt100 (Platinum 100 Ohm) 4-Wire design with a Class A accuracy element (0.00385 curve.)
  • PFA Encapsulation 0.010" thick on the 1 inch Long 1/8" Stainless Steel Probe sheath provide chemical and corrosion resistance, along with increased protection for electrical interference to the temperature measurement signal.
    • Lead Wire is 7ft (84 inches) of 3 conductor 26 gage stranded with each wire and overall jacket insulated with a 500°F (260°C) rated FEP insulation.
      • The outside diameter is .098” (2.5 mm).
      • Wire Color Code is 2 Red and 2 Black with a white jacket.
    • Industry and applications in Wind Power, Aerospace, Petrochemical, Electrical Battery Technology, HVAC, Refrigeration and other industries
    • EvoSensors Part Number: P4A-TBSP-125-PX-1-PFXX-84-STWL
