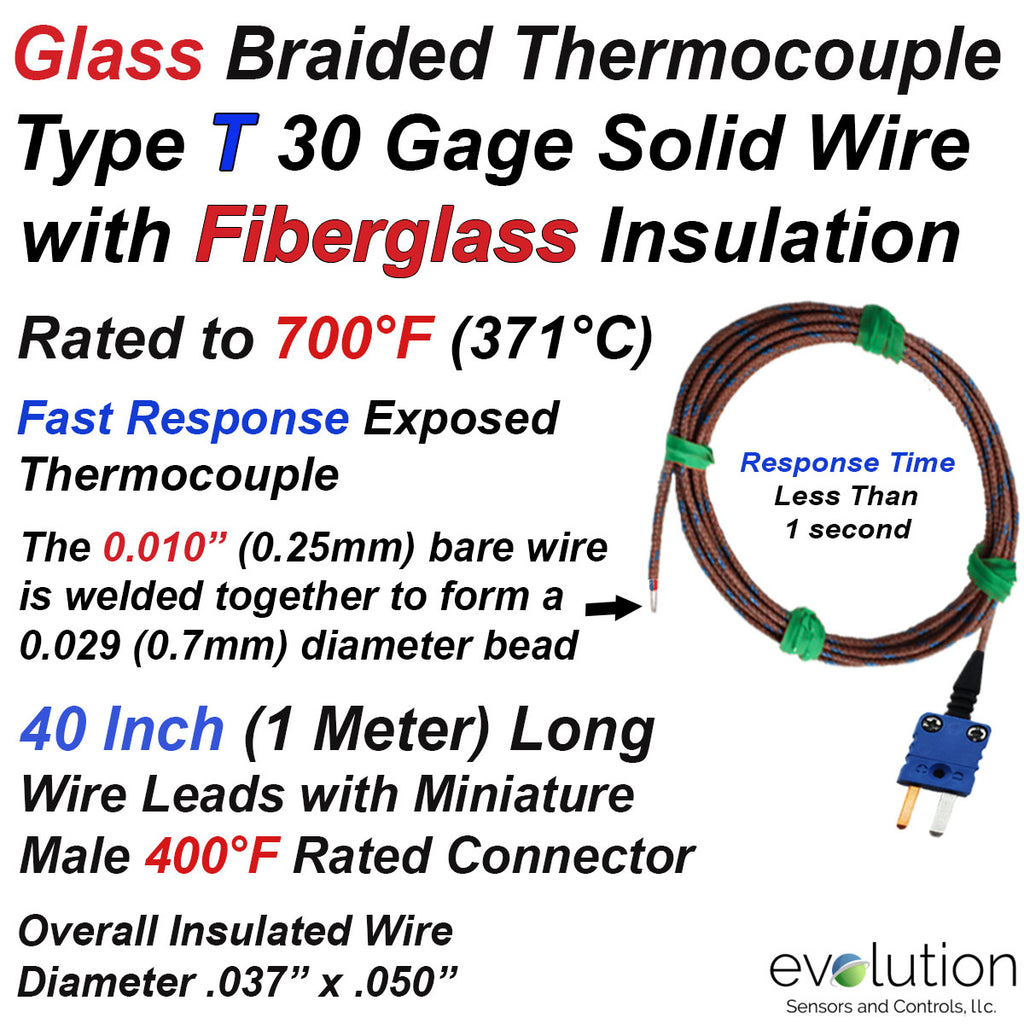

Glass Braided Thermocouple - Type T 30 Gage Fiberglass Insulated 40 inches long with Miniature Connector

Evosensors

$22.00
SKU: T1X-WBWX-30G-EX-0.25-FGXX-40-MPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

Glass Braid Insulated Type T Thermocouple provides Precise Placement and Flexibility with the 30 Gage Wire. The .030" diameter Bead Welded Tip results in a Fast Response for Temperatures up to 700°F (371°C)

  • Exposed welded bead made with High Accuracy (SLE) Type T 30 Gage wire with 40 inches (1 meter) of Fiberglass braided insulated lead wire with an attached miniature male thermocouple connector.
  • Micro-Sized thermocouple bead is 0.029" (0.7 mm) diameter (approx. thickness of credit card) and provides the opportunity for Precise Placement.
    • Fast Response Time of less than 1 Second
  • Temperature Range up to 700°F (371°C).
  • Lead Wire - 30 gage solid 0.010" (0.25 mm) bare wire is a 2 wire parallel construction with the wires individually insulated with Fiberglass Braiding along with a Fiberglass outside jacket. The overall outside diameter is a nominal .037" x .050".
  • Applications and Industries include Aerospace, Optics, and overall Research and Testing along with many other industries.
  • EvoSensors Part Number: T1X-WBWX-30G-EX-0.25-FGXX-40-MPCX
  • Location: C-4-17

Consider the following Accessories to complete your Sensor System

Miniature Thermocouple Connector Accessories Type T Miniature Female Thermocouple Connector Handheld Thermometer with Dual Thermocouple Inputs Thermocouple Wire Type T 24 Gage PFA Insulated 100 ft Long Thermocouple Connectors Miniature Panel Jack Type T
