Type E Miniature Male and Female Thermocouple Connector Set - Mating Pair

Evosensors

$10.00
SKU: E1X-MFXX-CON-FP-X-MPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

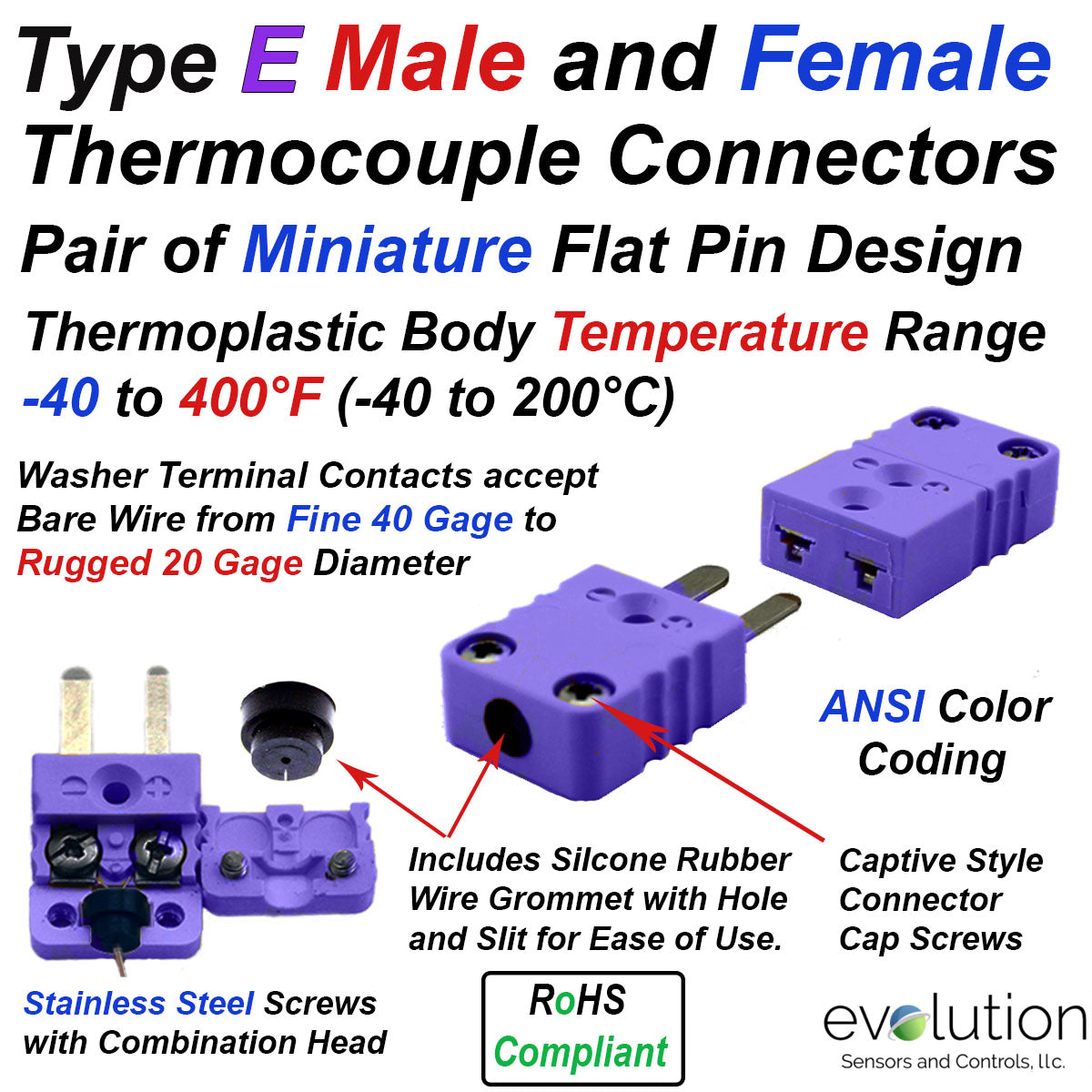

Set of Type E Miniature Male and Female Thermocouple Connectors - Thermoplastic Design

  • The Type E miniature thermocouple connectors are a rugged unibody molded design made from high quality glass filled Engineered Thermoplastic material. RoHS Compliant
  • Temperature Range of the thermoplastic body is -40 below zero to 400°F (-40 to 200°C.
    • Connectors can accurately transfer the full temperature range of Type E thermocouples
  • Flat Pins are made with Type K thermocouple alloys. Larger width Negative constantan and smaller width Positive nickel chrome pin ensures proper connection with mating female connectors.
  • Washer Style contact terminals provides an easy to use although secure thermocouple wire connection point for wire sizes ranging from fine diameter 40 gage and up to rugged 20 gage. A molded internal barrier prevents short circuits.
  • Stainless Steel screws with a Combination Head Design accepting both Slotted and Phillips head screwdrivers. Captive style connector cap screws provide ease of assembly and eliminates the frustration of dropping or losing screws.
  • EvoSensors part number: E1X-MFXX-CON-FP-X-MPCX
  • Location:
 Consider the following Accessories to Complete your Connector System

Type E Miniature Male and Female Mating Pair Thermocouple ConnectorsType E Miniature Connector AccessoriesType E Thermocouple Wire Fine Diameter 30 Gage with PFA Insulation
