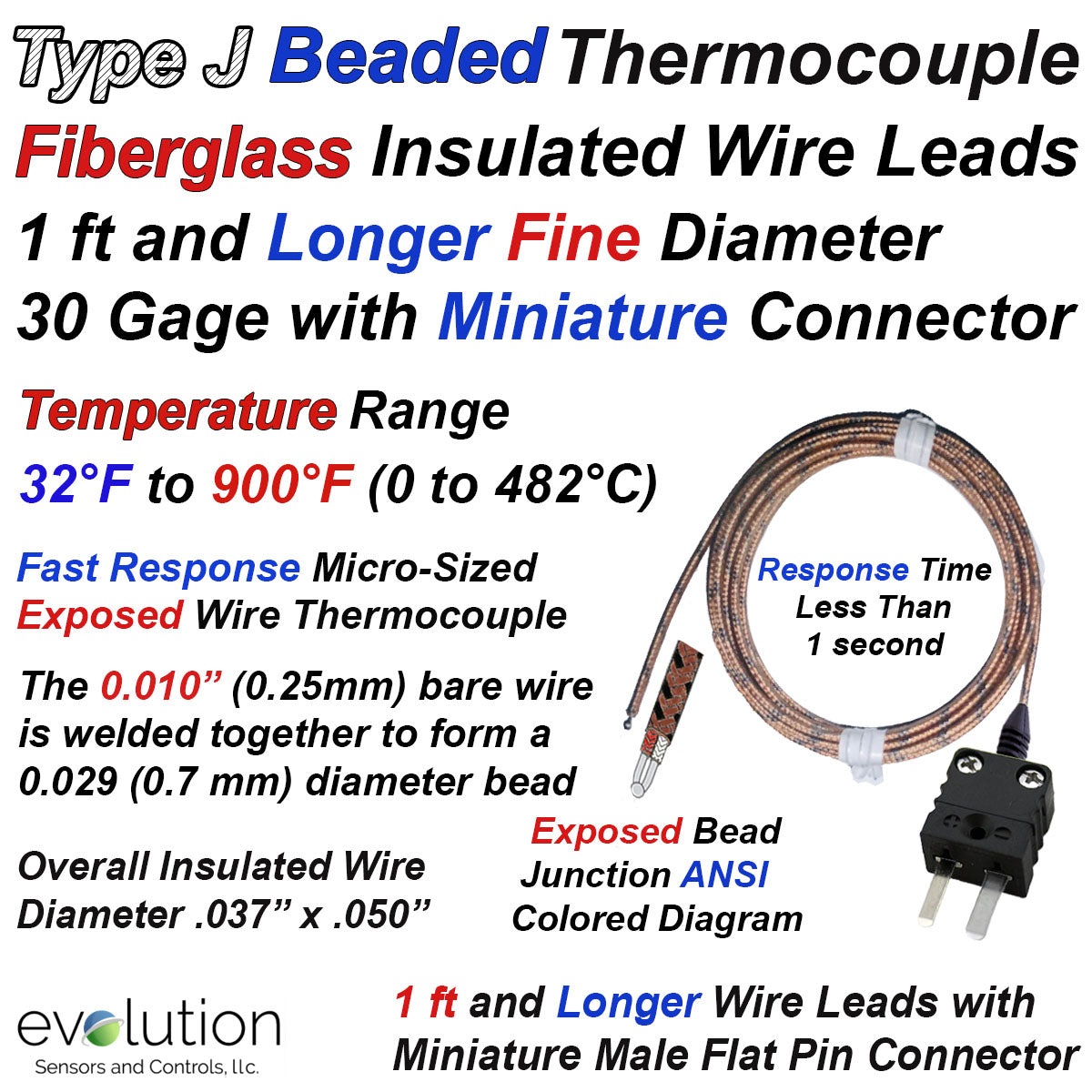

Type J Beaded Thermocouple Fiberglass Insulated Wire Leads 1 ft and Longer Fine Diameter 30 Gage with Miniature Connector

Evosensors

$24.00
SKU: J1X-WBWX-30G-EX-0.25-FGXX-12-MPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

Type J Beaded Thermocouple Fiberglass Insulated Wire Leads 1 ft and Longer Fine Diameter 30 Gage with Miniature Male Connector

  • Temperature Range 32 to 900°F (0 to 482°C)
  • Thermocouple Junction is a fast response Exposed welded bead design
  • Micro-Sized thermocouple bead is 0.029" (0.7 mm) diameter (approx. thickness of credit card)
    • 1 second or less response time and provides the opportunity for precise placement
  • Wire Leads are 30 gage solid 0.010" (0.25 mm) bare wires in a 2 wire parallel construction with the wires individually insulated with Fiberglass Braiding along with a fiberglass braid overall jacket.
    • The overall outside diameter is a nominal .037" x .050".
    • ANSI color code - white positive, red negative with a brown jacket and black stripe overall jacket
  • Instrument Connector: miniature male flat pin connector with a -40 to 400°F (-40 (200°C) rated thermoplastic body.
    • Connector can accurately transfer the full range of Type J thermocouples
  • EvoSensors Part Number: J1X-WBWX-30G-EX-0.25-FGXX-80-MPCX with 80 Inch (2 Meters or 6.6 Ft Long Wire Leads
    • J1X-WBWX-30G-EX-0.25-FGXX-40-MPCX with 40 Inch (1 Meter or 3.3 Ft Long Wire Leads
