Type K Dual Thermocouple Probe 6 Inches Long 1/8" Diameter Stainless Steel Sheath Grounded with a Dual Miniature Connector

Evosensors

$104.00
SKU: K2X-S304-125-GX-6-MDCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

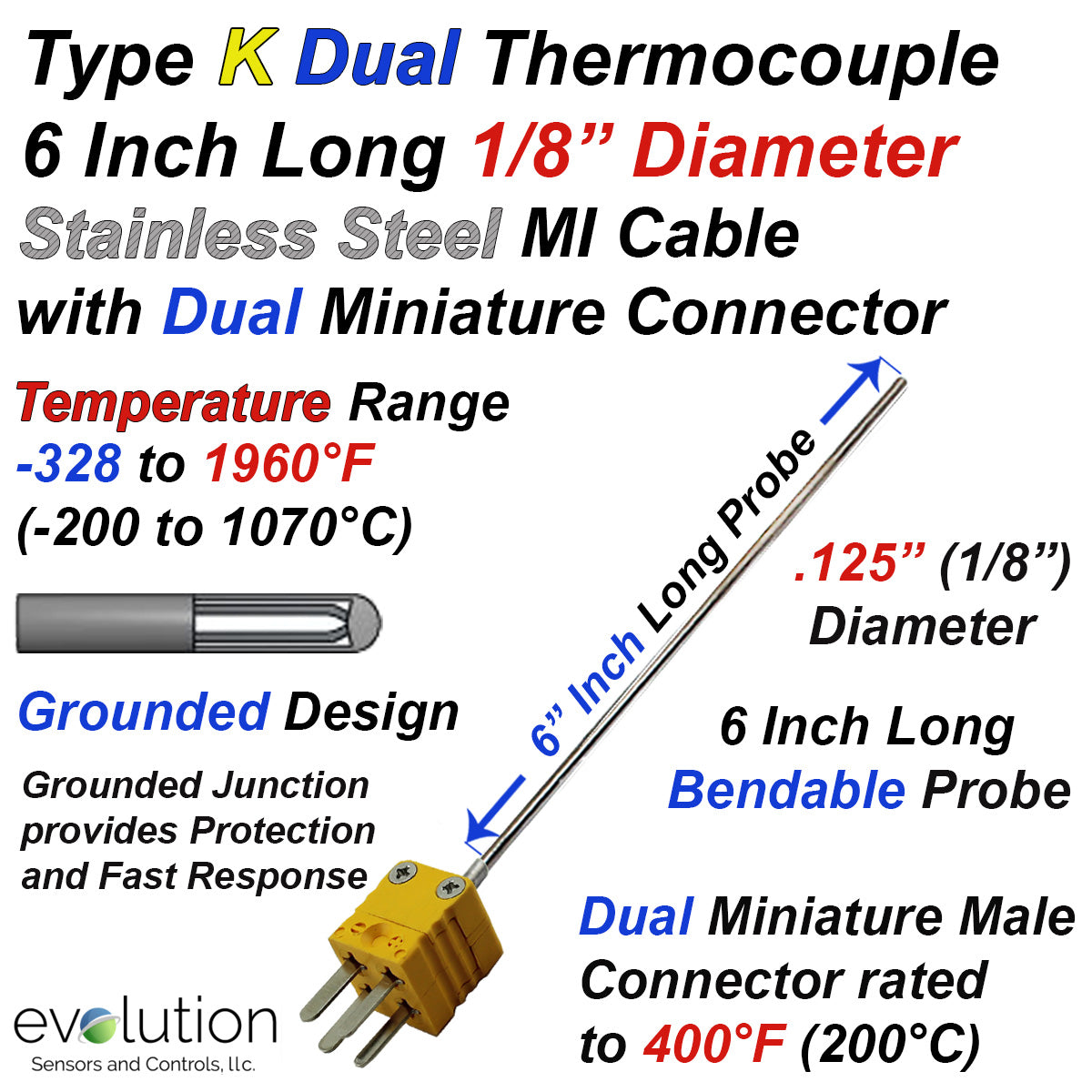

Type K Dual Thermocouple Probe with a 1/8" Diameter 6 Inch Long Stainless Steel Sheath Grounded and Dual Miniature Male Connector

  • 2 individual temperature measurement circuits within 1 probe with a fast and easy connection.
  • Temperature Operating range of -200 to 1,960°F (-128 to 1070°C)
  • Stainless Steel Sheath MI Cable design 6 inches long and 1/8" (.125") diameter.
    • MI Cable design provides the ability to Form or Bend the probe to a radius equal to 2.5 times the sheath diameter without causing any damage to the temperature sensing capabilities or integrity of the metal sheath.
  • Grounded Design, meaning the thermocouple wires are attached to tip of the metal probe sheath providing protection and fast response
  • Instrument Connection - Dual miniature thermocouple connector provides quick connection capabilities and has an upper temperature limit of 400°F (200°C)
  • EvoSensors Part number: K2X-S304-125-GX-6-MDCX
  • Location: E-5-8
