Type K Thermocouple Probe 4 to 10ft Long 1/16" Diameter Inconel Sheath Ungrounded with Standard Size Male Connector

Evosensors

$78.00
SKU: K1X-IN60-062-UX-48-SPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

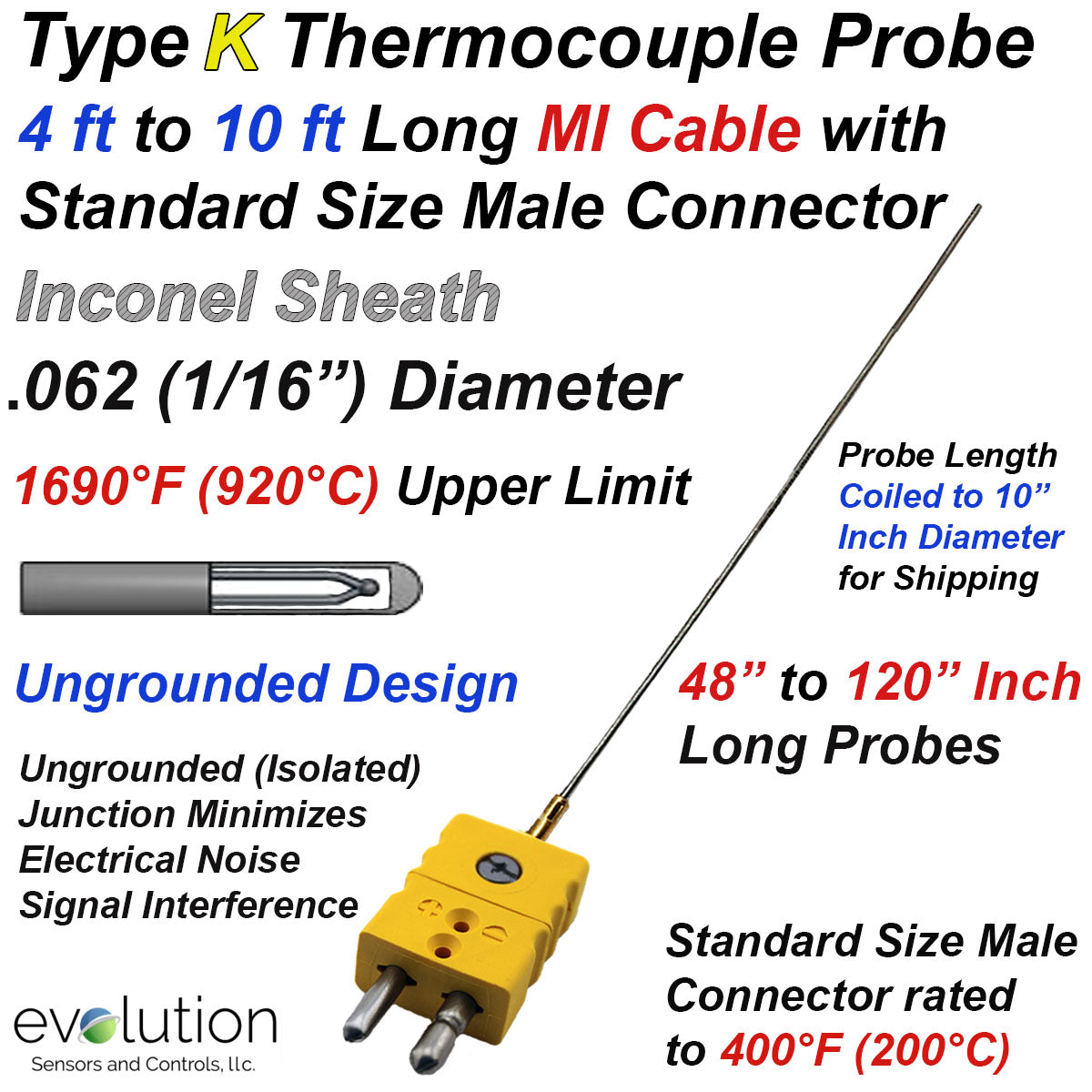

4 ft to 10 ft Long 1/16" Diameter Type K Inconel Sheathed Thermocouple Probe with Standard Size Connector.

  • Type K Thermocouple Probe has a 1/16" Diameter Inconel Sheath with a Standard Size Connector for quick connection capabilities.
    • The probe is coiled for shipping purposes
  • Upper Temperature Limit recommended by ASTM and IEC for a 1/16" diameter type K sheathed thermocouple probe is approximately 1,650°F (900°C).
  • MI Cable Design provides the ability to Form or Bend the probe to a radius equal to 2.5 times the sheath diameter without causing any damage to the temperature sensing capabilities or integrity of the metal sheath.
  • Ungrounded (Isolated) thermocouple junction from the sheath to Minimize potential Signal Interference from electrical noise
  • Instrument Connection - Standard Size Male Round Pin Connector
    • Thermoplastic connector body has a range of -40 to 400°F (-40 to 200°C)
    • Connector can accurately transfer the full temperature range of Type K Thermocouples
  • EvoSensors Part Number  K1X-IN60-062-UX-( )-SPCX
    • Insert length in Inches from 48 to 120 in ( )
    • Part number K1X-IN60-062-UX-48-SPCX has a 48inch long (4ft) Inconel sheath. Location F-3-2
    • K1X-IN60-062-UX-80-SPCX Location G-2-3 - coiled
    • K1X-IN60-062-UX-96-SPCX Location B-6-14 - coiled
    • K1X-IN60-062-UX-120-SPCX Location G-2-1 - coiled
    • K1X-IN60-062-UX-100-SPCX Location G-2-2 - coiled

Consider the following Accessories to complete your Sensor System

Type K Standard Size Female Thermocouple Connector  Thermocouple Wire Type K 24 Gage PFA Insulated 100 ft LongThermocouple Adapter Type K Connector- Accepts Standard Size Round Pin Male and Converts to Miniature Flat Pin Male
