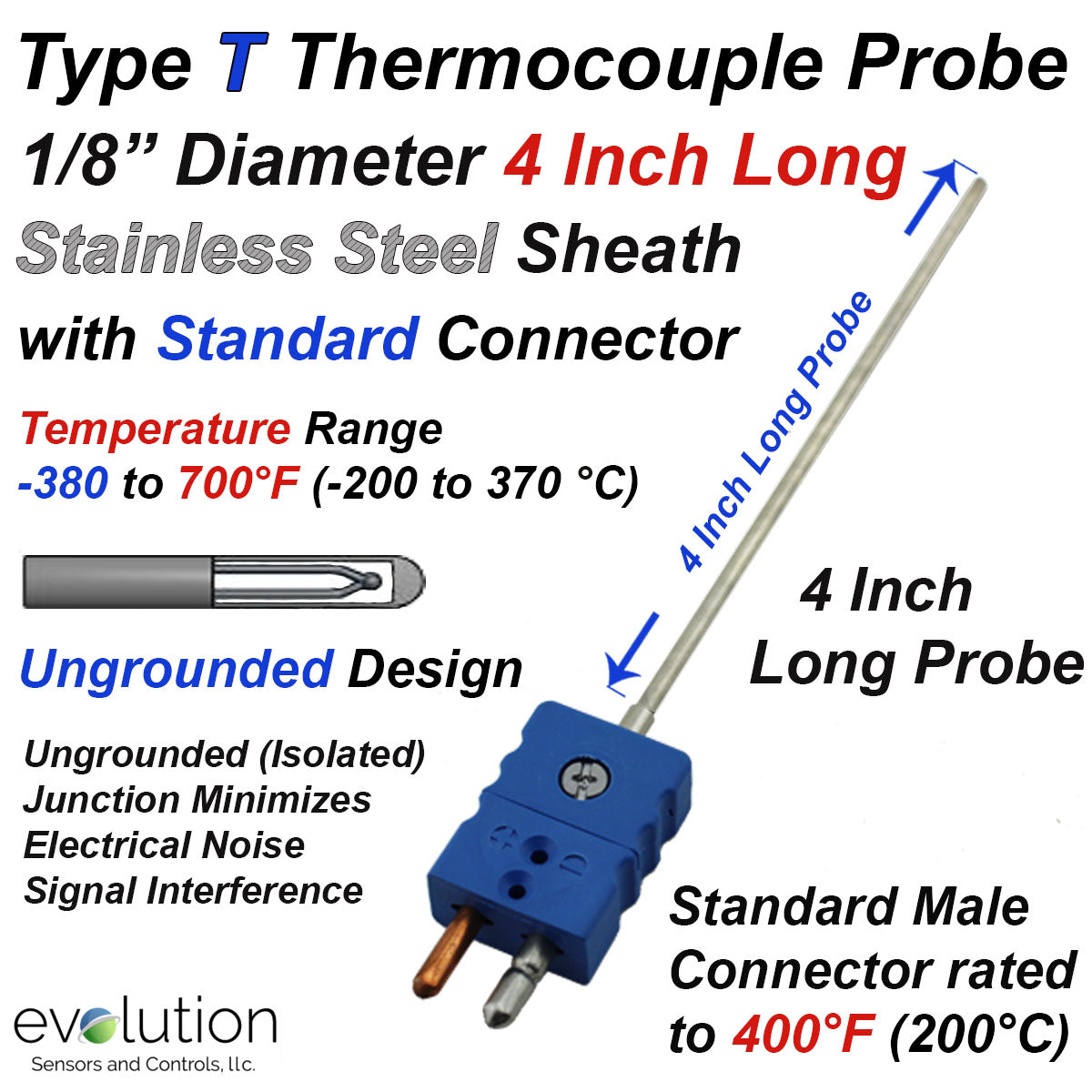

Type T Thermocouple Probe 4 Inches Long 1/8" Diameter Stainless Steel Sheath with Ungrounded Junction and Standard Connector

Evosensors

$72.00
SKU: T1X-S304-125-UX-4-SPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

Type T Thermocouple Probe 1/8" Diameter Stainless Steel Sheath with Standard Size Quick Connect/Disconnect Connector

  • Temperature Range is -380 to 700°F (-200 to 370°C)
  • Ungrounded Thermocouple the thermocouple junction is solated from the metal sheath of the probe and provides protection from electric interference of the temperature signal or voltage spikes to the instrumentation.
  • Stainless Steel sheath probe 1/4" (.250" or 6.35 mm) diameter backfilled with high purity compacted mineral insulation to provide good thermal stability.
    • Bendable MI Cable design with a maximum bend radius of 2.5 to 3 times the diameter of the sheath
  • Instrument Connection - standard size round pin Type T male connector with the thermoplastic connector body capabable of operating in a -40 to 400°F (-40 to 200°C) environment
    • The connector can accurately transfer the full temperature range of Type T thermocouples
  • EvoSensors Part Number: T1X-S304-125-UX-4-SPCX
  • Location: G-3-15

Consider the Following Products to Complete your Sensor System

Type T Thermocouple Connectors Standard Size Female Standard Thermocouple Connector Accessories T Type Thermocouple Wire 24 Gage PFA Insulated 100 ft Long
