Miniature Infrared Temperature Sensor and Display with 2 to 1 or 22 to 1 Distance to Spot Size

Miniature Non-Contact Infrared Temperature Sensor and Display

One of the Smallest Infrared Sensing Head in the industry with an optical distance to spot size of 2 to 1, 15 to 1, or 22 to 1, along with other opitons.

• Temperature Measurement range negative – 58°F to 1787°F (-50°C to 975°C).
• Ambient Temperatures for the the sensing head is negative -4°F to 356°F (-20°C to 180°C) without additional cooling.

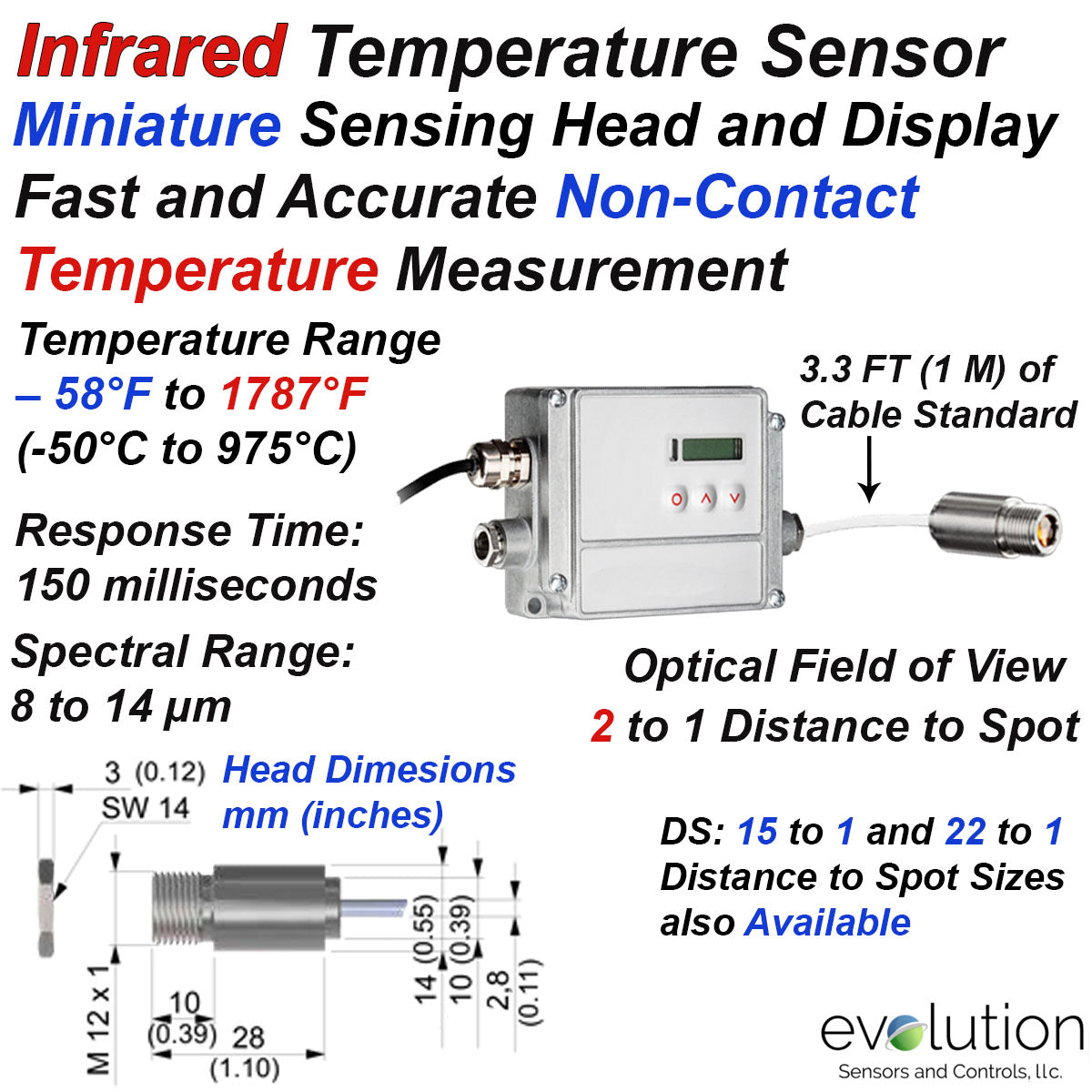

• Sensing Head Dimensions - the stainless steel Miniature Head is one of Smallest in the industry with a length of 1.5" (38 mm) packaged in a .550" (14 mm) diameter with a 3.3 ft (1 M) long connection cable.
• Fixed Mounting is accomplished with an integral .390" (10 mm) long threaded section with a M12 x 1 thread. A mounting nut is included and optional mounting brackets are available.
• Control and Programming - the electronic display provides basic control functions and the optional IRT-CSMLT-APCC Programming USB Kit -Compact Connect Software can provide Extensive Process Control and Data Collection Options.
• Basic Specifications
• Optical Field of View is 2 to 1, 15 to 1, or 22 to 1 Distance to Spot Size with a spectral range of 8 to 14 µm. Other DS: options are 15 to 1.
• Response time (90%) ranges from 150 milliseconds and is adjustable up to 999 seconds.
• System Accuracy is +/- 1% or +/ - 1.8°F (0.5°C)
• Repeatability +/- 0.5 % or 0.9 °F (0.5 °C)
• Applications - Non-Contact Temperature Measurement for many Machine Builders in diverse industries such as Automation, Paper and Pulp, Electronics, Automotive, Materials, Medical and Energy along with many others.
• EvoSensors Part Number: IRT-MS-LT02 with 2 to 1 Distance to Spot Size
• IRT-MS-LT22 with 22 to 1 Distance to Spot Size
• Click for Product Data Sheet in PDF
• Click for Product Manual
