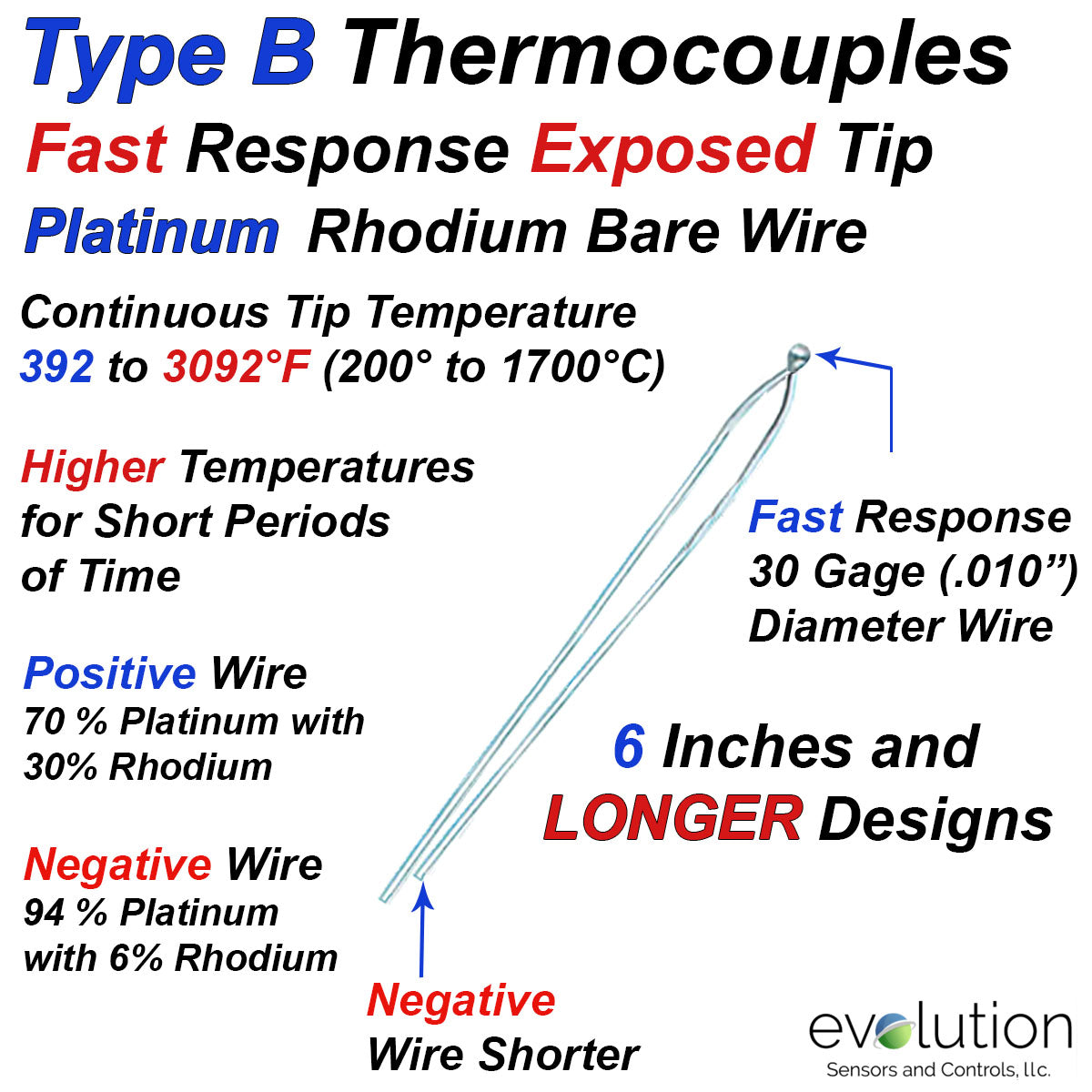

Type B Thermocouples - Fast Response Exposed Bead Bare Wire Design - 30 Gage (.010") Small Diameter Wire 6 to 24 Inches Long
  • Continuous Temperature operating range from 392 to 3092°F (200 to 1700°C) at the exposed wire tip.
    • Short Term temperature measurement up to 3362°F (1850°C)
    • Type B thermocouples provides the highest temperature measurements in Air and Oxidizing environments of all the thermocouple types.
  • Exposed Bead fast response bare wire thermocouple junction provides exceptional Fast temperature measurement response time.
    • Sensor Length is 6 to 24 inches long with 30 gage .010 inch (0.25 mm) diameter bare wire.
    • Instrument Connection: bare wire leads
    • EvoSensors part number: B1X-WBWX-30G-EX-BWXX-6 with 6 inch long leads
      • B1X-WBWX-30G-EX-BWXX-12 with 12 inch long leads
