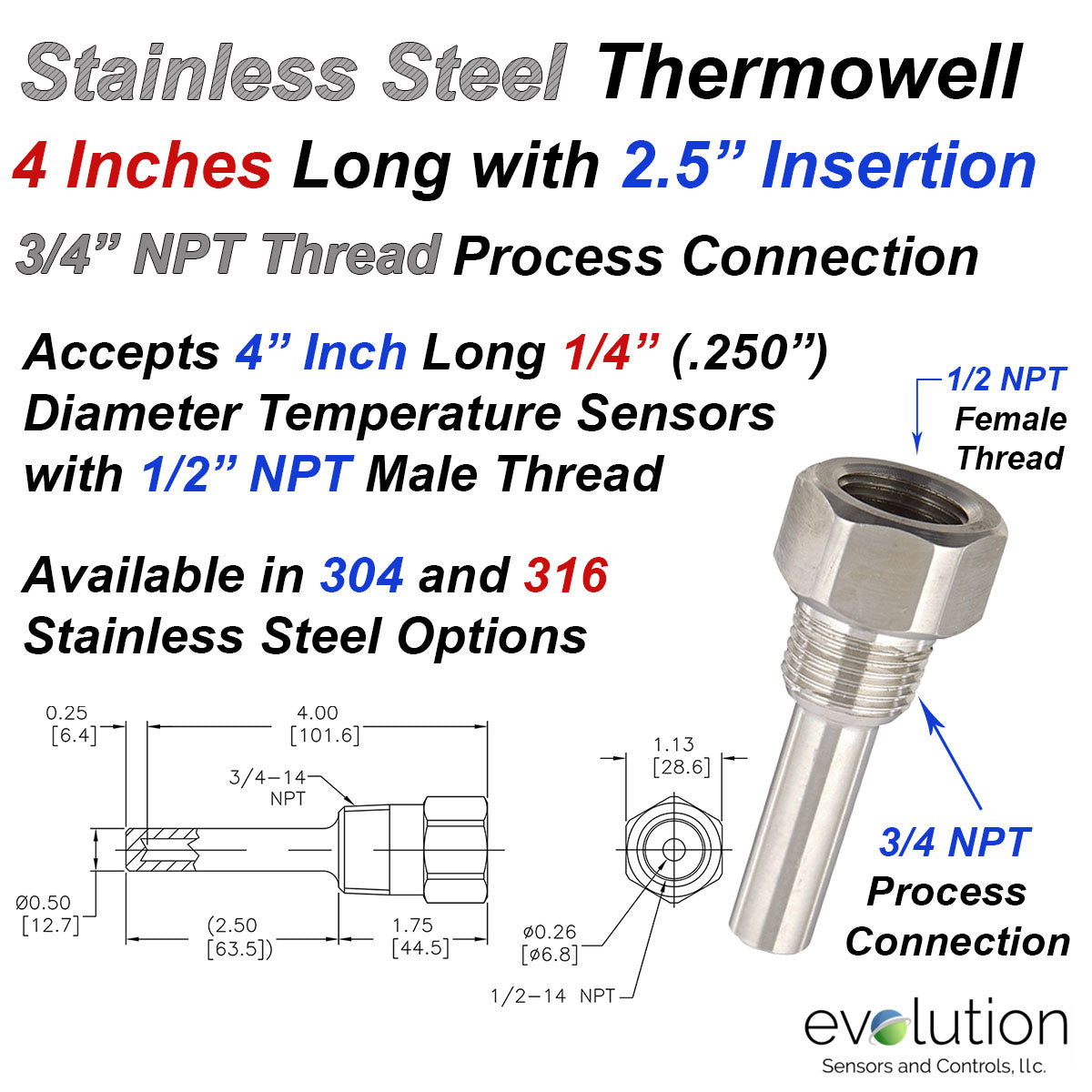

Stainless Steel Thermowell 4 Inch Long 2.5 Inch Insertion Depth with 3/4" NPT Threads for Process Connection and 1/2 NPT for 1/4" Diameter Probes

Stainless Steel Thermowell 4 Inch Long 2.5 Inch Insertion Depth with 3/4" NPT Threads for Process Connection and 1/2 NPT for 1/4" Diameter Probes. Available in 304 or 316 Stainless Steel

• Solid Machined 316 or 304 Stainless Steel Body
• Insertion Depth - 2.5 inches wtih Overall Length 4.25" (4 1/4") Inches
• Pipe or Process Connection - 3/4" Male NPT
• Probe Conection 1/2" Female NPT Probe Connection.
  • Designed for 4 Inch Long Probes.
  • Spring Loaded Probes are recommended to ensure tip contact with the bottom of the thermowell without damaging the sensor
• Evosensors part number: TWX-316S-250-NPT-12-34-2.5 - 316 Stainless Steel
  • Location: J-2-7
• TWX-304S-250-NPT-12-34-2.5 - 304 Stainless Steel
  • Location: J-1-1
