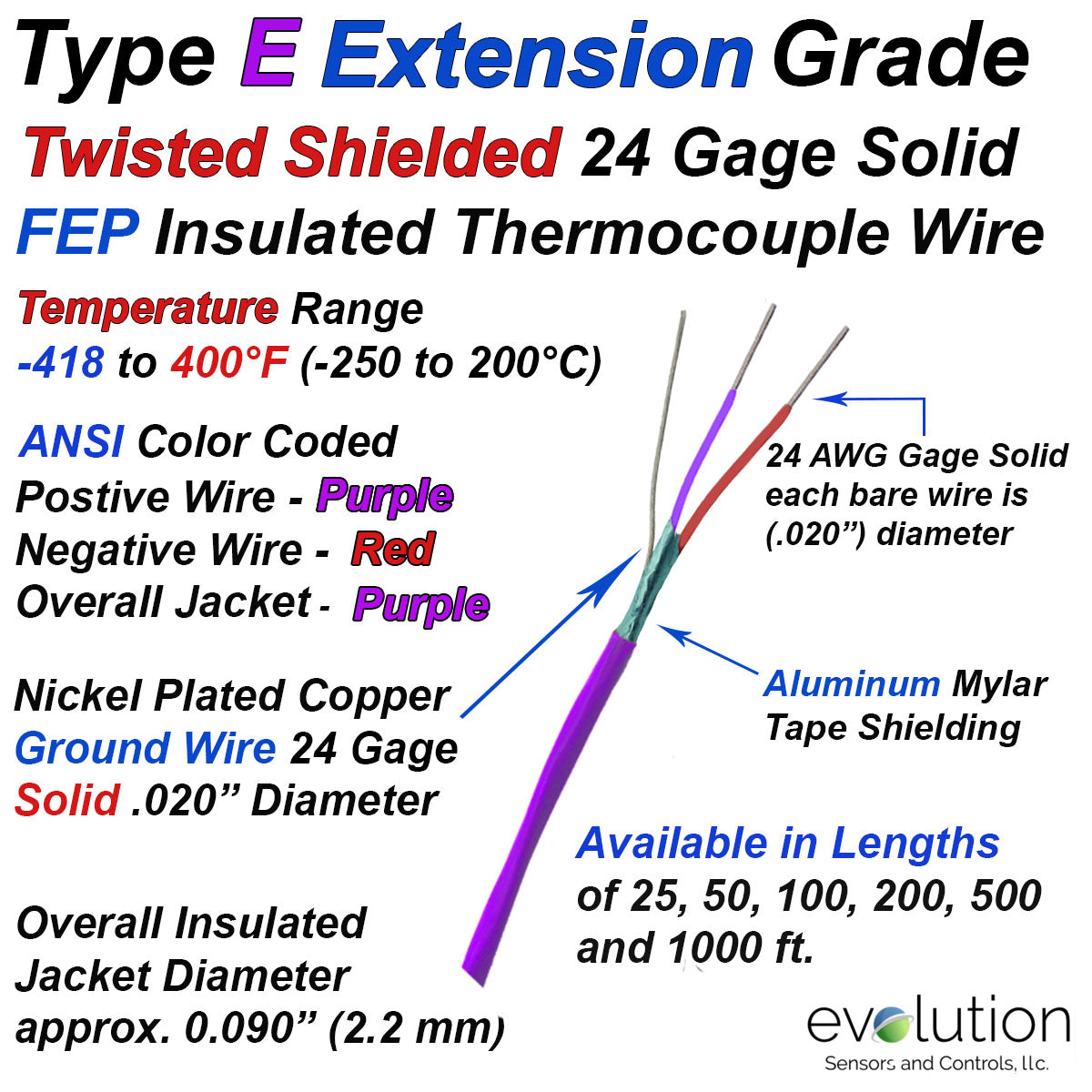

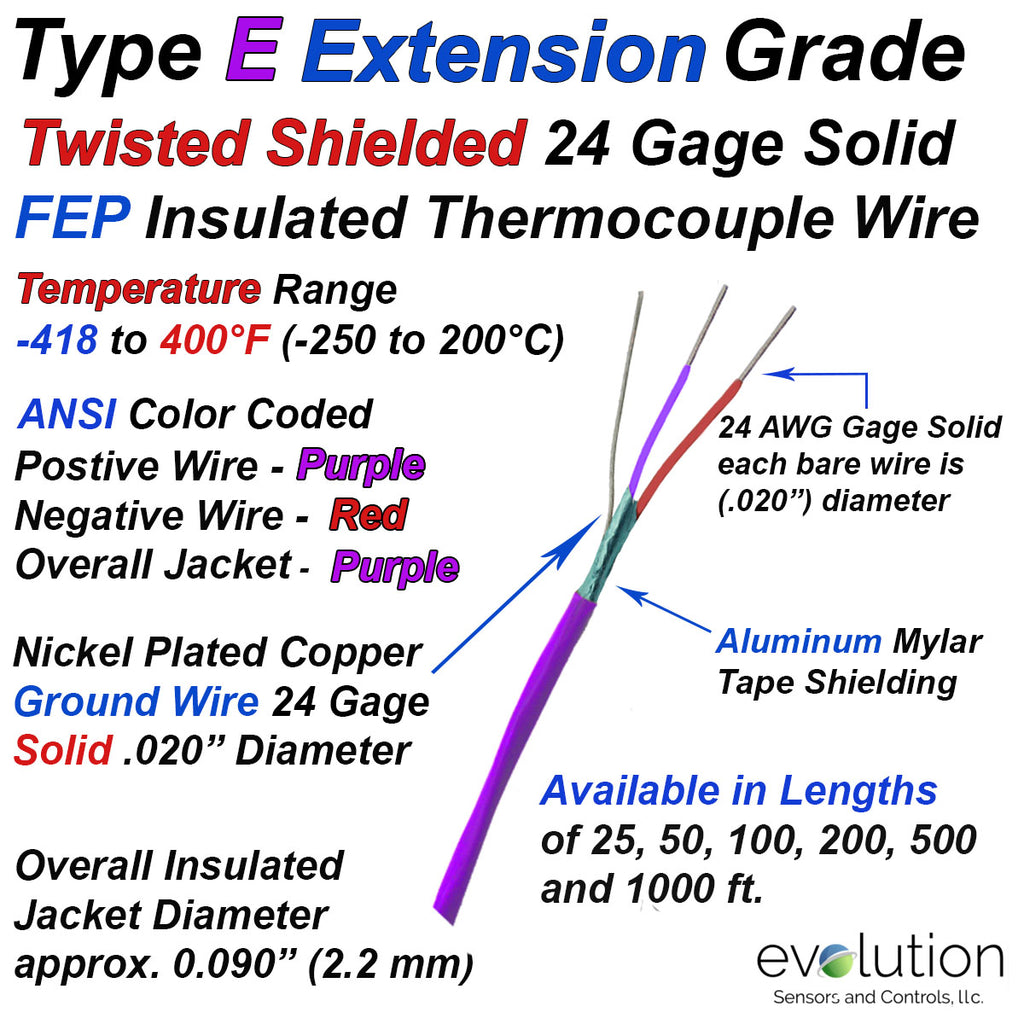

Extension Grade Type E Twisted Shielded 24 Gage Solid FEP Insulated Thermocouple Wire

Type E Extension Grade Twisted Shielded 24 Gage Solid Thermocouple Wire with FEP Insulation

• Temperature Range is -418 to 400°F (-250 to 200°C)
• Extension-Grade thermocouple wire ensures the temperature signal is carried accurately from the sensor to your instrumentation
• Twisted Shielded thermocouple wire design to minimize electrical interference to a Type E thermocouple signal.

• 24 Gage (.020") solid thermocouple wire with a Twisted construction.
  • Aluminum Mylar shielding is wrapped over the 2 internal FEP insulated wires.
  • Ground Wire is 24 gage solid nickel plated copper and it is in contact with shield to provide additional grounding options
  • FEP Insulation on the 2 individual thermocouple wires and the outside jacket with a maximum temperature range of 400°F (200°C) rating and approx. 0.090" overall maximum dimension
• Color Code - ANSI with Purple Positive leg and Red Negative  leg. The overall outside jacket is Purple

• Thermocouple Alloy Composition: Type E thermocouples consist of a positive nickel-chromium (NiCr) wire and a negative constantan (copper-nickel) wire.
• Available Lengths are 25, 50, 100, 200 and 500, and 1000 foot.

• Part number: E1E-FPTS-24G-(enter standard number of feet)FT
  • Part number example E1E-FPTS-24G-100FT
