Epoxy Coated Junction Type T Thermocouple Flexible 30 Gage Solid Wire with Miniature Male Connector

Evosensors

$20.00
SKU: T1X-WBWX-30G-EE-0.25-PFXX-40-MPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

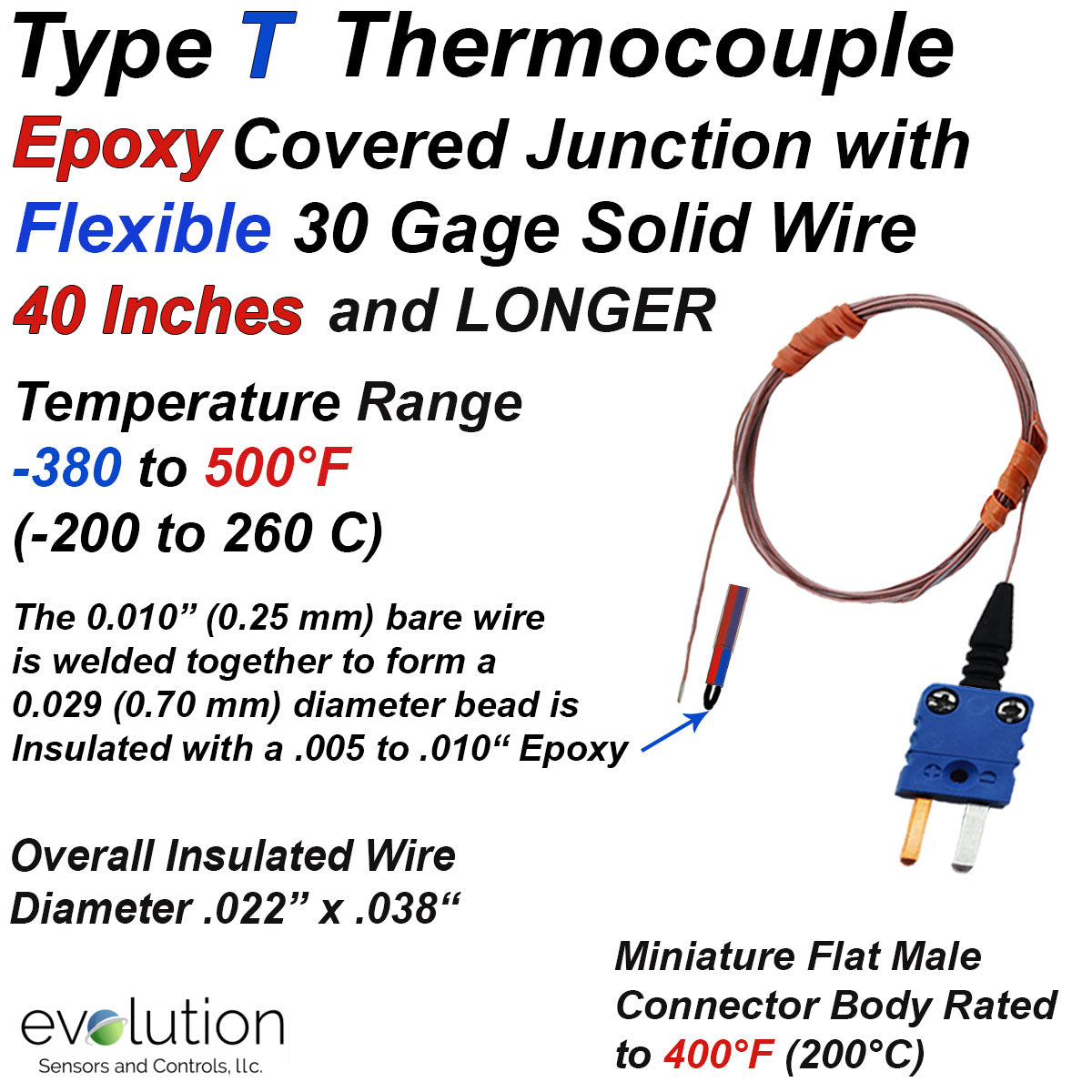

Epoxy Coated Junction Type T Thermocouple Flexible 30 Gage Solid Wire with Miniature Male Connector

  • Temperature Operating range of -380 to 500°F (-200 to 260°C)
  • Thermocouple junction is Epoxy coated
  • Wire Leads are 40 Inches (3.3 ft or 1 Meter) and LONGER
  • Wire Construction is flexible 30 gage solid 0.010" (0.25 mm) bare wire with a 2 wire parallel construction. Each wire is individually insulated with PFA (Plastic Fluoropolymer) along with a PFA overall jacket jacket.
    • The overall outside diameter is a nominal .022" x .038
  • Color Code is ASNI with a blue positive, red negative and clear overall
  • Instrument Connection is a miniature male flate pin thermocouple connector body rated to 400°F (200°C) and capable of accurately transferring the full range of Type T thermocouples.
  • Excellent Low Temperature capabilities and accuracy for Semi-Conductor, Electronics, Life Sciences, Aerospace, Optics, and overall Research and Testing along with many other industries.
  • EvoSensors Part Number: T1X-WBWX-30G-EE-0.25-PFXX-40-MPCX
