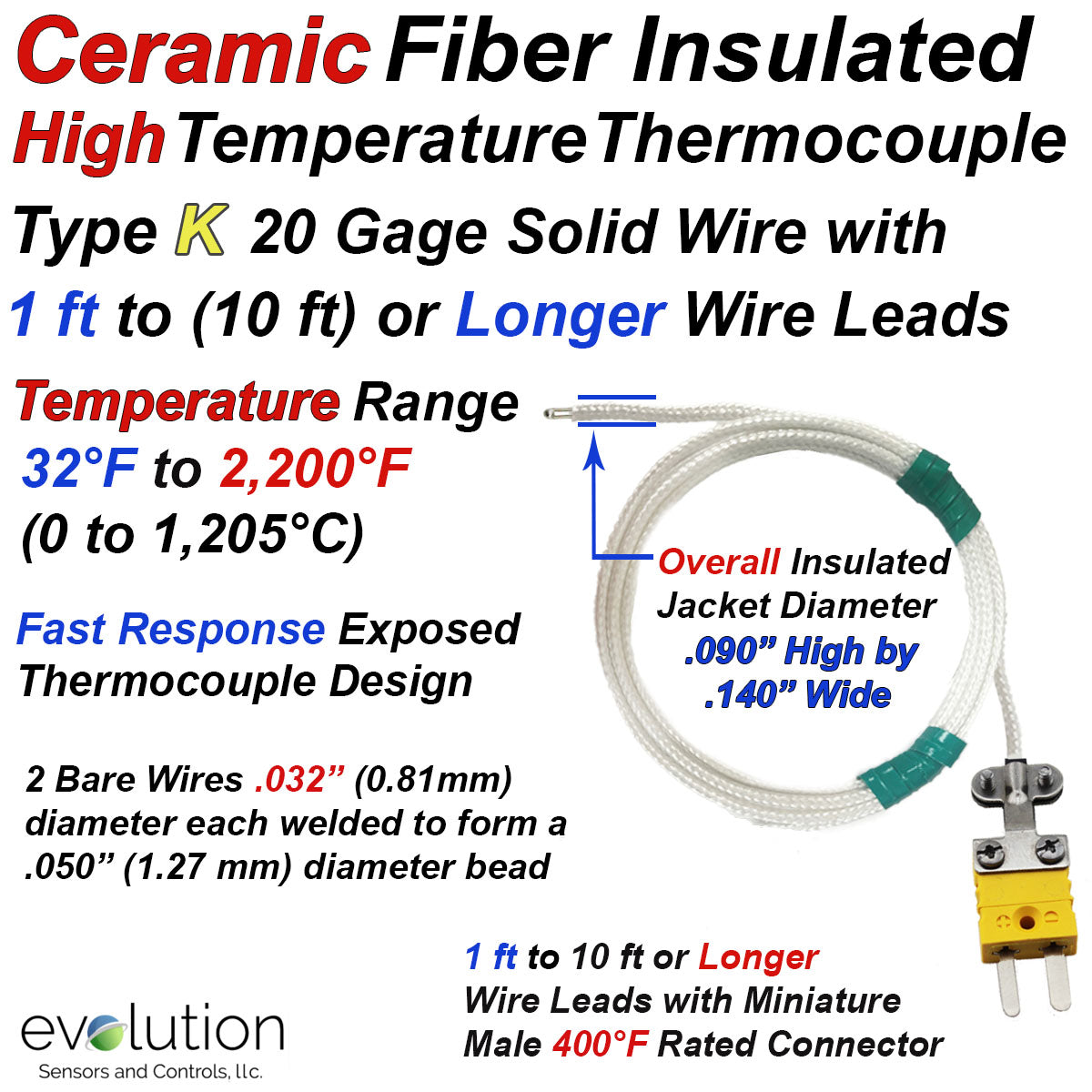

High Temperature Ceramic Fiber Insulated Thermocouple with Type K 20 Gage Wire and Miniature Male Connector

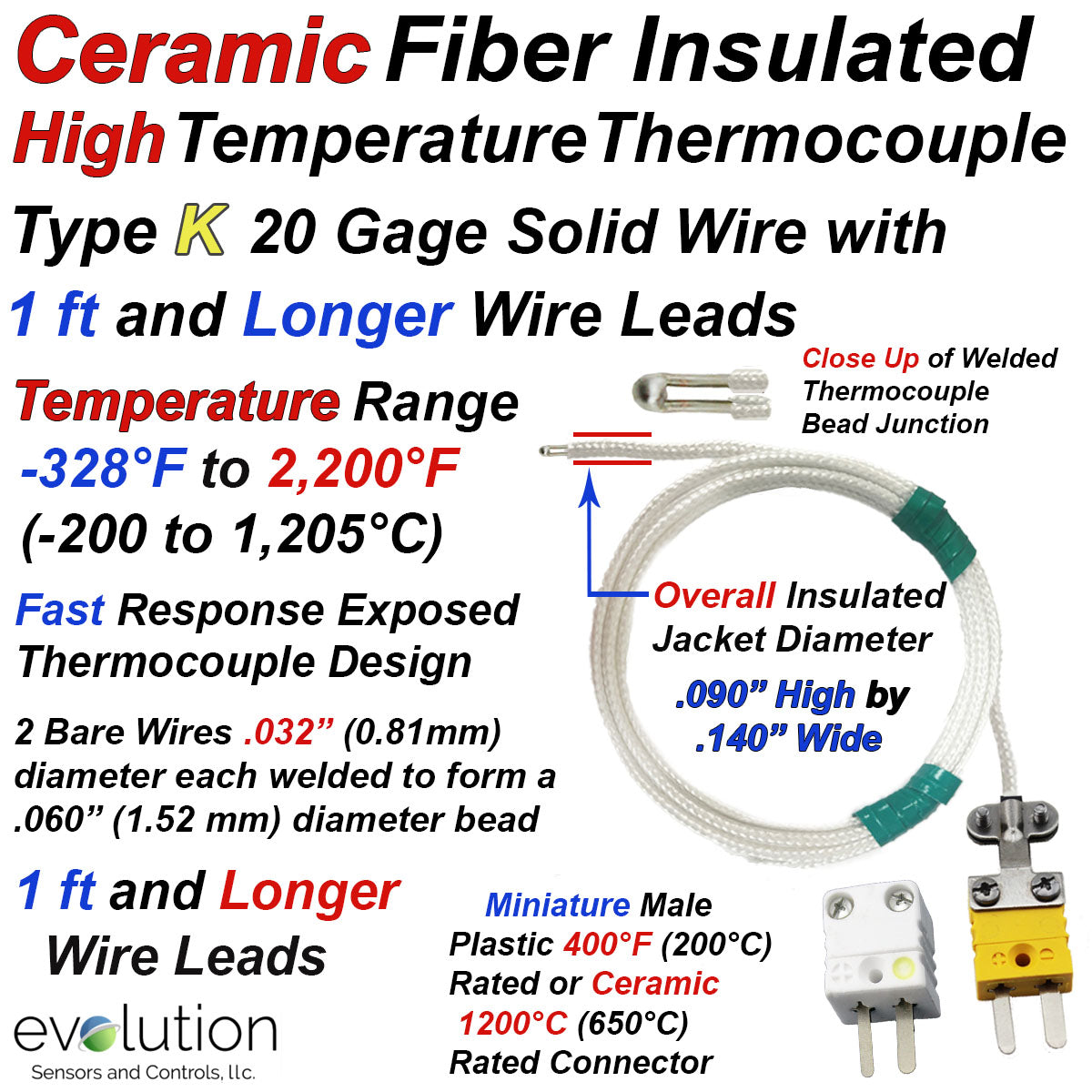

High Temperature Ceramic Fiber Braid Insulated Thermocouple with Type K 20 Gage Wire and Miniature Male Connector

• Type K thermocouple made from High Accuracy (SLE - Special Limits of Error) and Rugged 20 gage thermocouple wire and protected with a hig temperature fiberglass insulation.
• Exposed Welded bead design fast temperature response. The bead diameter is .060" inches (1.5 mm)
• Temperature Operating range is -328°F to 2,200°F (-200 to 1205°C).
• Lead Wires are 1 ft and LONGER rugged 20 gage diameter solid in a 2 wire parallel design and individually insulated with ceramic fiber braid along with a ceramic jacket.
  • Custom Wire Lengths are available, contact us by email at info@evosensors.com or Call us at 407-420-8080
• Wire Construction - 2 wire parallel design, each of the 2 bare wires are 20 gage solid .032" Inches (0.8 mm) diameter.
  • The bare wires are individually insulated with ceramic braid. These 2 insulated wire are encased in another jacket of ceramic braid jacket.
  • Overall jacket is approx: .090" x .140"
• Instrumentation Connection - miniature male flat pin thermocouple connector
  • The plastic connector body is and rated to 400°F (200°C) and ceramic connector body is rated 1200°F (650°C). Both designs can accurately transfer the full range of Type K thermocouples.
• EvoSensors Part Number: K1X-WBWX-20G-EX-0.25-CLXX-36-MPCX - 3 ft leads with miniature male plastic connector body
  • K1X-WBWX-20G-EX-0.25-CLXX-24-MCCX - 2 ft (24 Inches) leads with miniature male ceramic connector body
