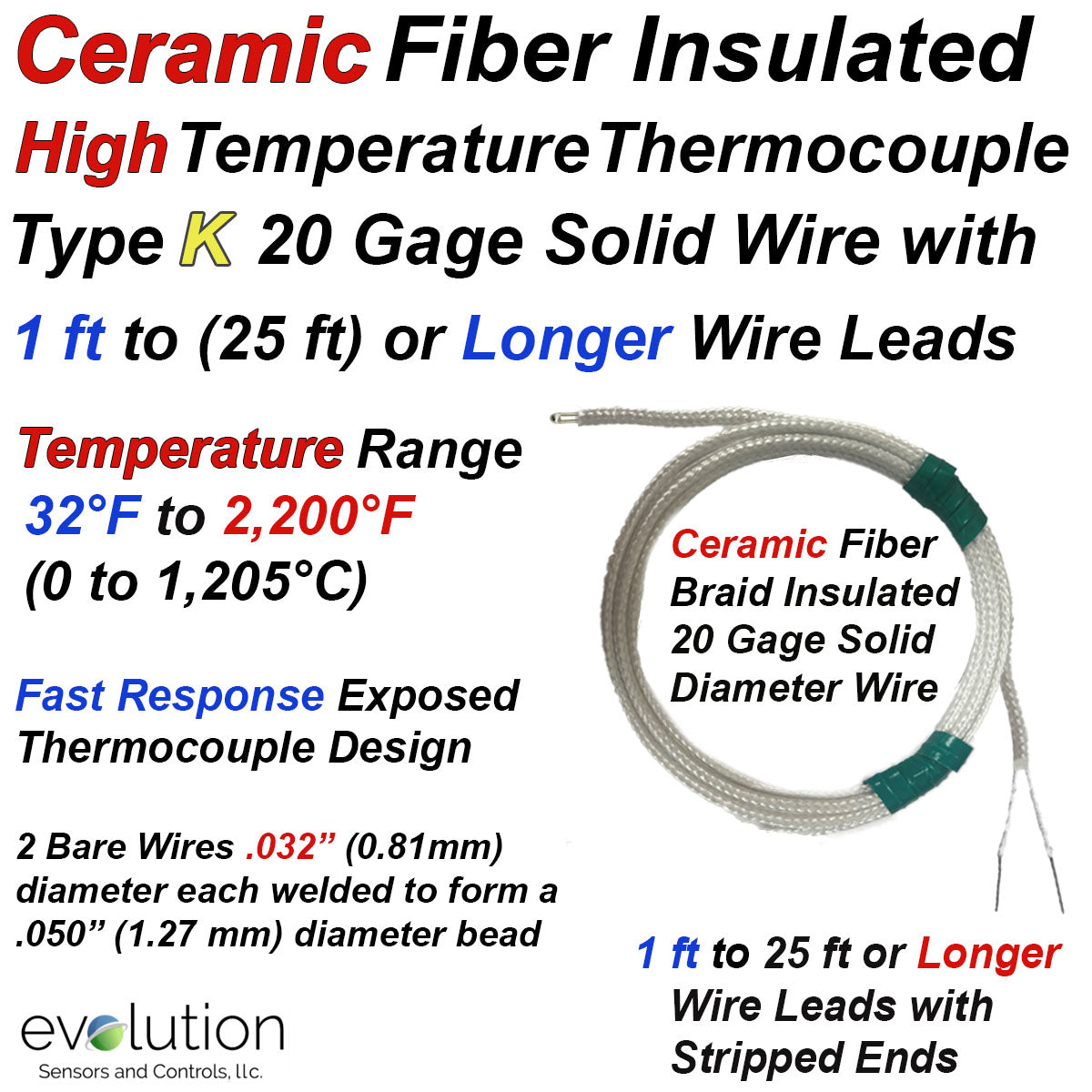

High Temperature Ceramic Fiber Insulated Type K Exposed Thermocouple with 20 Gage Solid Wire Diameter Leads and Stripped Ends

Evosensors

$40.00
SKU: K1X-WBWX-20G-EX-0.25-CLXX-12-STWL

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

High Temperature Ceramic Fiber Insulated Type K Exposed Thermocouple with 20 Gage Solid Wire Diameter Leads and Stripped Ends

  • Type K thermocouple made from High Accuracy (SLE - Special Limits of Error) and Rugged 20 gage thermocouple wire and protected with a high temperature  ceramic braid fiber insulation.
  • Exposed Welded bead design fast temperature response. The bead diameter is .050" inches (1.1 mm)
  • Temperature Operating range is 32°F to 2,200°F (0 to 1205°C).
  • Lead Wires are 1 to 25 ft long rugged 20 gage diameter solid in a 2 wire parallel design and individually insulated with ceramic fiber braid along with a ceramic jacket.
    • Custom Wire Lengths are available, contact us by email info@evosensors.com or Call us at 407-420-8080
  • Wire Construction - 2 wire parallel design, each of the 2 bare wires are 20 gage solid .032" Inches (0.8 mm) diameter.
    • The bare wires are individually insulated with ceramic braid. These 2 insulated wire are encased in another jacket of ceramic braid jacket.
  • Instrumentation Connection - stripped ends
  • EvoSensors Part Number: K1X-WBWX-20G-EX-0.25-CLXX-36-STWL
