Type K Micro Sized Beaded Wire Thermocouple with 80 Inches of 36 Gage PFA Wire with Miniature Connector



   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

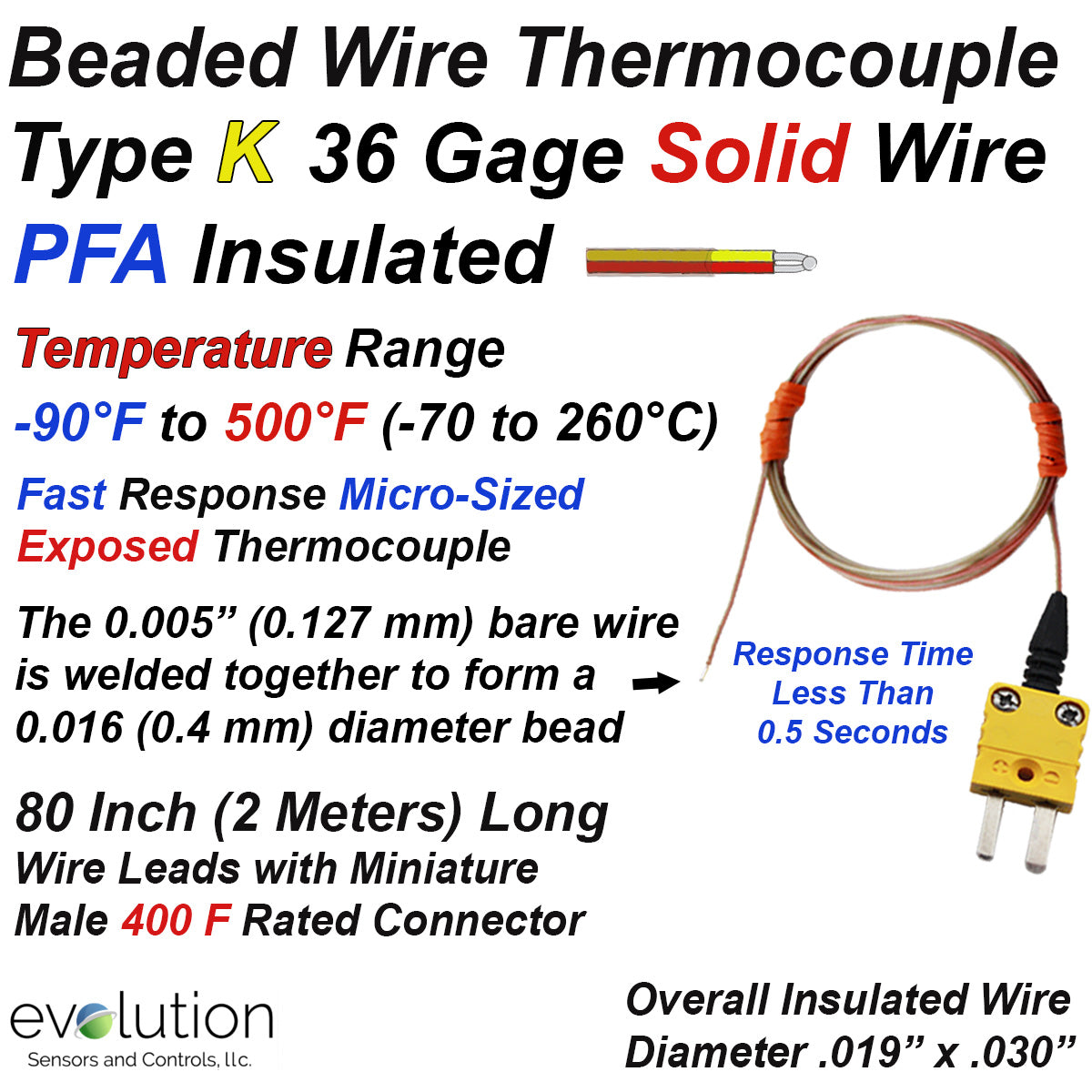

Type K Micro-Sized Beaded Wire Thermocouple with 80 Inches of 36 Gage PFA Wire with Miniature Male Connector
  • Micro-Sized Exposed thermocouple junction is 0.016" (0.40 mm) diameter (approx. half thickness of credit card) and provides the opportunity for precise placement in small areas.
  • Response Time - less than 0.5 seconds
  • Temperature Range of -326 to 500°F (-200 to 260°C). Note: Type K thermocouple reading Below Freezing 32°F (0°) can be out of limits and exceed the standard accuracy of 4°F (2.2°C)
  • Wire Leads and construction - 80 Inch (2 meters or 6.7 ft) of leads with 36 gage solid 0.005" (0.127 mm) bare wire in a 2 wire parallel construction. The wires are individually insulated with PFA along with a PFA outside jacket. The overall outside diameter is a nominal .019" x .030".
  • Instrument Connection - miniature male flat pin thermocouple connector with the plastic body having a temperature range of -40 to 400°F (-40 to 200°C) and is capable of accurately transferring the full range of Type K thermocouples.
  • EvoSensors Part Number: K1X-WBWX-36G-EX-0.25-PFXX-80-MPCX
  • Location: D-5-5

Consider the following Accessories to complete your Sensor System

Miniature Thermocouple Connector Accessories Thermocouple Connectors Miniature Female Type K Thermocouple Connector Extension Cable Type K - PFA Insulated Wire with Miniature Male and Female Connector Handheld Thermometer with Dual Thermocouple Inputs
