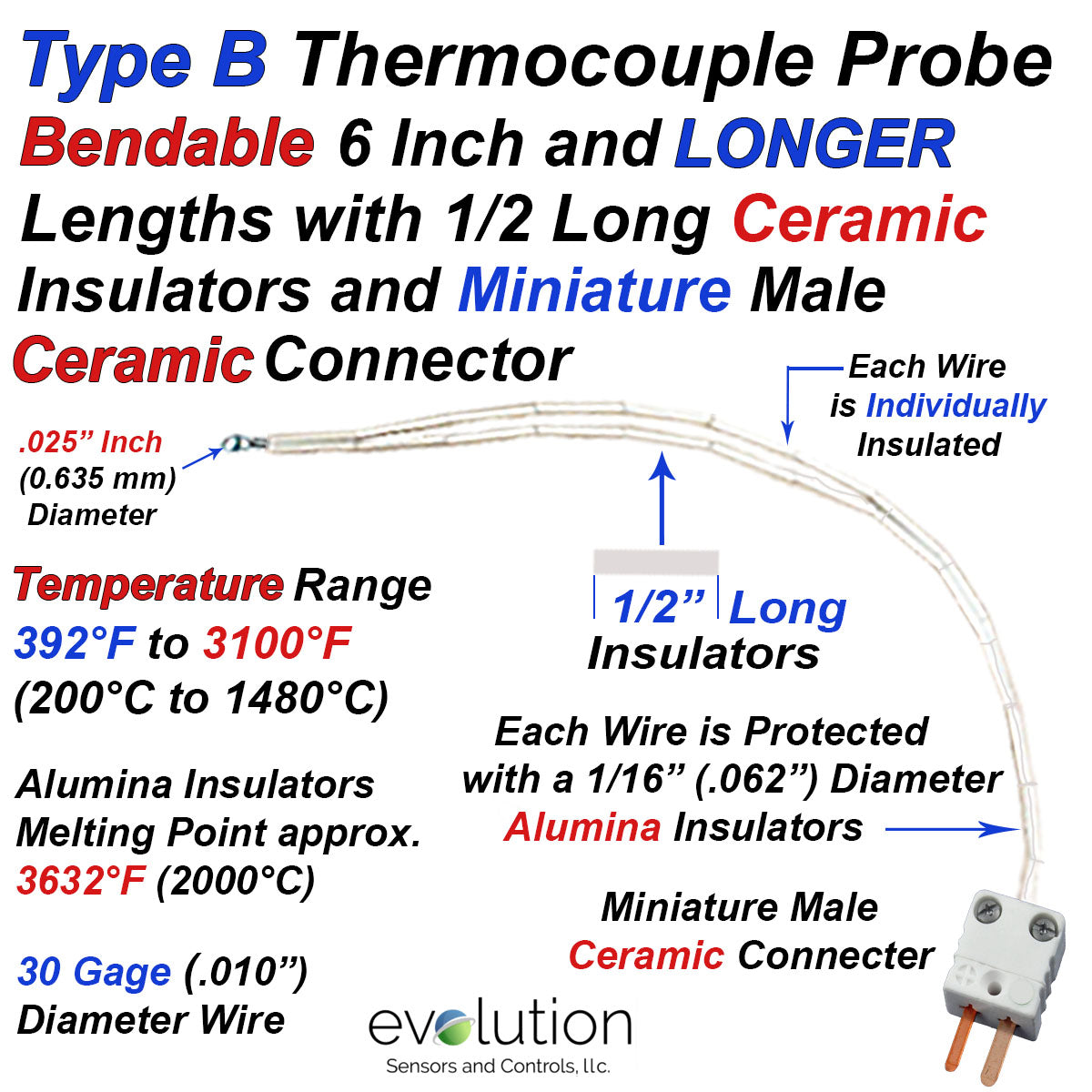

Type B Thermocouple Probe Exposed Junction 6 Inch and LONGER Flexible 30 Gage Solid Wire with Alumina (Ceramic) Insulators and Miniature Male Ceramic Connector
Evolution Sensors and Controls
$295.00
SKU: B1X-WBWT-30G-EX-CB12-6-MCCX
Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support
Type B Thermocouple Platinum Rhodium Exposed Junction 6 Inch and LONGER Flexible 30 Gage Solid Wire with Alumina (Ceramic) Insulators and Miniature Male Ceramic Connector
- Type B Thermocouple - Positive Wire 70% Platinum and 30% Rhodium, Negative 94% Platinum and 6% Rhodium
-
Temperature Operating range 392°F to 3,092°F (200°C to 1700°C)
- Typically temperatures of 1112°F (600°C) and above is recommended related to small thermocouple signal (millivolt) output at lower temperatures.
- Short term up to 3,362°F (1850°C). Thermocouple probes made with smaller diameter bare wire will fail faster than sensors with larger diameters.
-
Wire Leads - 6 inches and LONGER with 1/2" Long Alumina Ceramic Insulators protectiing the 30 gage .010 inch (0.24 mm) diameter bare wire.
- Alumina Insulator rated to 3632°F (2000°C)
- CUSTOM LENGTHS available - call (407) 420-8080 or email info@evosensors.com
- Exposed Bead bare wire thermocouple junction provides exceptional Fast temperature measurement response time.
-
Instrument Connection is a miniature male flat pin ceramic connector
- Connector Body is rated to 1200°F (650°C) and can accurately transfer the full range of Type B thermocouples.
-
EvoSensors part number: B1X-WBWT-30G-EX-CB12-6-MCCX for the 6 inch length
- B1X-WBWT-30G-EX-CB12-12-MCCX for the 12 inch length
- B1X-WBWT-30G-EX-CB12-18-MCCX for the 18 inch length
- B1X-WBWT-30G-EX-CB12-24-MCCX for the 24 inch length
