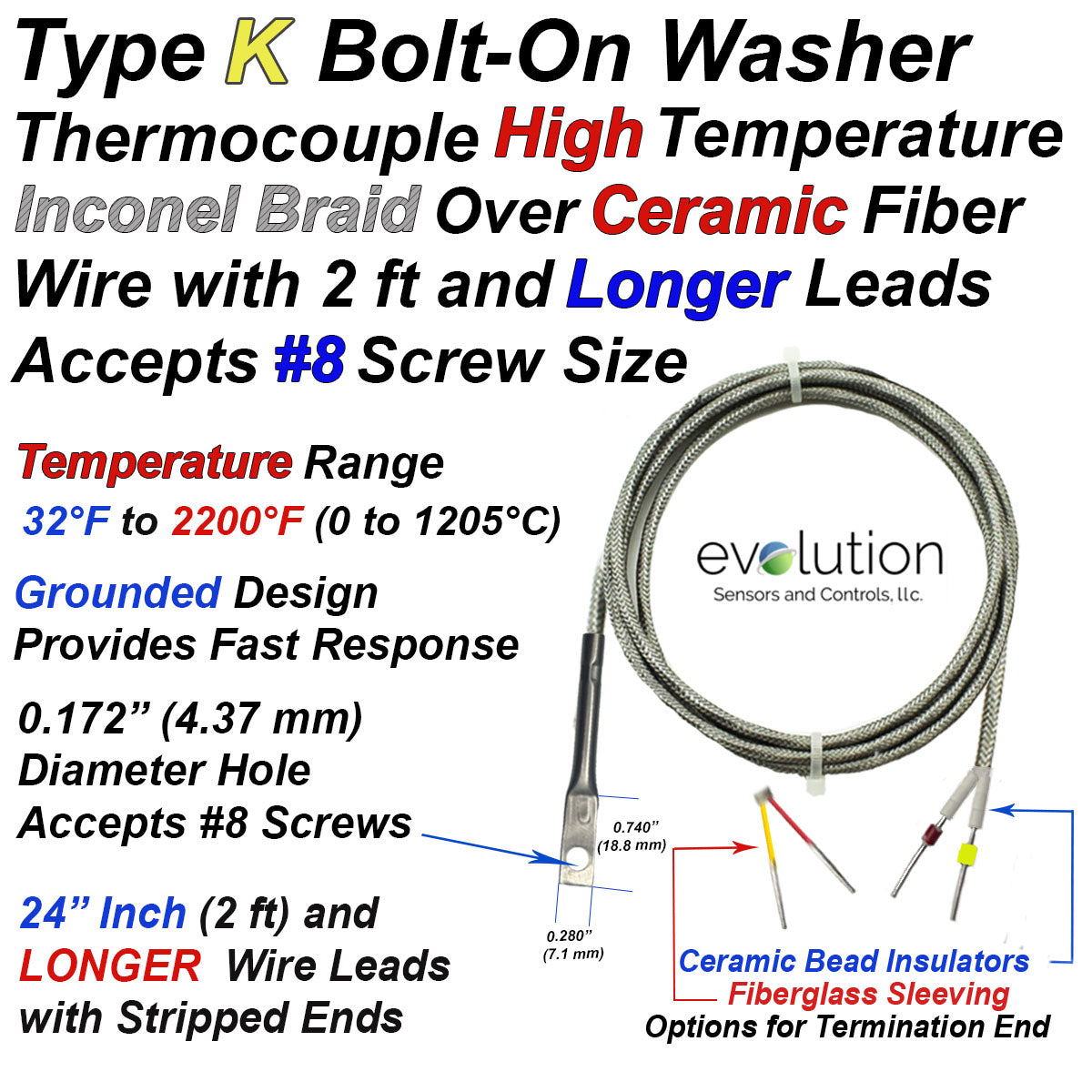

Type K Washer Bolt On Thermocouple for a #8 Screw or Bolt. Grounded Junction with 2 ft and Longer Inconel Over-Braided Ceramic Fiber Wire Leads with Stripped Ends

Type K Washer Bolt On Thermocouple for a #8 Screw or Bolt. Grounded Junction 2 ft and Longer of Inconel Over-Braided Ceramic Fiber Wire Leads with Stripped Ends

• Type K Washer with 0.172" (4.37 mm) diameter mounting hole for # 8 screw or bolt.
  • Stainless Steel Bolt On fitting is .740" (18.8 mm) Long  x .280" (7.1 mm) Wide.

• Temperature Operating range is 32°F to 2200°F (0 to 1205°C).
• Grounded Junction the internal thermocouple wire are in contact with the inside tip of the probe providing fast response and protection from the temperature measurement environment
• Lead Wires are 24 inches (2 feet) and longer and constructed with High-Accuracy Special Limits of Error (SLE) standards.

  • Custom Wire Lengths are available, contact us by email info@evosensors.com or Call us at 407-420-8080
• Wire Construction - 2 wire parallel design, each of the 2 bare wires are 20 gage solid .032" Inches (0.8 mm) diameter.
  • The bare wires are individually insulated with ceramic braid. These 2 insulated wire are encased in another jacket of ceramic braid jacket. An Inconel metal braid is the overall outside jacket.
  • Overall outside diameter is .120" high by .150" wide.
• Instrumentation Connection - Stripped Bare Wire Ends with Ceramic Bead Insulators or ANSI Color Coded Fiberglass Sleeving - options availabe on website
  • Ceramic (Steatite) Bead Insulators are rated up to 2190°F (1200°C)
  • Fiberglass Sleeving is rated up to 1,202ºF (650°C)
• EvoSensors Part Number: K1X-BDWH-172-20G-CLIB-24-STWL-CB - Stripped Ends with Ceramic Bead Insulators
• Location: G-5-16
