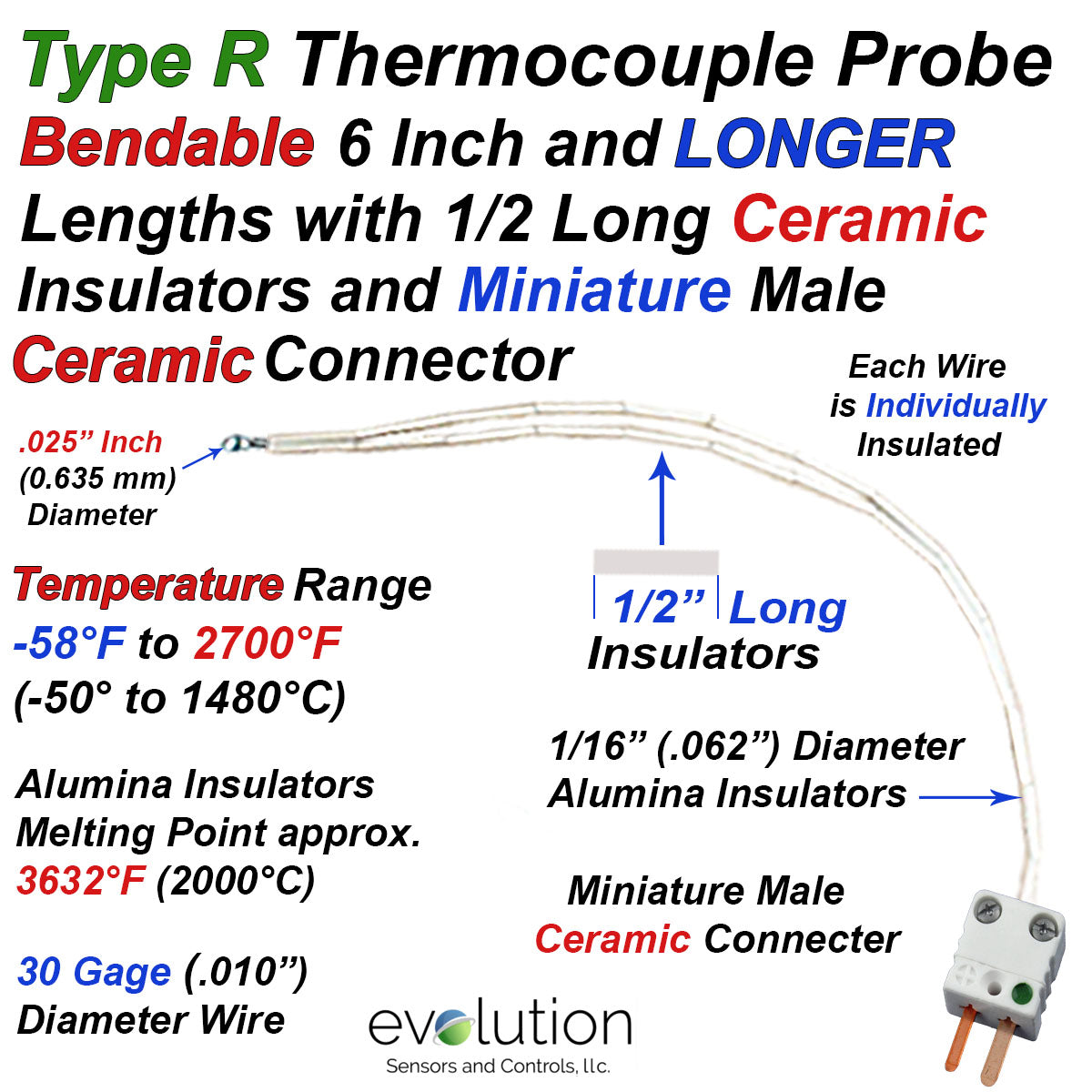

Type R Thermocouple Probe Platinum Rhodium 13% - Exposed Junction 6 Inch and LONGER Flexible 30 Gage Solid Wire with Alumina (Ceramic) Insulators and Miniature Male Cermaic Connector

Evolution Sensors and Controls

$250.00
SKU: R1X-WBWT-30G-EX-CB12-6-MCCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

Type R Thermocouple Platinum Rhodium 13% Exposed Junction 6 Inch and LONGER Flexible 30 Gage Solid Wire with Alumina (Ceramic) Insulators and Miniature Male Ceramic Connector

  • Type R Thermocouple - Positive Wire Platinum with 13% Rhodium, Negative 100% Platinum
  • Temperature Operating range -58°F to 2700°F (-50°C to 1480°C)
  • Wire Leads - 6 inches and LONGER with 1/2" Long Alumina Ceramic Insulators protectiing the 30 gage .010 inch (0.24 mm) diameter bare wire.
    • Alumina Insulator rated to 3632°F (2000°C)
    • CUSTOM LENGTHS available - call (407) 420-8080
  • Exposed Bead bare wire thermocouple junction provides exceptional Fast temperature measurement response time.
  • Instrument Connection is a miniature male flat pin ceramic connector
    • Connector Body is rated to 1200°F (650°C) and can accurately transfer the full range of Type R thermocouples.
  • EvoSensors part number: R1X-WBWT-30G-EX-CB12-6-MCCX for the 6 inch length
    • R1X-WBWT-30G-EX-CB12-12-MCCX for the 12 inch length
    • R1X-WBWT-30G-EX-CB12-18-MCCX for the 18 inch length
    • R1X-WBWT-30G-EX-CB12-24-MCCX for the 24 inch length
    • R1X-WBWT-30G-EX-CB12-30-MCCX for the 30 inch length
    • R1X-WBWT-30G-EX-CB12-40-MCCX for the 40 inch length
    • R1X-WBWT-30G-EX-CB12-72-MCCX for the 72 inch length
