Type J Thermocouple Wire Fiberglass Braid Insulated 24 Gage Stranded

Evosensors

$40.00
SKU: J1X-FGXX-24S-25FT

← Previous Product Next Product →
   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

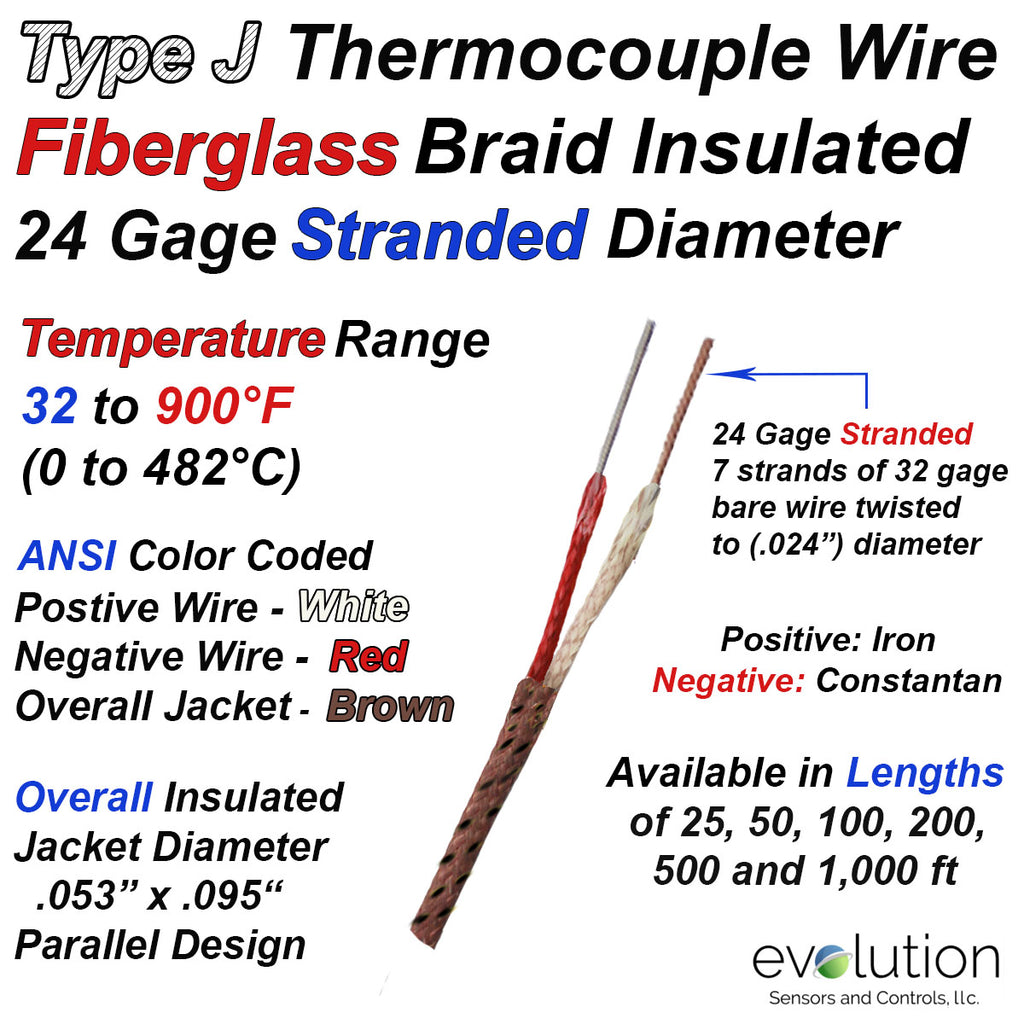

Type J Thermocouple Wire Fiberglass Braid Insulated 24 Gage Stranded

  • Temperature Operating range 32 to 900°F (0 to 482°C)
  • Stranded 24 Gage bare wire (7/32 design) flexible design
    • 7 strands of 32 gage (.008) twisted resulting in a .024" bare thermocouple wire diameter.
    • The 2 thermocouple wires are individual insulated with high temperature fiberglass braid
    • Fiberglass braided jacket over on the 2 individual fiberglass insulated thermocouple wires. Overall jacket diameter .053" x .095"
  • Color Code - ANSI with a positive white wire, red negative wire and brown jacket
  • Available Lengths are 25, 50, 100, 200. 500 and 1000ft continuous.
  • Part number: J1X-FGXX-24S-( )FT
    • Enter standard pre-determined length in ft as outlined above. Part number example J1X-FGXX-24S-500FT is a 500 ft length on a spool
