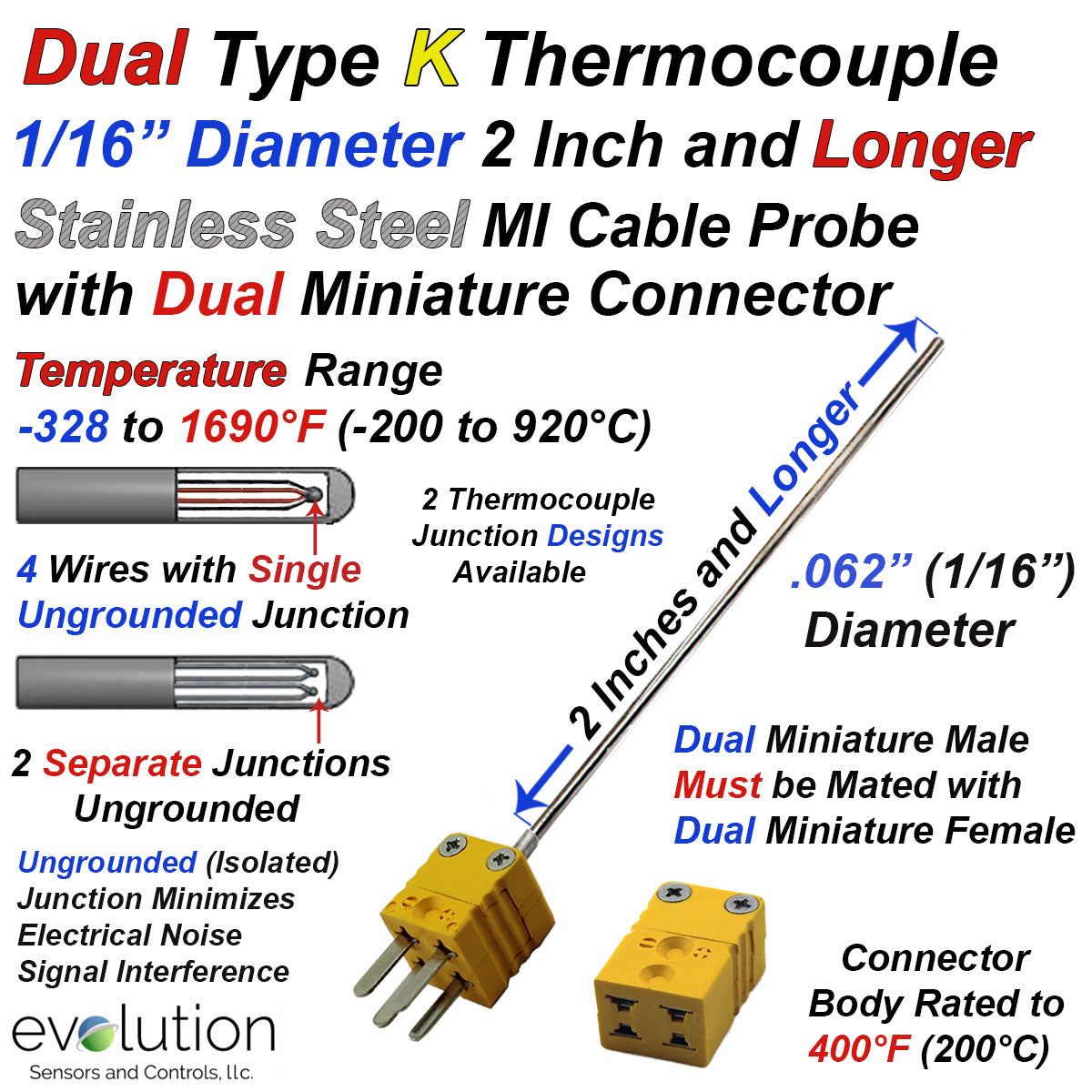

Type K Dual Thermocouple Probe with a 1/16" Diameter 6 Inch Long Stainless Steel Sheath Ungrounded and Dual Miniature Male Connector

Evosensors

$70.00
SKU: K2X-S304-062-UX-6-MDCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

Type K Dual Thermocouple Probe with a 1/16" Diameter 6 Inch Long Stainless Steel Sheath Ungrounded and Dual Miniature Male Connector

  • 2 individual temperature measurement circuits within 1 probe with a fast and easy connection.
  • Upper Temperature Range is approximately 1,600°F (920°C)
  • MI Cable Design provides the ability to Form or Bend the probe to a radius equal to 2.5 times the sheath diameter without causing any damage to the temperature sensing capabilities or integrity of the metal sheath.
  • Isolated (Ungrounded) thermocouple junction from minimizes potential signal interference from electrical noise.
  • Instrument Connection - Dual miniature thermocouple connector provides quick connection capabilities and has an upper temperature limit of 400°F (200°C)
    • Important Note - the dual male connector must be mated with our Dual Miniature Female.
    • The utilization of 2 individual miniature female connectors will result in a mechanical interference.
  • EvoSensors Part number: K2X-S304-062-UX-6-MDCX
  • Location: B-6-12

Consider the following Accessories to complete your Temperature Measurement System

Type K Dual Miniature Thermocouple Connector - Female Jack Design  Thermocouple Connector Accessories Miniature Dual Wire Clamp Bracket Type K Thermocouple Wire 24 Gage Solid with PFA Insulation
