900°F RTD Probe 1 Inch and LONGER 3/16" Diameter Sheath with Fiberglass Insulated Wire Leads

Evosensors

$75.00
SKU: P3A-TBSX-188-PX-1-FGXX-40-STWL

← Previous Product Next Product →
   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

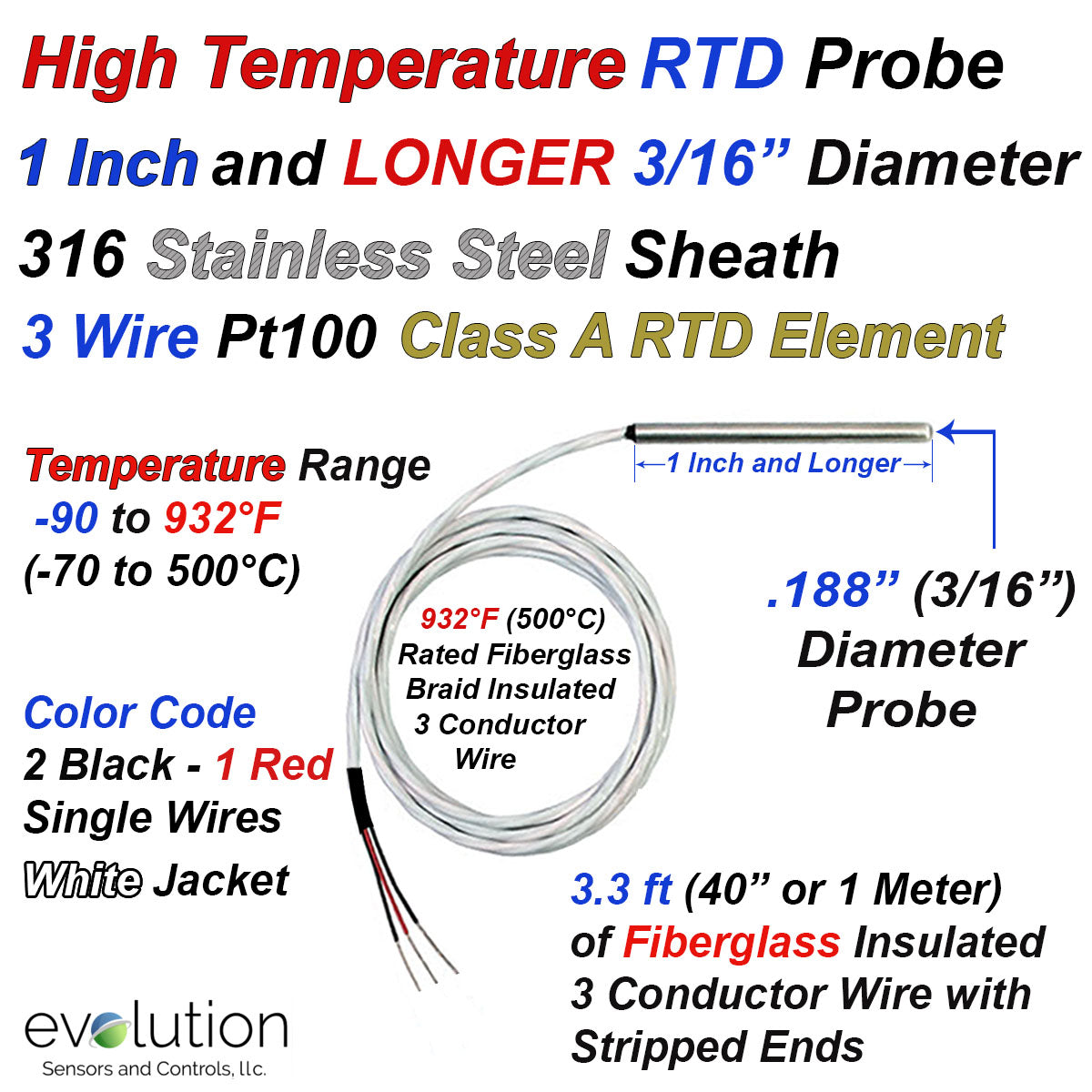

Short RTD Probe 1 Inch and LONGER x 3/16" Diameter Stainless Steel Sheath with High Temperature Fiberglass Insulated Wire Leads

  • Temperature Operating range is -90 to 932°F (-70 to 500°C)
  • Pt100 (Platinum 100 ohm) 3 wire Class A accuracy assembly with high purity mineral insulation to provide temperature stability.
  • 316 Grade Stainless Steel probe 1 Inch and LONGER
  • Transition to Wire leads - Ceramic cement provides the transition from the probe to 40 inches (3 ft or 1 meter) of fiberglass braid insulated 900°F (500°C) rated wire.
  • Wire Construction is a 3-conductor 26 gage stranded (7/34) nickel plated wire with each conductor and overall jacket insulated with fiberglass braid.
    • The outside jacket diameter is .095".
  • Wire Color code is 2 Black and 1 Red inner conductors with overall White jacket.
  • Instrument Connection is stripped wire leads
  • Excellent Solution for Higher Temperature measurement applications requiring accuracy and stability in space restricted areas related to process development, product development, testing, machinery, and equipment in Bio-Medical Pharmaceutical, Aerospace, Food Processing, HVAC, Refrigeration, and other industries
  • EvoSensors Part Number: P3A-TBSX-188-PX-2-FGXX-40-STWL - 2 Inch Long Probe with 40 Inches of Lead Wire - Location: C-4-5
    • P3A-TBSX-188-PX-1-FGXX-40-STWL - 1 Inch Long Probe with 40 Inches of Lead Wire - Location: G-4-13
