Type K Thermocouple MI Cable Probe Inconel Sheath Ungrounded 1/16" Diameter 24 Inches Long with Miniature Connector

Evosensors

$55.00
SKU: K1X-IN60-062-UX-24-MPCX

← Previous Product Next Product →
   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

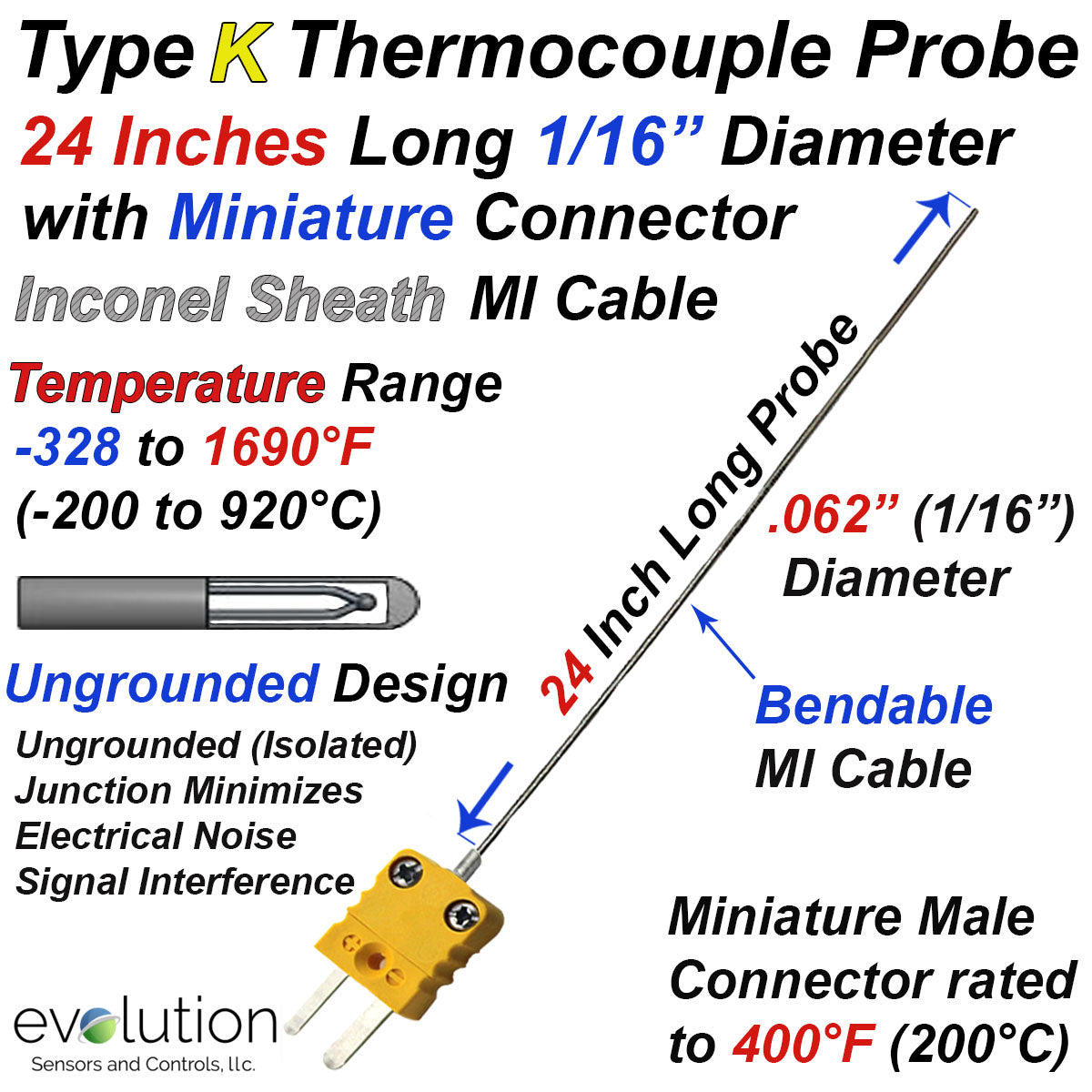

Type K Thermocouple Probe - Inconel Sheath Ungrounded 1/16" Diameter 24 Inches Long with Miniature Connector

  • Temperature Operating range -328 to 1690°F (-200 to 920°C)
    • The best accuracy Type K typically can achieve between 32 to 328°F below zero (0 to -200°C) is Standard Limits of Error (±) 2.2°C or (±) 2% whichever is greater
  • Probe Dimensions - 1/16" (.062" 1.58 mm) diameter 24 inches (2ft or 0.6 m) long
  • Bendable MI Cable design provides excellent flexibility and good strength.
    • Bendable to a radius 2.5 times the diameter of the probe sheath
  • Inconel Sheath provides a higher level of corrosion resistance and strength at higher temperatures as compared to Stainless Steel MI Cable.
  • Ungrounded Design - the thermocouple junction and wire are isolated from the tip and metal probe sheath as such providing Protection of the temperature measurement signal from Electrical Interference.
  • Instrument Connection is a miniature male flat pin Type K thermocouple connector. Provides a Quick Connector - Disconnect design to you Instrumentation or extension cable.
    • The plastic connector body has a temperature range of -40 to 400°F (-40 to 200°C) and can accurately transfer the full range of Type K Thermocouples
  •  EvoSensors part number: K1X-IN60-062-UX-24-MPCX
  • Location: F-4-3
