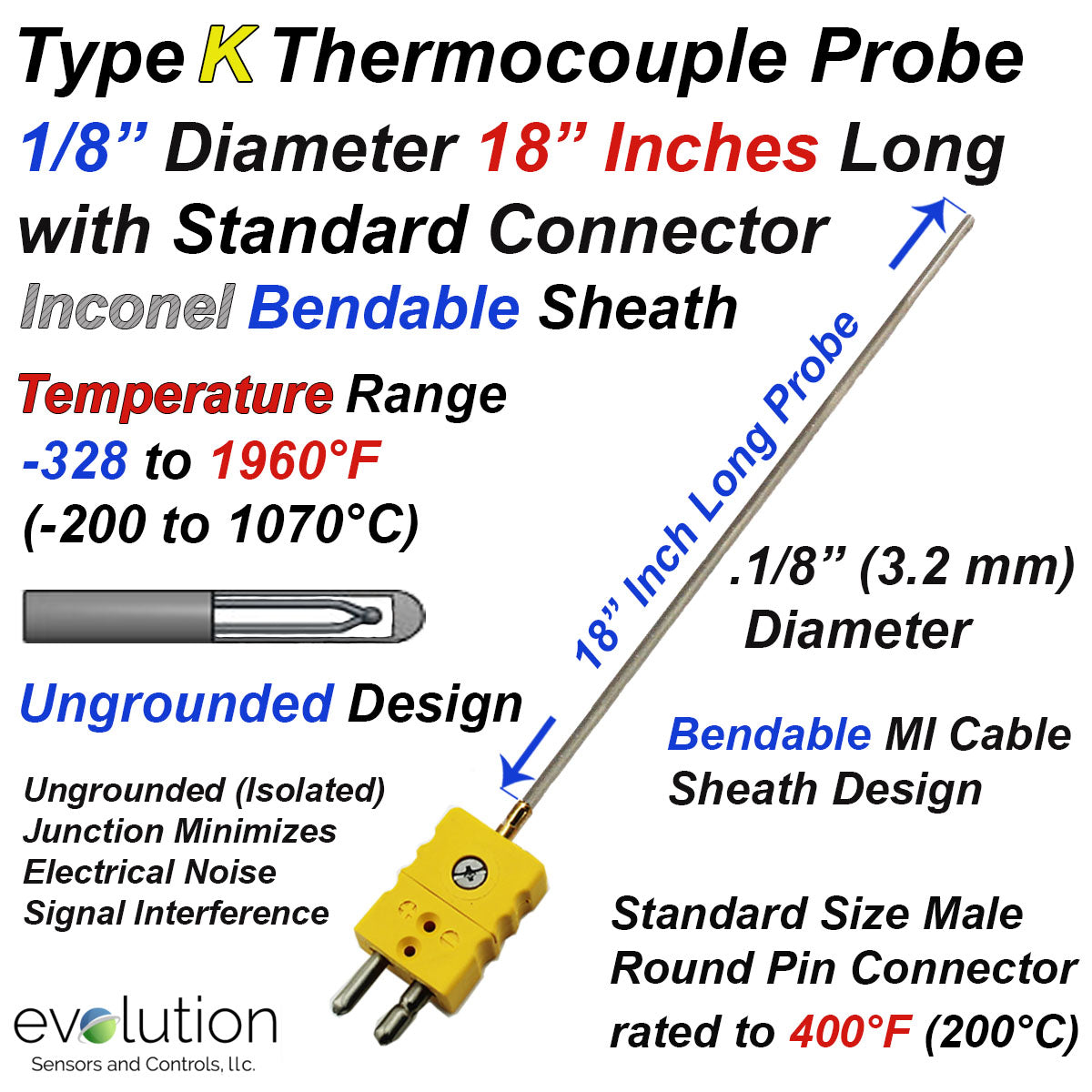

Type K Thermocouple Probe 18 Inches Long 1/8" Diameter Inconel Sheath Ungrounded with a Standard Size Male Round Pin Connector

Evosensors

$47.00
SKU: K1X-IN60-125-UX-18-SPCX

   Call 856 579-7490 or Email info@evosensors.com for Technical and Sales Support

Type K Thermocouple Probe 18 Inches Long 1/8" Diameter Inconel Sheath Ungrounded with a Standard Size Male Round Pin Connector

  • Temperature Operating range 32 to 1960°F (0 to 1070°C)
  • Ungrounded Junction configuration isolates the thermocouple wires from the sheath to minimize signal errors from potential electrical interference.
  • Inconel MI Cable sheath - 18 Inches (450 mm) long with a 1/8" (3.2 mm) diameter.
    • Bendable MI Cable design capabilities with a radius of 2.5 times the diameter of the probe.
    • Inconel provides a higher level of strength as compare to stainless steel at high temperatures
  • Instrument Connection is standard size Quick Connect - Disconnect style male thermocouple connector with round pins for fast and easy although reliable connection to your temperature measurement instrumentation.
    • Connector Body can withstand a temperatrue range of-40 to 400°F (-40 to 200°C) and is capable of accurately transferring the full range of Type K thermocouple probe
  • Evosensors Part Number: K1X-IN60-125-UX-18-SPCX
  • Location: C-1-20
