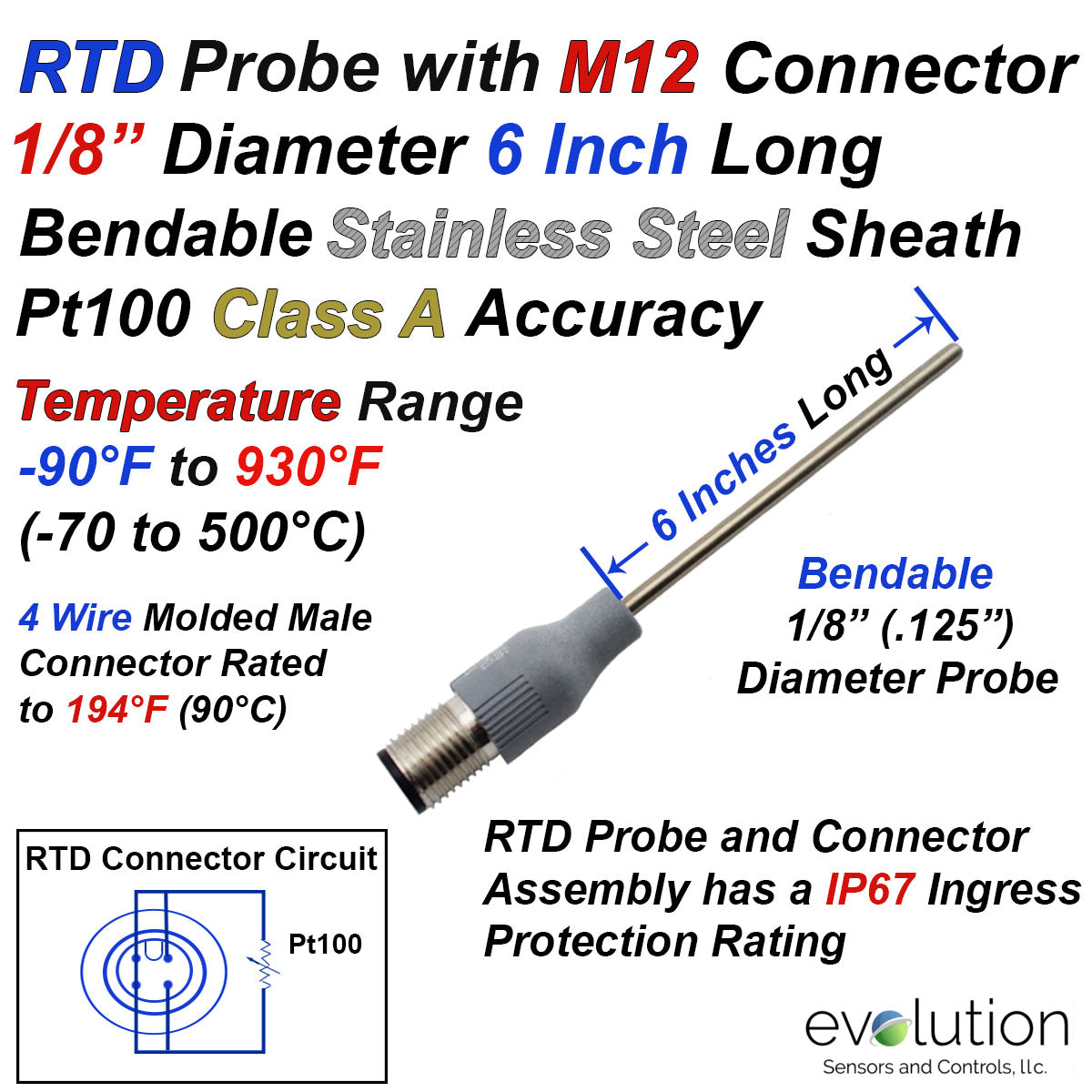

RTD Probe with M12 Molded Connector 6" Long Stainless Steel 1/8" Diameter Pt100 4 Wire Class A


SKU: P4A-316SS-125-PX-6-M12P-X


1/8" Diameter RTD Probe with M12 Molded Circular Connector 6 inches Long Stainless Steel Sheath 4 Wire Pt100 Class A Accuracy Design

  • The RTD is a 6 inch long 316 Stainless-Steel sheath 1/8" diameter probe with a M12 Metal Circular Connector. The temperature operating range is -90 to 932 F (-70 to 500 C) with a Class A tolerance of -20 to 660 F (-30 C to 350 C).
  • The sensor is a Pt100 (Platinum 100 Ohm) 4-wire Class A accuracy design encased in MI Cable (Metal sheathed cable with compacted high purity Mineral Insulation) providing excellent temperature stability, mechanical toughness and bendability.
  • The MI Cable section of the probe transitions to a M12 Molded Circular 4-Pin Connector. The outer sheath of the connector is molded plastic housing protecting a molded plastic insert with maximum temperature rating of 194 F (90 C) along with IP67 Ingress Protection
  • The design and overall performance capabilities of this product provides temperature measurement solutions requiring a secure protected connection from vibration, moisture and dirt along with providing ease of maintenance in the Marine Industry, Aircraft Ground Support Equipment, Mobile Power Generation, Gas and Oil, Chemical, Military, Food and Beverage, Agricultural, Industrial Equipment, Factory Automation and other industries.
  • EvoSensors Part Number P4A-316SS-125-PX-6-M12P-X
  • Location: B-4-2

Consider the following Accessories to complete your Sensor System

RTD M12 Connector Extension Cable Assembly 5 Meters LongRTD M12 Connector Extension Cable Assembly 5 Meters Long custom
