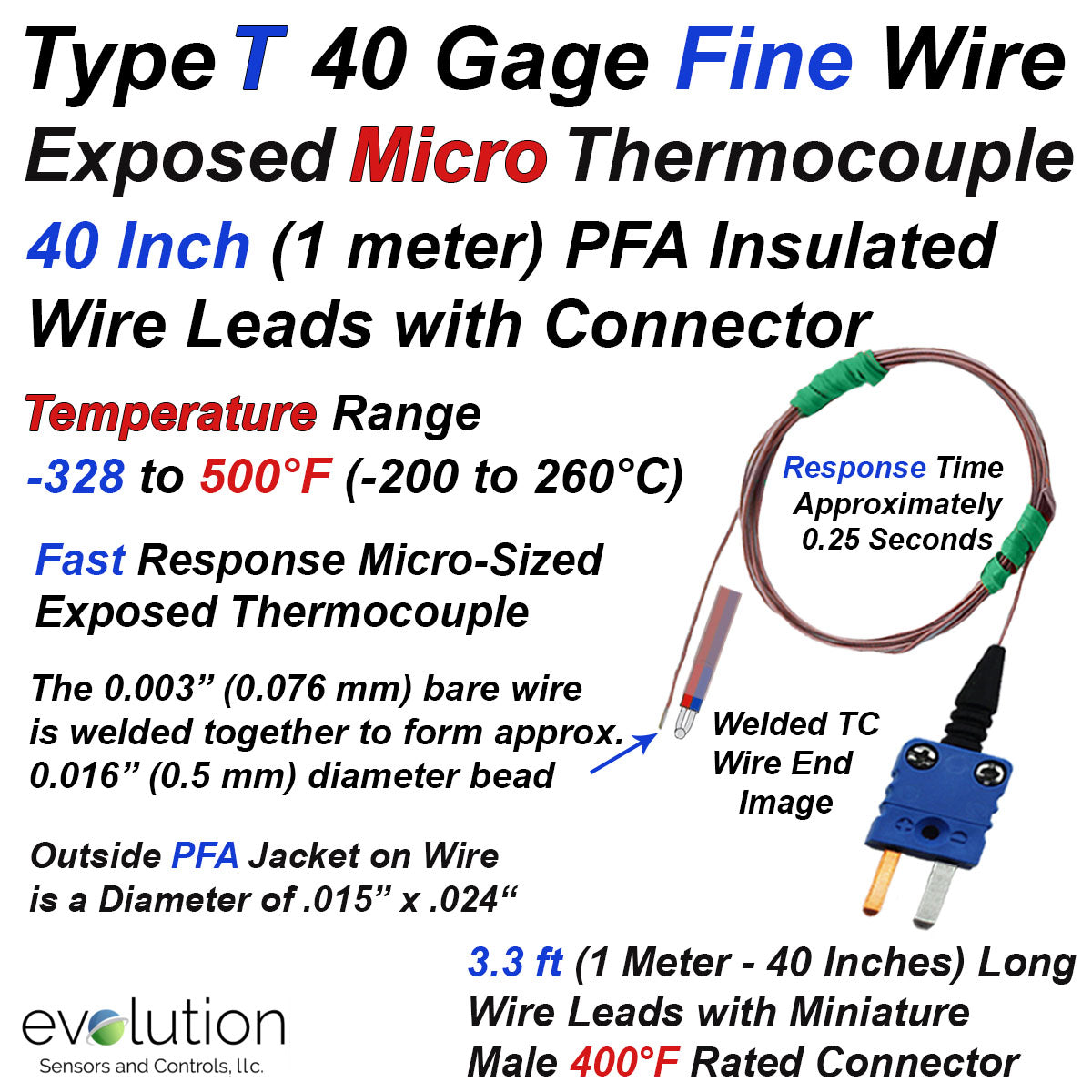

Micro Thermocouple - Type T 40 Gage Fine Wire Temperature Sensor Assembly with 40 Inches of PFA Insulated Leads with a Miniature Male Flat Pin Connector

Evosensors

$40.00
SKU: T1X-WBWX-40G-EX-0.25-PFXX-40-MPCX

   Call 856 579-7490 or Email info@evosensors.com for Technical and Sales Support

Micro Thermocouple - Type T 40 Gage Fine Wire Temperature Sensor Assembly with 40 Inches (1meter) of PFA Insulated Leads with a Miniature Male Flat Pin Connector

  • Micro-Sized thermocouple bead is 0.013" (0.33 mm)
    • small diameter provivde the opportunity for precise placement
    • response time as fast as 0.25 seconds
  • Temperature Range -328 to 500°F (-200 to 260°C)
  • Type T thermocouples are very stable and have excellent repeatability between –380 to 392 F (–200 C to 200 C).
  • Wire Construction - 40 Gage solid 0.003" (0.076 mm) diameter bare wire in a 2 wire parallel construction with the wires individually insulated with PFA (Plastic Fluoropolymer) along with a PFA outside jacket.
    • Overall outside diameter of the wire jacket is a nominal .015" x .024".
  • Wire Leads - 40 inches long (1 meter or 3.3 ft) with a temperature range of -90 to 500°F (-70 to 260°C)
  • Instrument Connection - miniature male flat pin thermocouple connector
    • plastic connector body is rated from -40 to 400°F (-40 to 200°C) and capable of acurately transmitting the entire range of Type T thermocouples
  • Thermocouple Beaded Wire Sensors are commonly utilized in Semiconductor, Microprocessor and Electronics Testing and Development, along with Cryogenics, Life Sciences, Aerospace, Optics, and overall Research along with many other industries.
  • EvoSensors Part Number: T1X-WBWX-40G-EX-0.25-PFXX-40-MPCX
  • Location: C-5-13
