Thermocouple Beaded Thermocouple Type T Wire Sensor - 24 Gage PFA Insulated 12 inches Longer with Standard Connector
Evosensors
$20.00
SKU: T1X-WBWX-24G-EX-0.25-PFXX-12-SPCX
Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

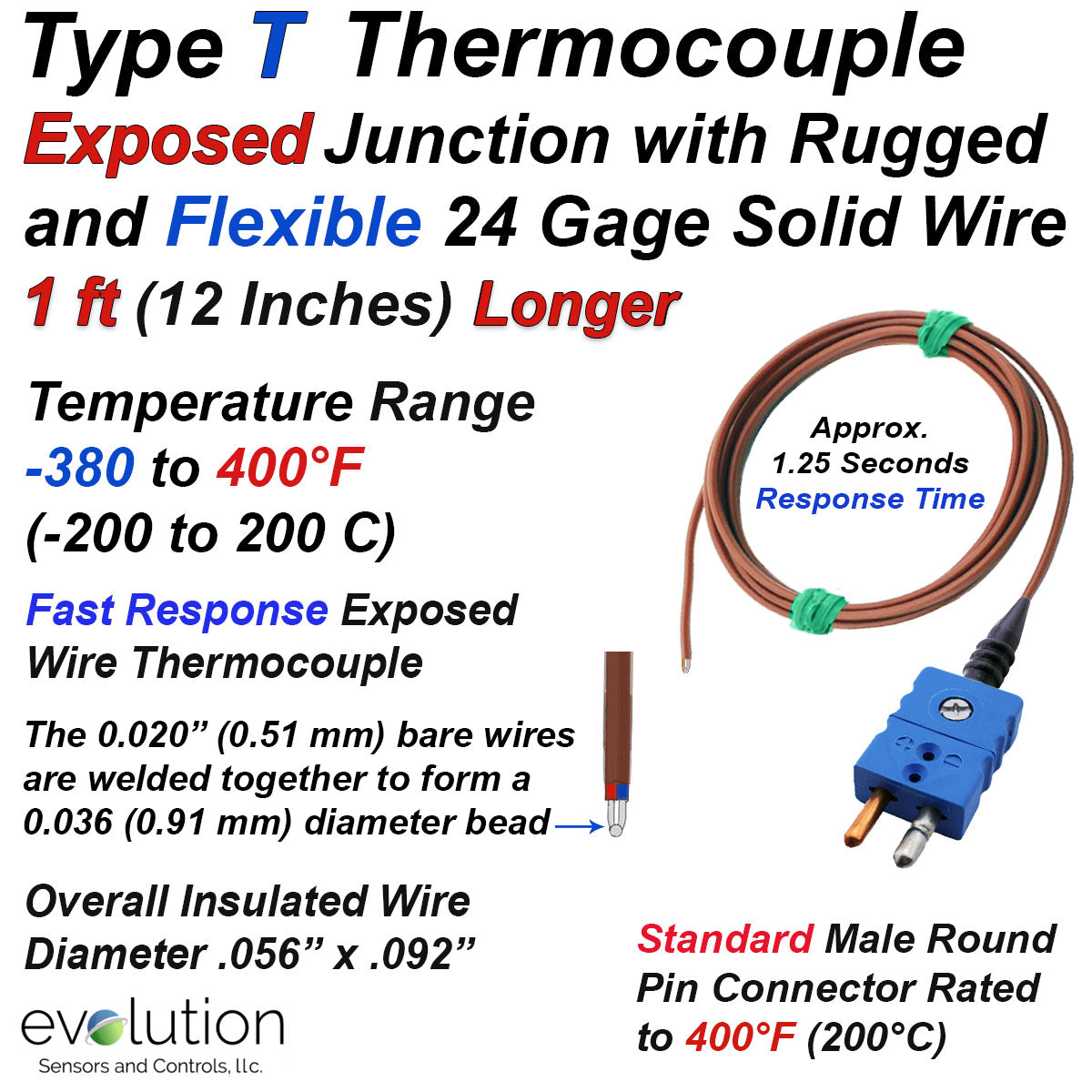

Type T Thermocouple Flexible Wire Design with Exposed Junction and 12 Inches and Longer of Rugged 24 Gage Solid Wire and Standard Connector for Precise and Fast Temperature Measurment
-
Type T thermocouples are very stable and have excellent repeatability between
–380 to 392 F (–200 C to 200 C). - Temperature Operating range of -380 to 400°F (-200 to 200°C)
- Exposed Thermocouple bead is .036" (.91 mm) diameter and provides an approximate 1.25 Seconds response time.
- Wire Leads are 12 Inches and longer. Special lengths can be avaialble upon request
- Wire Construction is Heavy Duty 24 gage solid 0.020" (0.51 mm) bare wire with a 2 wire parallel construction. Each wire is individually insulated with FEP (Plastic Fluoropolymer) along with a FEP overall jacket jacket. The overall outside diameter is a nominal .056" x .093".
- Color Code is ASNI with a blue positive, red negative and brown overall
- Instrument Connection is a Standard male thermocouple connector rated to 400°F (200°C)
-
Excellent Low Temperature capabilities and accuracy for Semi-Conductor, Electronics, Life Sciences, Aerospace, Optics, and overall Research and Testing along with many other industries.
-
EvoSensors Part Number: T1X-WBWX-24G-EX-0.25-PFXX-12-SPCX - 12 Inch wire leads
- T1X-WBWX-24G-EX-0.25-PFXX-18-SPCX - 18 Inch wire leads
- T1X-WBWX-24G-EX-0.25-PFXX-40-SPCX - 40 Inch wire leads
- T1X-WBWX-24G-EX-0.25-PFXX-60-SPCX - 60 Inch wire leads
-
EvoSensors Part Number: T1X-WBWX-24G-EX-0.25-PFXX-12-SPCX - 12 Inch wire leads
