Type B Thermocouple Extension Wire - FEP Insulated 20 Gage Solid Wire
Evosensors
$50.00
SKU: B1E-FPXX-20G-25FT
Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

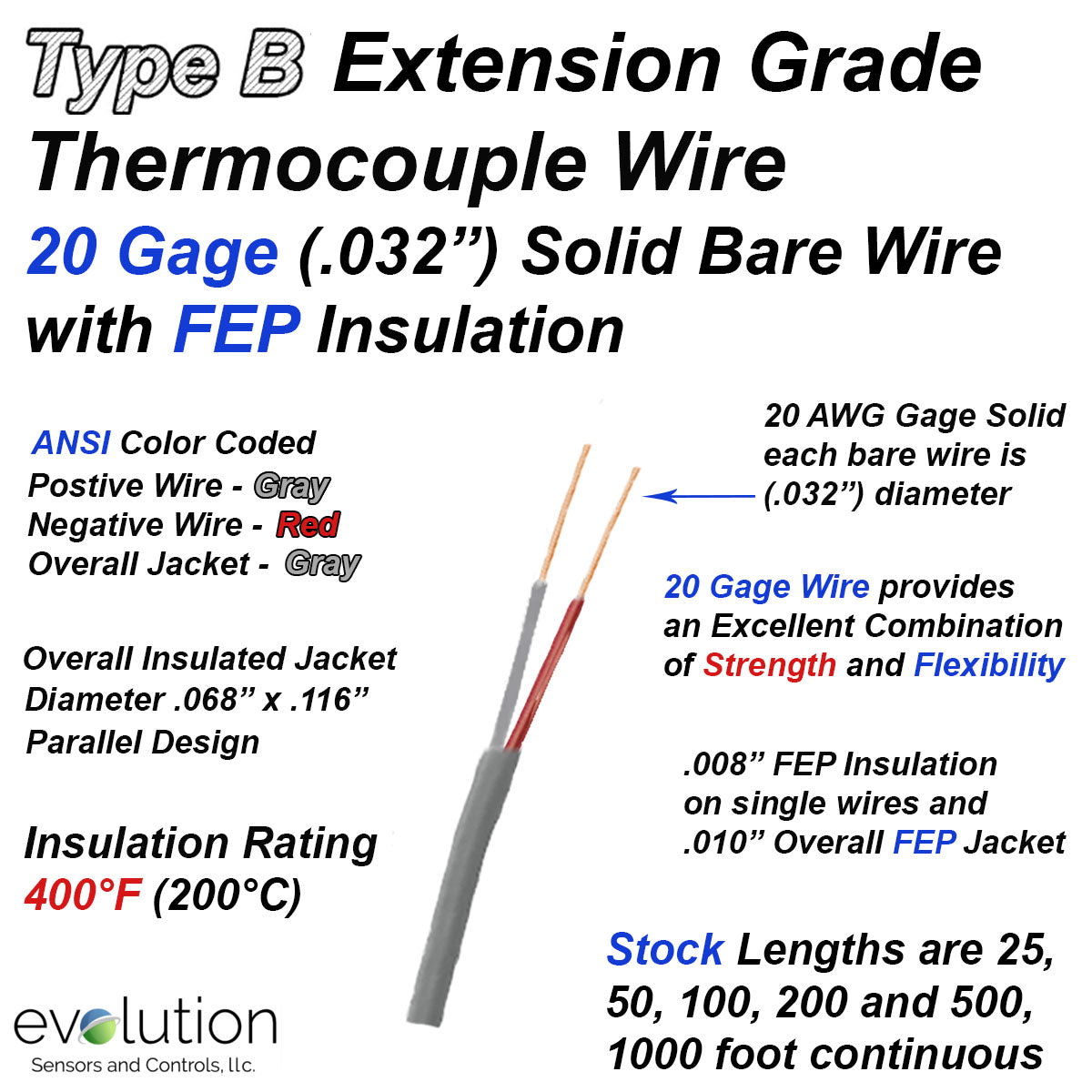

Type B Thermocouple Extension Wire - FEP Insulated 20 Gage Solid
- Type B Extension Grade Thermocouple wire is designed to accurately transfer the thermocouple signal from Type B Platinum Rhodium thermocouple probes to your temperature measurement instrumentation.
- The wire is a Thermocouple Compensating Alloy and not the expensive precious metal platinum rhodium materials.
- 2-Wire parallel design with 400°F (200°C) FEP Insulation on both .032" diameter 20 Gage Solid Wires and FEP as the overall jacket.
- ANSI color code with a Gray on the Copper Positive wire and Red on the
Copper Negative wire with and overall Gray Outside Jacket - Overall nominal dimension of .068" x .116"
- Evosensors part number: B1E-FPXX-20G-(enter number)FT
- Part Number Example: B1E-FPXX-20G-100FT for a 100ft length
