Type C Bare Thermocouple Wire - 36, 30, and 24 Gage Solid Diameter - Sold in 1 ft and LONGER Matched Pairs

Evolution Sensors and Controls

$45.00
SKU: C1E-BWXX-36G-FT

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

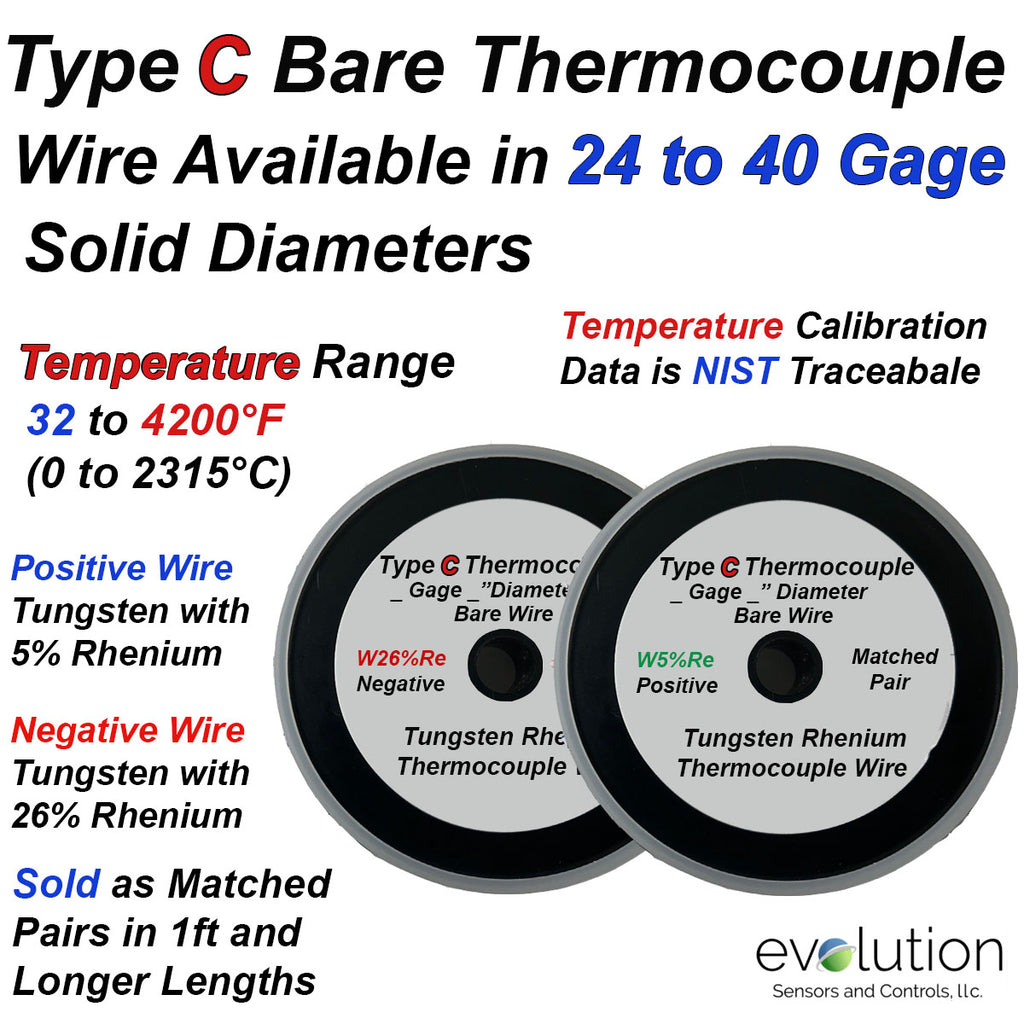

Type C Bare Thermocouple Wire avaialble in diameters 36, 30, and 24 Gage Solid

  • Make your own Type C bare wire thermocouples or extend the lead wires of you existing thermocouple in extreme high temperature conditions
  • Temperature Range 32 to 4200°F (0 to 2315°C)
  • How to Order - If you require 30 Gage wire, select that variant option and enter the number of FT you require in Qty Box, for example 4ft.
  • Bare Wire Options

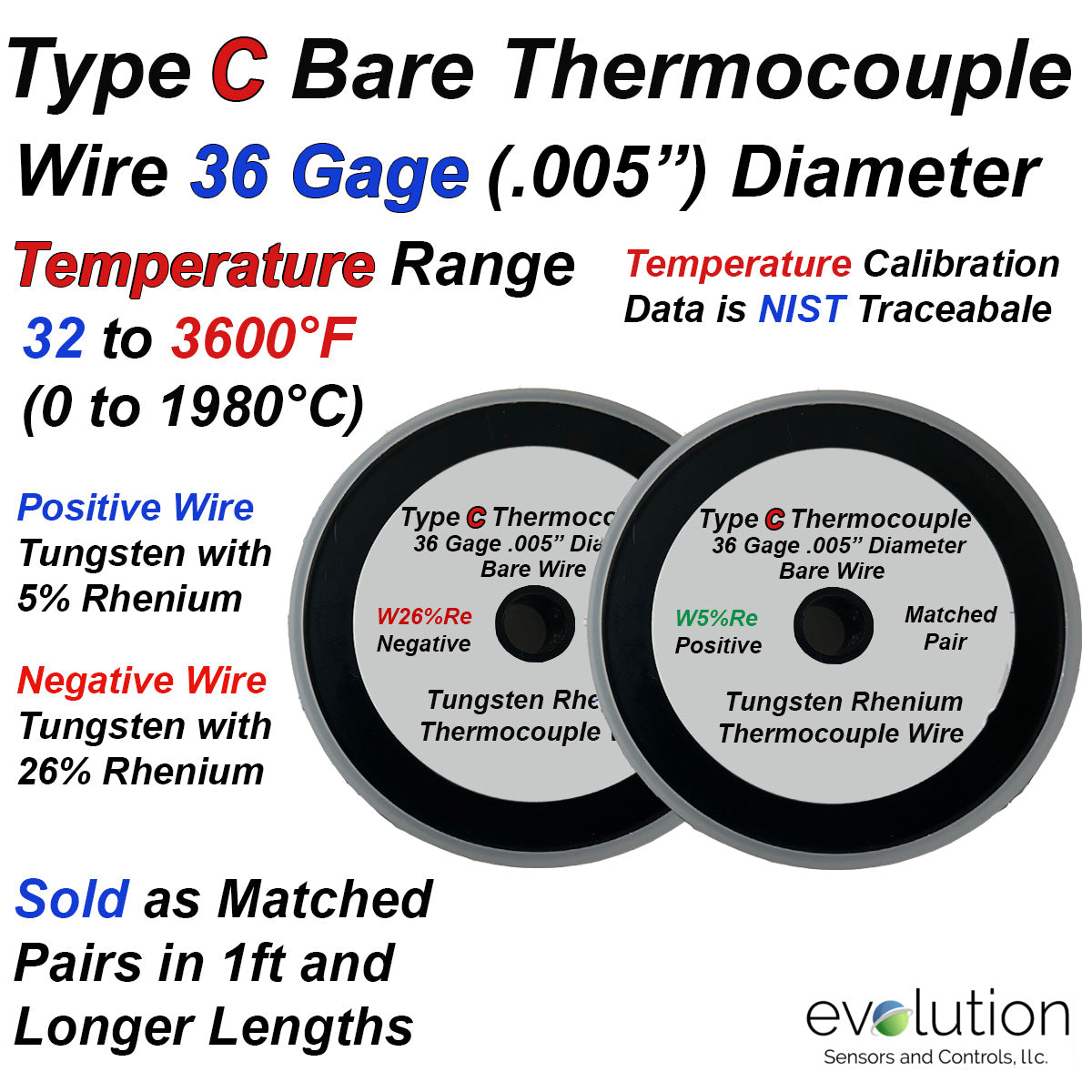

    • 36 gage solid measuring .005" (.127 mm) diameter

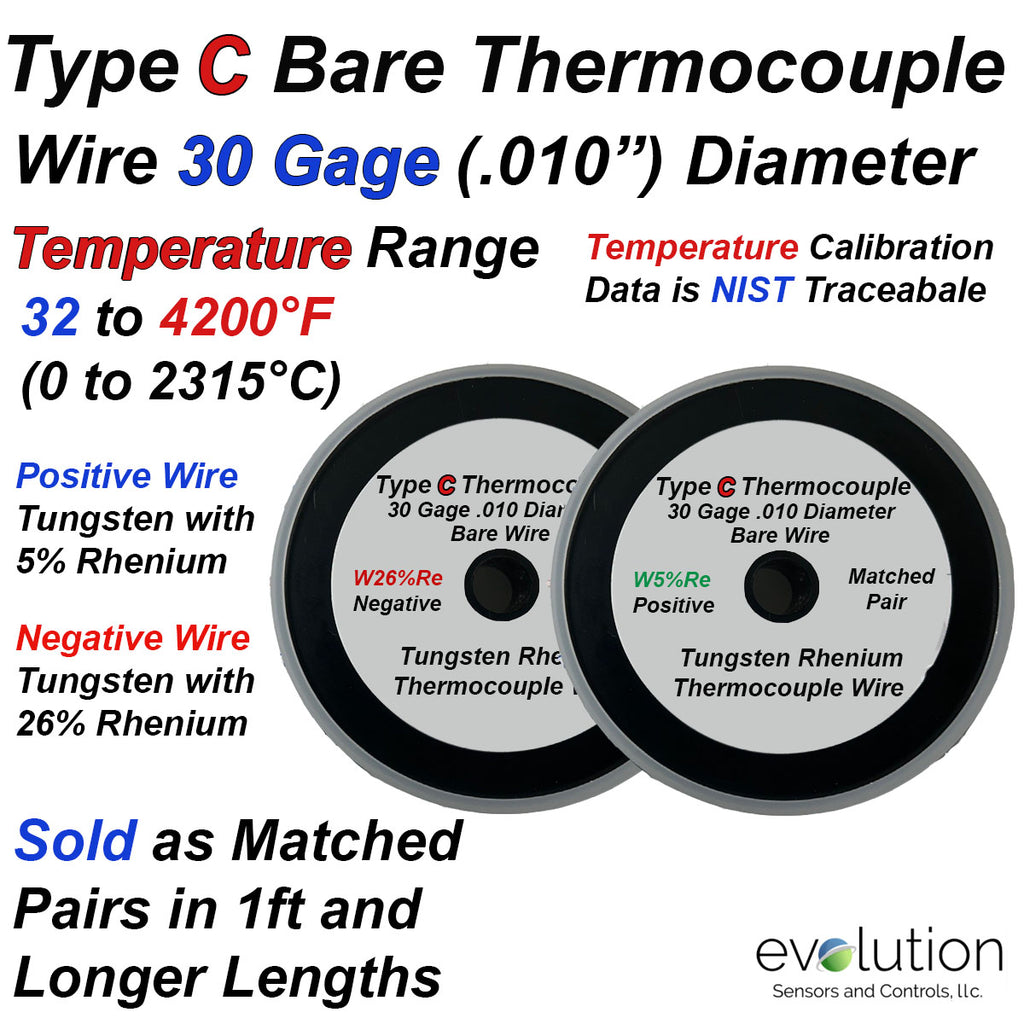

    • 30 gage solid measuring .010" (.254 mm) diameter
    • 24 gage solid measuring .020" (.508 mm) diameter.
      • Postive wire is Tungsten with 5% Rhenium
      • Negative wire is Tungsten with 26% Rhenium
  • NIST Traceabale temperature calibration data is avaiable upon request
  • Evosensors Part Numbers:
    • C1E-BWXX-36G-FT - (36 Gage .005")
    • C1E-BWXX-30G-FT - (30 Gage .010")
    • C1E-BWXX-24G-FT - (24 Gage .020")
