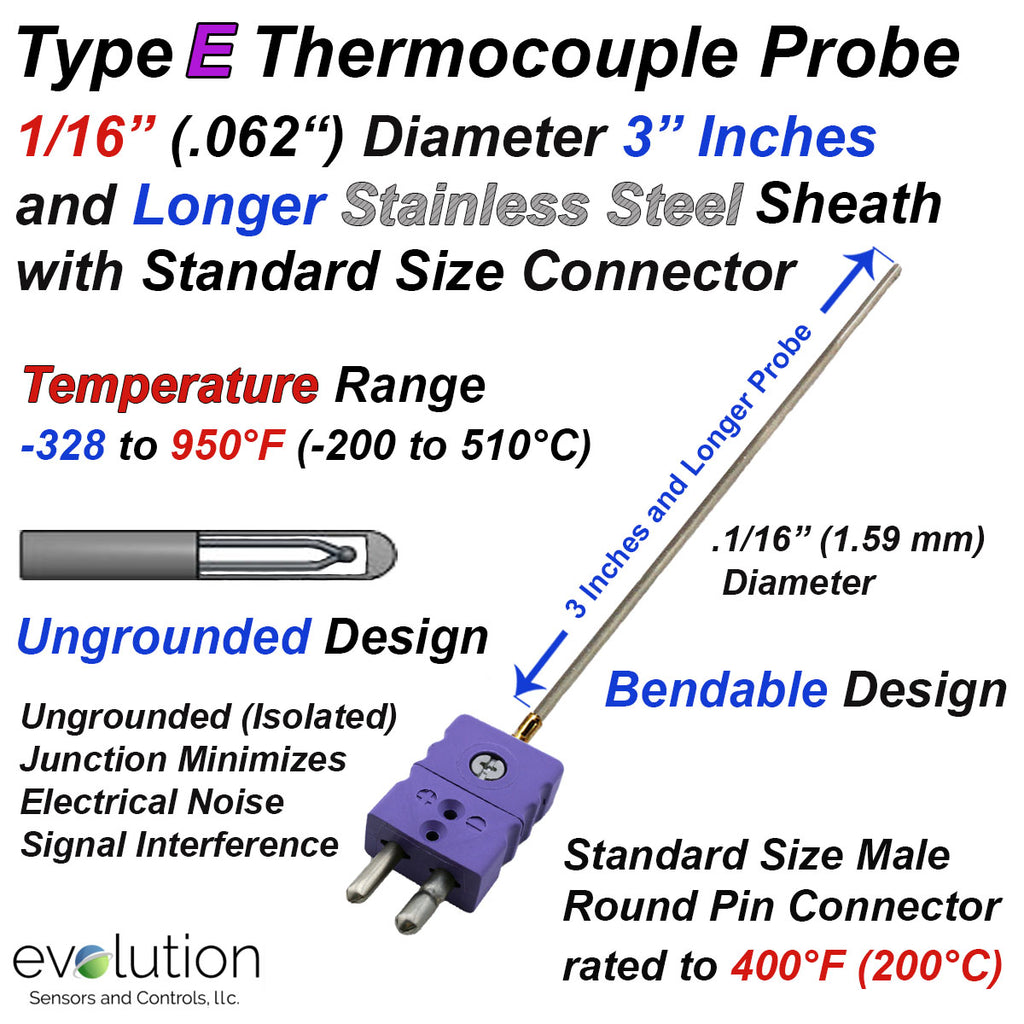

Type E Thermocouple Probe 1/16" Diameter 3 Inches and Longer Stainless Steel Sheath Ungrounded with a Standard Size Connector

Evosensors

$50.00
SKU: E1X-S304-062-UX-3-SPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

E Type Thermocouple Probe 1/16" Diameter 3 Inches and Longer with a Standard Size Male Round Pin Connector

  • Temperature Operating range -328 to 950°F (-200 to 510°C)
  • Ungrounded Junction configuration isolates the thermocouple wires from the sheath to minimize signal errors from potential electrical interference.
  • Stainless Steel MI Cable sheath  - 3 Inches (76.2 mm) and Longer with a 1/16"
    (1.59 mm) diameter. Bendable design
  • Standard Size Quick Connect - Disconnect style male round pin thermocouple connector attached for fast and easy although reliable connection to your temperature measurement instrumentation.
    • Connector Body has temperature range of -40 to 400°F (-40 to 200°C)
  • Evosensors part number : E1X-S304-062-UX-6-SPCX
    • Location G-3-2
  • E1X-S304-062-UX-3-SPCX
    • Location: J-4-13
