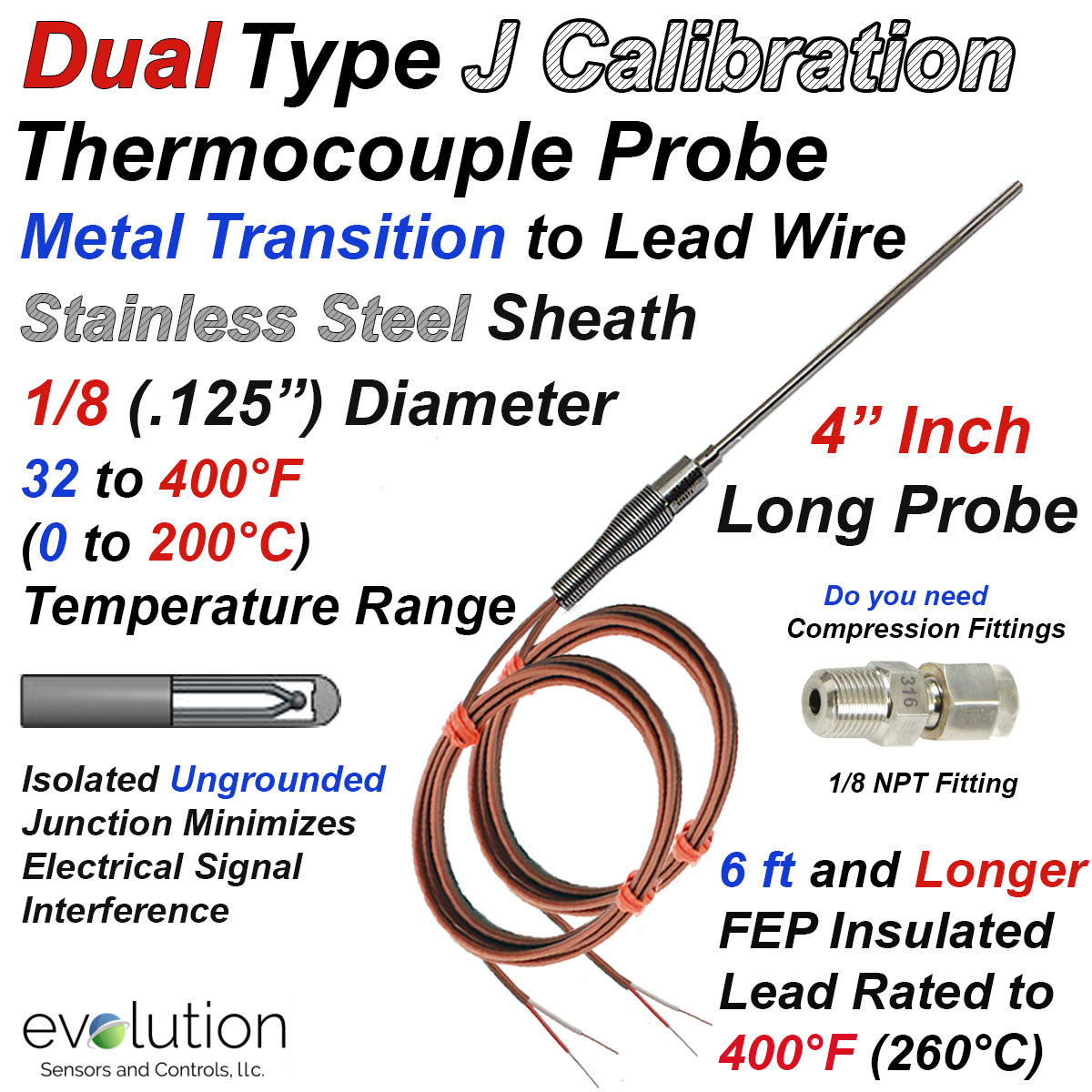

Type J Dual Thermocouple Probe with Transition to Lead Wire - 1/8" Diameter 4 Inch Long Stainless Steel Sheath Ungrounded with 6ft of Lead Wire

Evosensors

$80.00
SKU: J2X-S304-18-UX-4-PFXX-72-STWL

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

Type J Dual Thermocouple Probe with Transition to Lead Wire - 1/8" Diameter 4 Inch Long Stainless Steel Sheath Ungrounded with 6ft of PFA Lead Wire

  • Design provides 2 Individual Thermocouple measuring circuits in 1 stainless steel sheath,
  • Ungrounded Junctions minimizing potential electronic interference and protected the thermocouple junction
  • Temperature Range of 32 to 400°F (0 to 200°C)
  • Transition Fitting is a stainless steel housing and spring backfilled with 500°F (260°C) rated epoxy.
  • Lead Wire is 6ft (72 inches) and Longer FEP  insulated solid thermocouple wire rated to 400F°(200°C)
  • Wire Construction - 24 Gage Solid Type J thermocouple wire with a PFA coating on the single wires and overall jacket.
    • ANSI Color Code - White on the positive wire, Red on the negative wire and Brown overall jacket
  • Instrument Connection - stripped wire leads
  • EvoSensors part number: J2X-S304-18-UX-4-PFXX-72-STWL with 6 ft of lead wire - Location: A-6-59
    • J2X-S304-18-UX-4-PFXX-144-STWL with 12 ft of lead wire

Consider the following Accessories to complete your Temperature Measurment System

Thermocouple Compression Fitting 1/8 NPT to 1/8" Diameter Probe PTFE Ferrule for 1/8" Diameter RTD and Thermocouple Probe Compression Fittings Thermocouple Compression Fitting Stainless Steel 1/4 NPT to 1/8 probe
