Type K High Temperature Fiberglass Insulated 24 Gage Solid Thermocouple Wire Rated to 1200°F (650°C) Continuous and Intermittent to 1650°F (790°C)

Evolution Sensors and Controls

$50.00
SKU: K1X-HGXX-24G-25FT

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

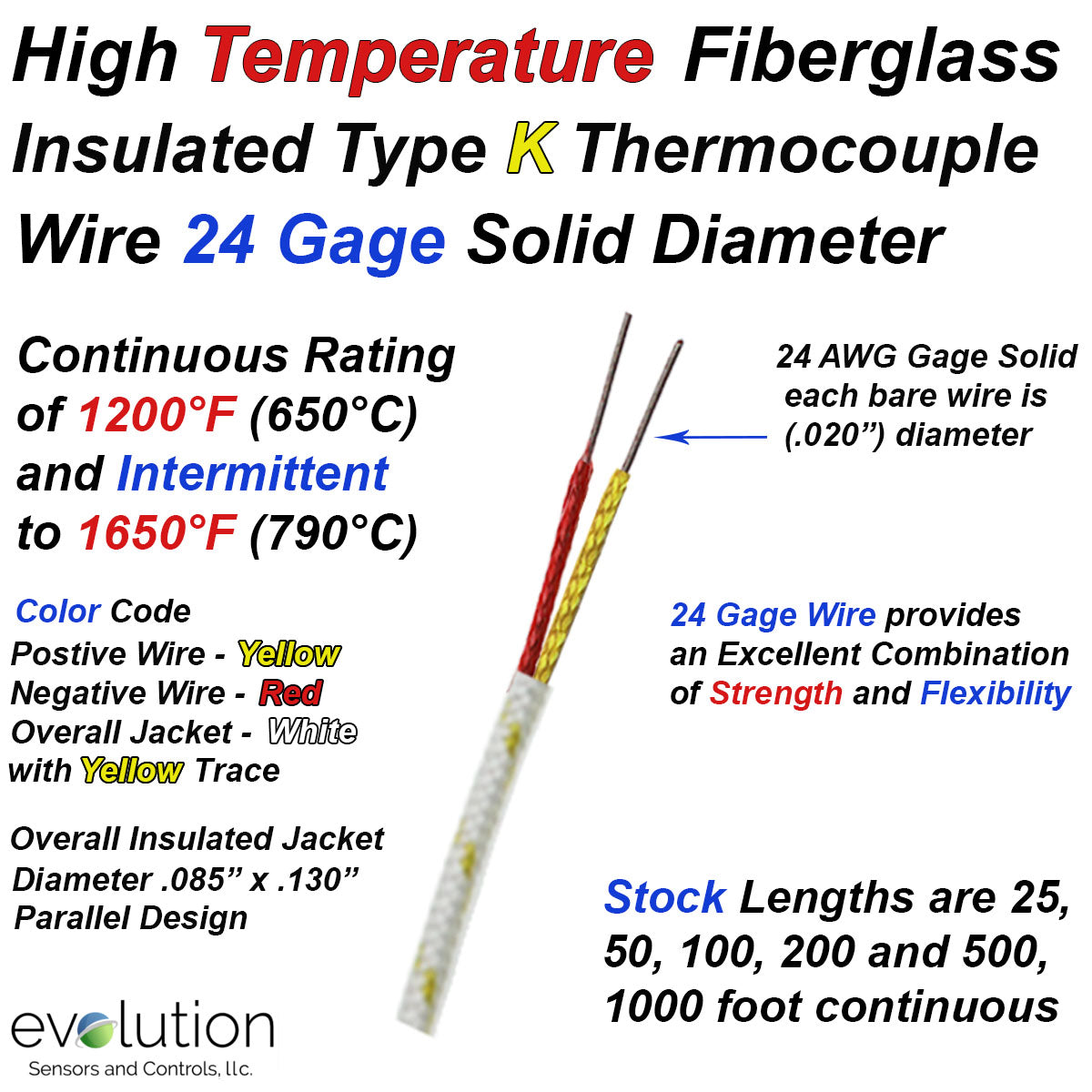

Type K High Temperature Fiberglass Insulated 24 Gage Solid Thermocouple Wire

  • Temperature Range - Continuous 1200°F (650°C) and Intermittent to 1650°F (790°C)
  • Wire Construction: 2 wire design with each bare wire is .020" Diameter. The individual wires are a parallel construction (side by side) and each has a high temperature braided fiberglass insulation.
    • The outside jacket also thas a high temperature braided fiberglass insulation and an overall nominal dimension of .085" x  .130"
  • Color Code is Yellow on the Positive 90% nickel 10% chrome thermocouple alloy wire and Red on the Negative 95% nickel, 2% aluminum, 2 % manganese and 1% silicon thermocouple alloy
    • The overall jacket is White with a Yellow trace
  • EvoSensors part number example: K1X-HGXX-24G-100FT
    • Standard lenghts of 25, 50, 100, 200, 500 and 1000ft
  • Location: W-3-5
