Type K Thermocouple Extension Cable Assemblies - PFA or FEP Fluoropolymer Insulated Wire with a Miniature Male Connector and Stripped End Terminations

Evosensors

$15.00
SKU: K1X-CAPF-24G-FPMS-2FT-MPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

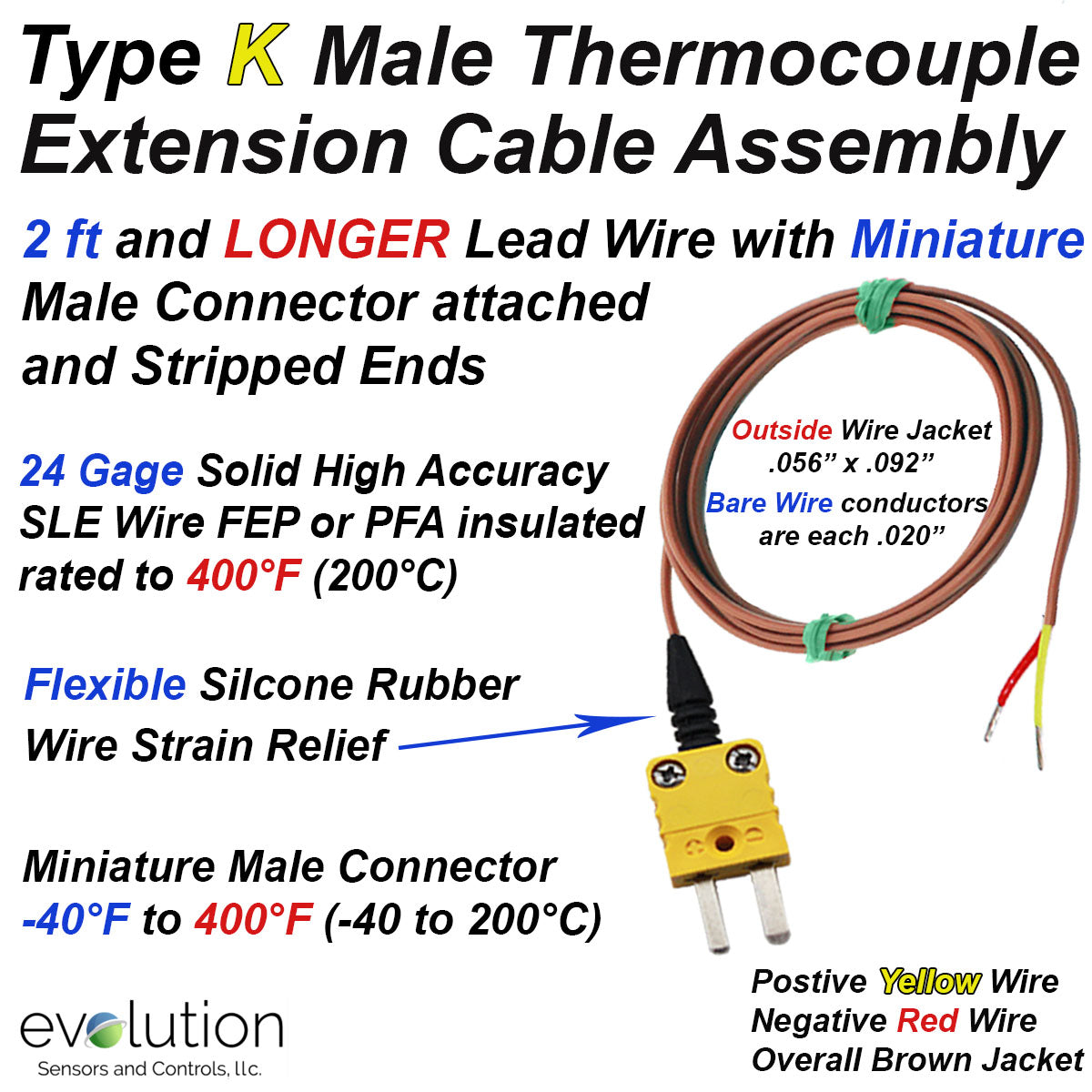

Type K Thermocouple Extension Cable Assemblies - PFA or FEP Fluoropolymer Insulated Wire with a Miniature Male Connector and Stripped End Terminations

CLICK HERE if you are LOOKING for the FULL Offering Thermocouple and RTD Extension Cable Assembly Products

  • Extend the Thermocouple Signal from the probe or sensor to your instrumentation without impacting the accuracy of your temperature measurement
  • Sensor Connection - Type K Miniature Male connector, the body has a temperature range of -40 to 400°F (-40 to 200°C)
    • The connector can accurately transmit the full temperature range of Type K themocouples
  • Instrument Connection - stripped wire leads
  • Wire Temperature Insulation -  range -328 to 400°F plus (-200 to 200°C)
    • The wire can accurately transmit the full temperature range of Type K themocouples.
  • Wire Leads - 1 to 100ft Long - of 24 Gage Solid high accuracy SLE grade Type J thermocouple wire with 2 bare wires measuring .020" each (24 gage) in a parallel design individually insulated with FEP or PFA outer jacket.
    • Custom Lengths - call 407-420-8080 or email info@evosensors.com for fast delivery on custom lengths.
    • Outside jacket dimension .056" x .092" providing a excellent combination of strength and flexibility
    • Color Code is ANSI with a yellow positive wire, red negative wire and brown overall jacket. Connector is yellow
  • EvoSensors Part Number: K1X-CAPF-24G-FPMS-(*FT)-MPCX with 6ft of lead wire
    • K1X-CAPF-24G-FPMS-8FT-MPCX with 8ft of lead wire
    • K1X-CAPF-24G-FPMS-16FT-MPCX with 16ft (5 meters) of lead wire
