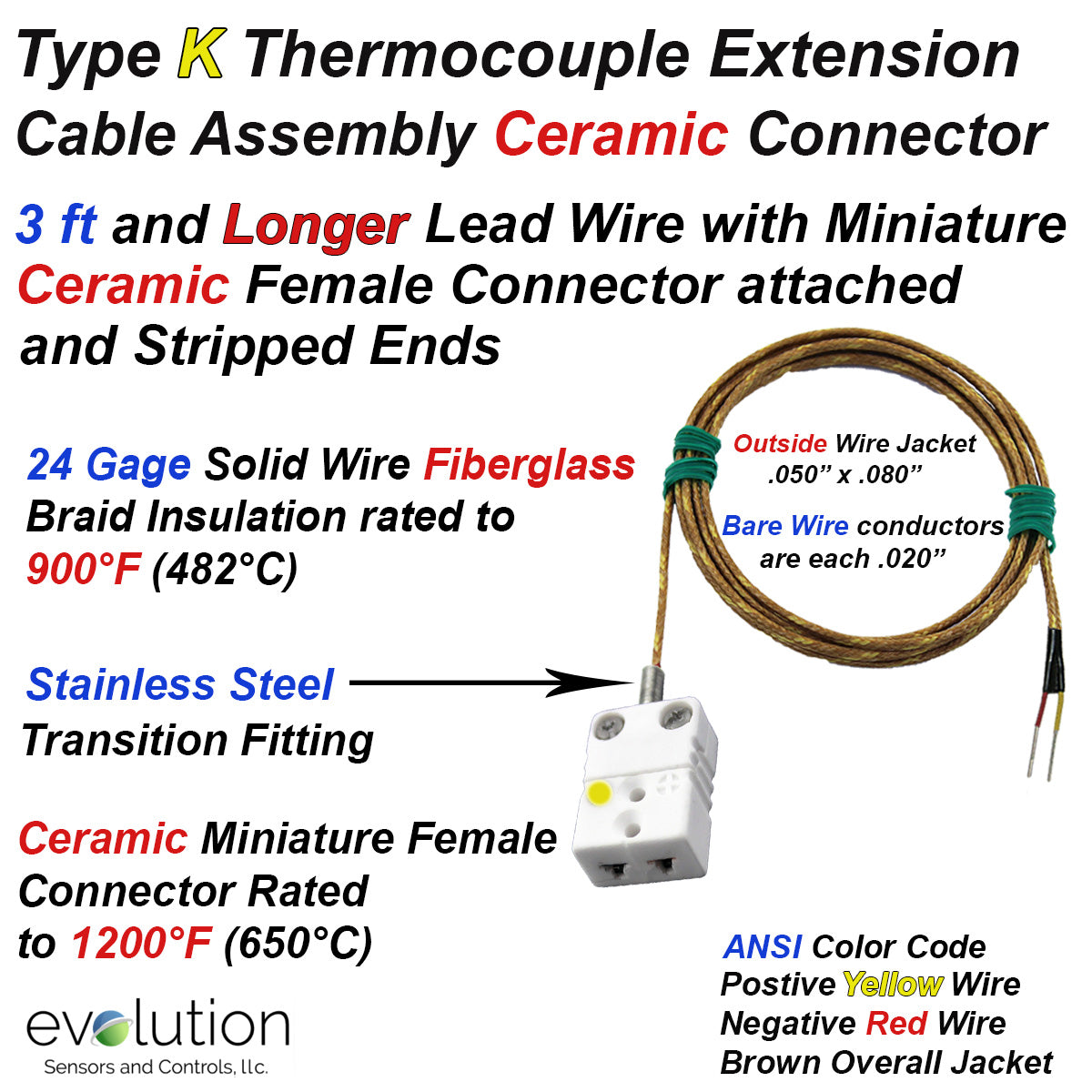

Type K Thermocouple Extension Cable - Fiberglass Braid Lead Wire with Stripped Ends and Miniature Ceramic Female Connector

Evosensors

$30.00
SKU: K1X-CAFG-24G-FPSF-6FT-MCCF

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

Type K Thermocouple Extension Cable - Fiberglass Braid Lead Wire with Stripped Ends and Miniature Ceramic Female Connector

  • Extend the Thermocouple Signal from the probe or sensor to your instrumentation without impacting the accuracy of your temperature measurement
  • Sensor Connection - a 32 to 1200°F (0 to 650°C) rated Type K Miniature Ceramic Female connector on the wire provides the connection to the male connector on the thermocouple probe
  • Instrument Connection - stripped wire leads
  • Wire Temperature Operating range 32 to 900°F (0 to 482°C)
  • Wire Leads - 24 Gage Solid high accuracy Type K thermocouple wire with 2 bare wires measuring .020" each (24 gage) in a parallel design individually insulated with a FIberglass Braid
    • Outside jacket dimension .054" x  .085" providing a excellent combination of strength and flexibility
    • Color Code is ANSI with a yellow positive wire, red negative wire and brown overall jacket. Connector is white with yellow dot.
  • EvoSensors Part Number: K1X-CAFG-24G-FPSF-6FT-MCCF
