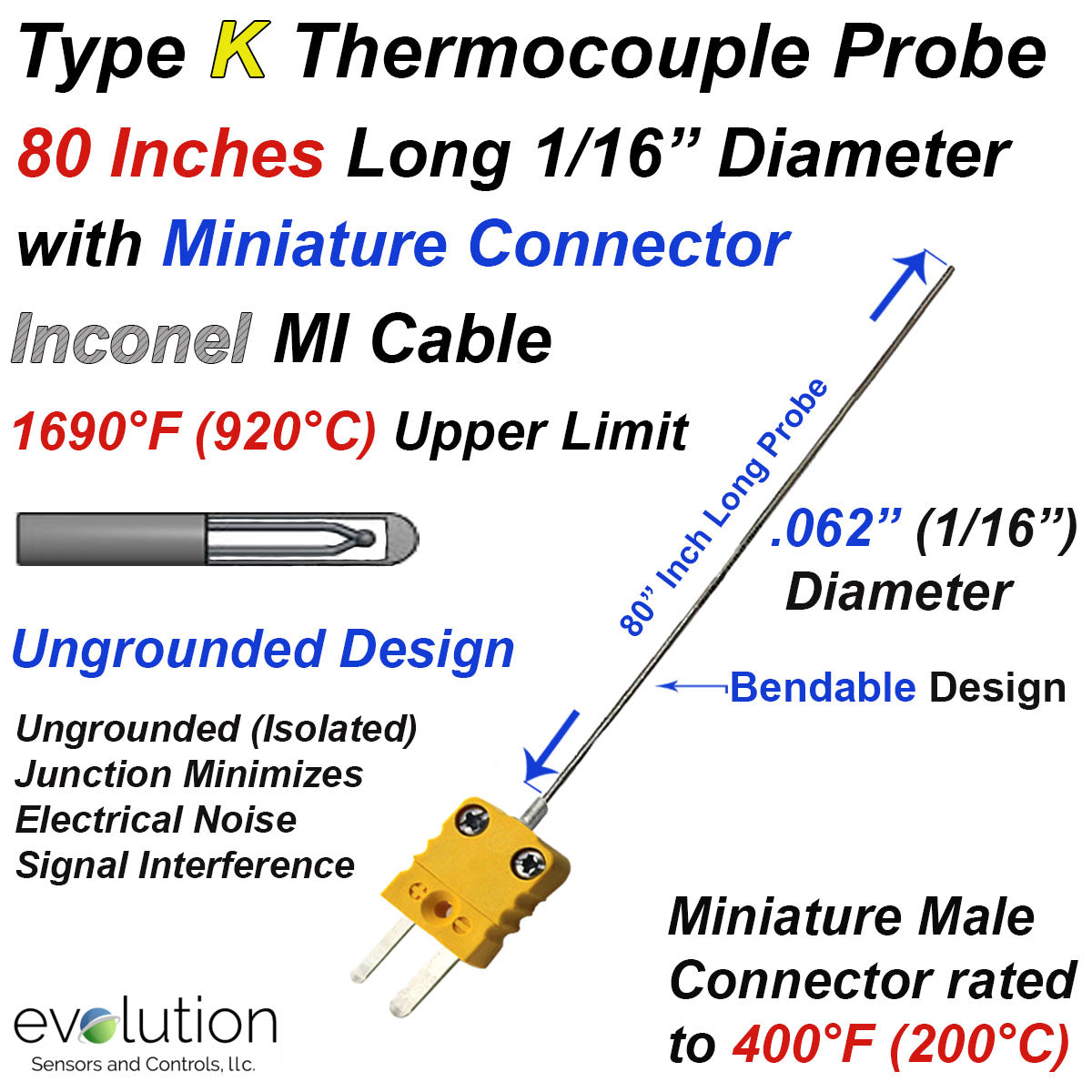

Type K Thermocouple Probe with Miniature Connector 1/16" Diameter Inconel Sheath 80 Inches Long with Ungrounded Junction

Evosensors

$65.00
SKU: K1X-IN60-062-UX-80-MPCX

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

Type K Thermocouple Probe with Miniature Connector 1/16" Diameter Inconel Sheath 80 Inches Long with an Ungrounded Junction

  • Temperature Operating range of -200 to 1,690°F (-128 to 920°C)
  • MI Cable Design provides the ability to Form or Bend the probe to a radius equal to 2.5 times the sheath diameter without causing any damage to the temperature sensing capabilities or integrity of the metal sheath.
    • The probe is coiled for shipping purposes
  • Inconel Sheath provides a higher level of Strength at higher temperatures as compared to Stainless Steel MI Cable.
  • Ungrounded (Isolated) thermocouple junction from the sheath to Minimize potential Signal Interference from electrical noise
  • Instrument Connection - a miniature male flat pin Type K thermocouple connector.
    • Quick Connect- Disconnect design to provide fast changeovers for your test systems
    • Plastic Connector body is capable of environments of -40 to 400°F (-40 to 200°C) the connector is capable of accurately transferring the full temperature range of Type K thermocouples
  • Probes are shipped coiled as our standard design. If you need your probe sheath shipped straight, please contact us by phone or email, as this required additional shipping charges.
  • Evosensors part number: K1X-IN60-062-UX-80-MPCX
  • Location: C-4-23

Consider the following Accessories to complete your Sensor System

Type K Miniature Female Thermocouple Connector
