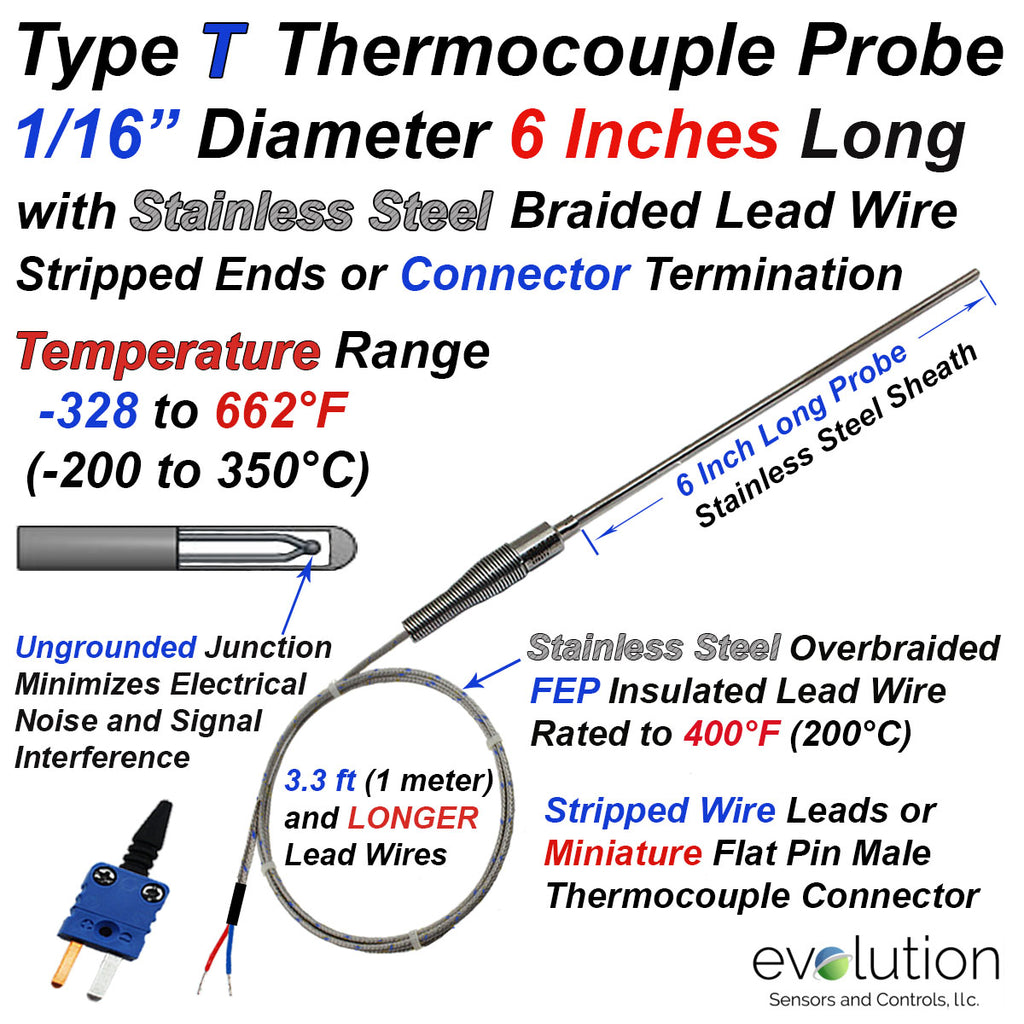

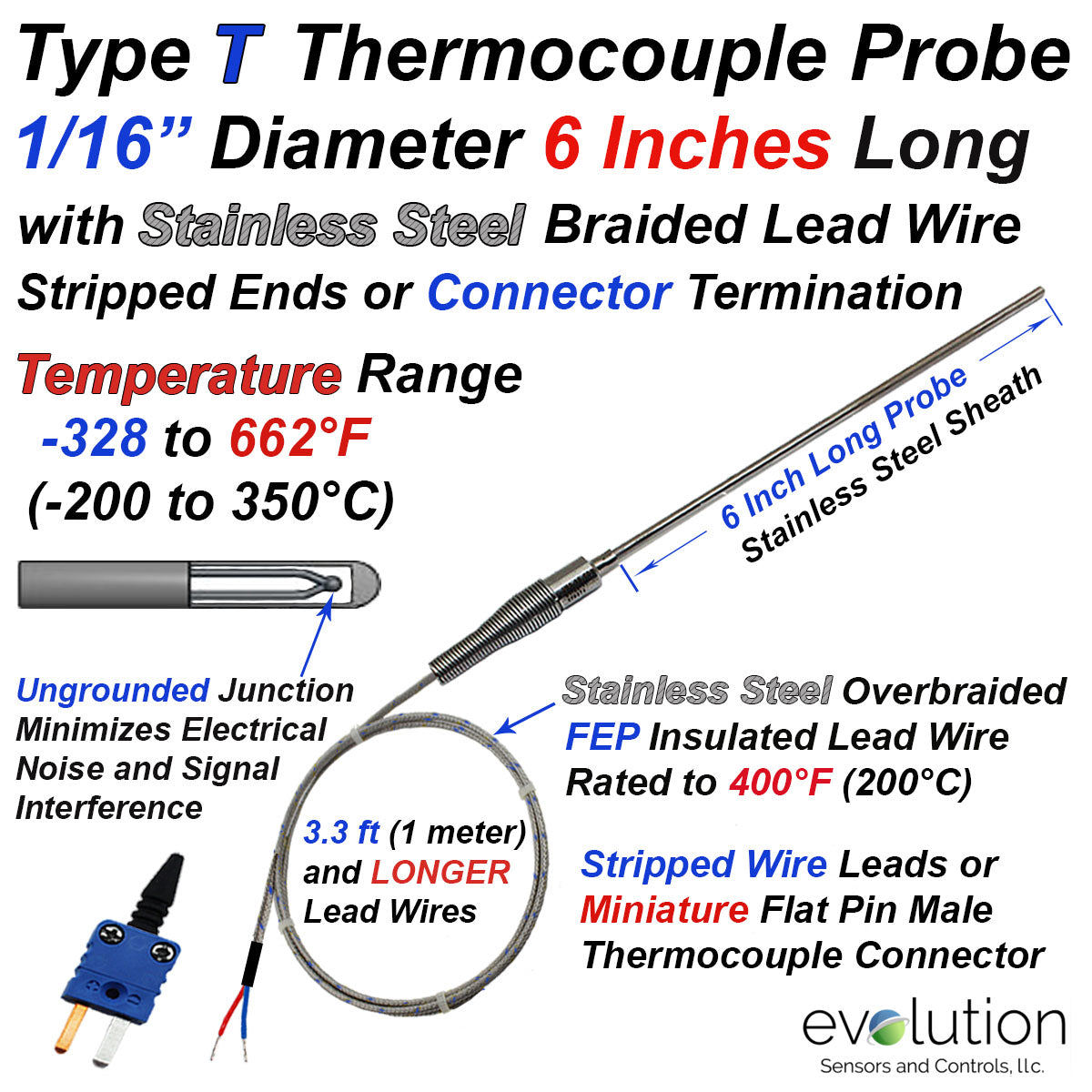

Type T Thermocouple Probe 1/16" Diameter 6 Inch Long Stainless Steel Sheath Ungrounded with Stainless Steel Overbraid on FEP Lead Wire with Miniature Connector or Stripped Wire Ends

Evosensors

$55.00
SKU: T1X-S304-062-UX-6-PFSB-40-STWL

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support
Type T Thermocouple Probe 1/16" Diameter 6 Inch Long Stainless Steel Sheath Ungrounded with Stainless Steel Overbraid on FEP Lead Wire with Miniature Connector or Stripped Wire Ends
  • Temperature Operating range of the thermocouple probe sheath is -452 to 662°F (-269 to 350°C)
  • Stainless Steel sheath probe 1/16" diameter 6 inches Long
    • Bendable MI Cable design with a bend radius equal to 2.5 times the sheath diameter
  • Ungrounded Thermocouple design minimizes electrical noise and signal interference.
  • Probe Transition to a Stainless Steel fitting with epoxy backfill and Stainless Steel spring strain relief with lead wire rated to 400°F (200°C)
  • Lead Wire is 40" Inches (3.3 ft or 1 Meter) long FEP plastic fluoropolymer Type T stranded thermocouple grade wire with a rugged Stainless Steel overbraid. The overall outside jacket measures 0.093" x 0.133"
  • Instrument Connection - miniature male thermocouple connector or stripped wire leads
  • Industries and Applications include Military, Power Generation, Engine Control, Automotive, Portable Combustion Power and Heat Systems along with many others.
  • EvoSensors part number: T1X-S304-062-UX-6-PFSB-40-MPCX or T1X-S304-062-UX-6-PFSB-40-STWL

Location: H-2-5 for T1X-S304-062-UX-6-PFSB-40-STWL
