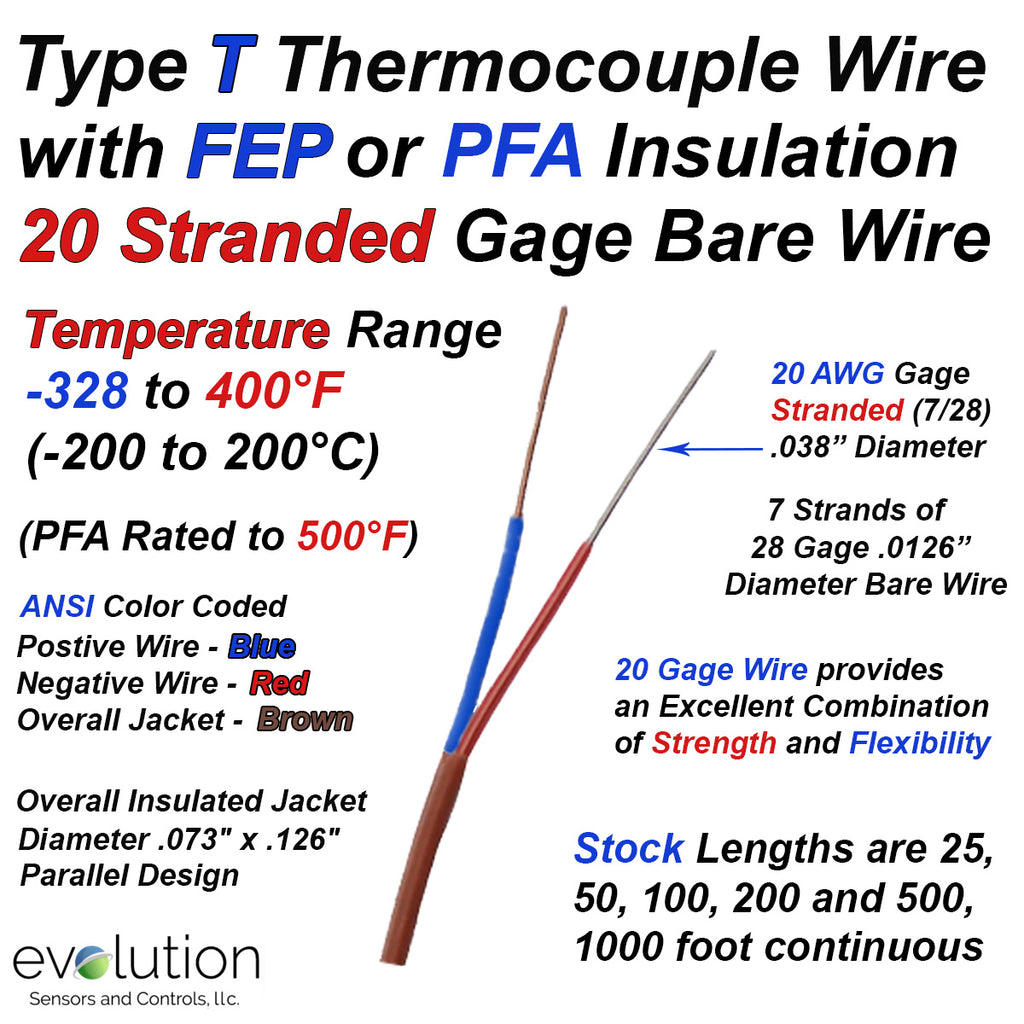

Type T Thermocouple Wire 20 Gage Stranded FEP or PFAInsulated

Evosensors

$45.00
SKU: T1X-PFXX-20G-25FT

   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

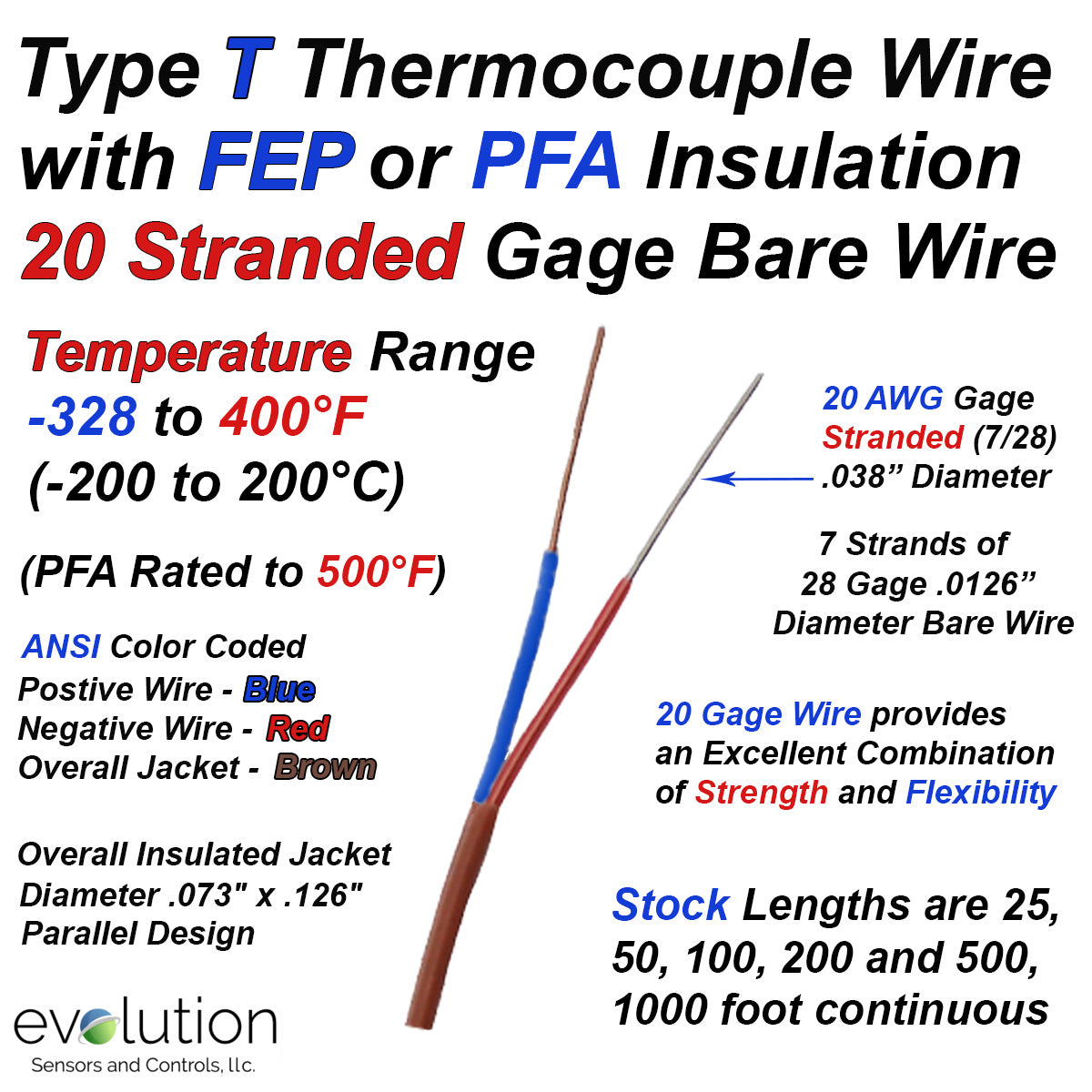

Type T Thermocouple Wire 20 Gage Stranded FEP or PFA Insulated

  • Temperature Operating range is -380°F to 400°F (-200 to 200°C)
    • PFA rated to 500°F (260°C)
  • 20 Stranded Gage (7/28) with the bare wire overall diameter measuring 0.038 Inches
    • 7 Strands of 28 Gage .0126” Diameter Bare Wire
  • Wire Construction is a parallel design with both individual wires and outside jacket consisting of a  0.008" diameter PFA (Plastic Fluoropolymer) insulation.
  • Overall outside jacket dimension of 0.073" x 0.126"
  • ANSI Color Coded with Blue on the Positive copper wire and Red on the constantan Negative Wire. The overall jacket is Brown
  • EvoSensors Product Number: T1X-PFXX-20S-( )FT
    • Enter length required in standard offering of 25, 50, 100, 200, 500 and 1000 ft
