Type E Twisted Shielded 24 Gage Solid FEP Insulated Thermocouple Wire

Evosensors

$50.00
SKU: E1X-FPTS-24G-25FT

← Previous Product
   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

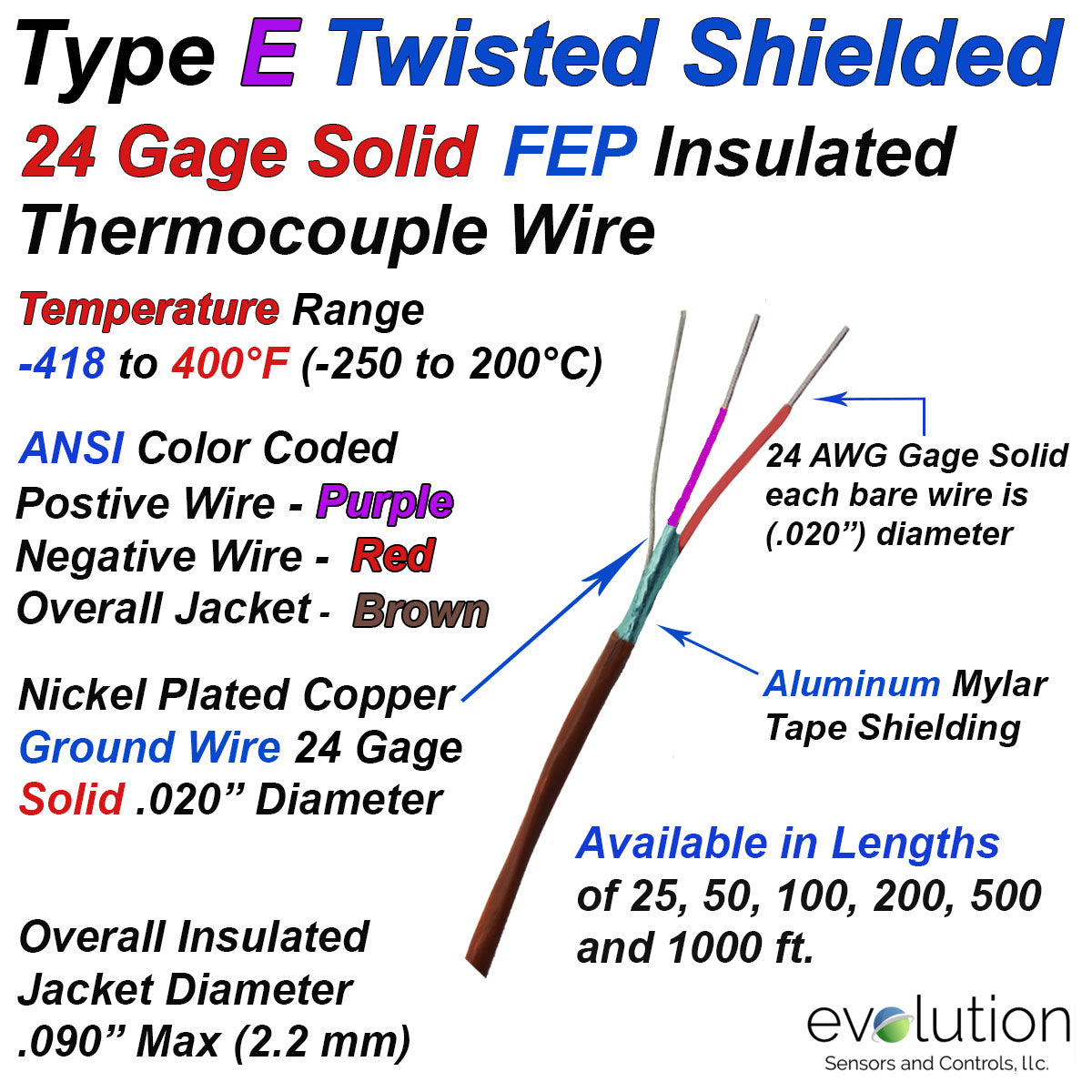

Type E Twisted Shielded 24 Gage Solid Thermocouple Wire FEP Insulated

  • Temperature Range is -418 to 400°F (-250 to 200°C),
  • Twisted Shielded thermocouple wire design to minimize electrical interference to a Type E thermocouple signal.
  • 24 Gage (.020") solid thermocouple wire with a Twisted construction.
    • Aluminum Mylar shielding is wrapped over the 2 internal FEP insulated wires.
    • Ground Wire is 24 gage solid nickel plated copper and it is in contact with shield to provide additional grounding options
    • FEP Insulation on the 2 individual thermocouple wires and the outside jacket with a maximum temperature range of 400°F (200°C) rating and approx. 0.090" overall maximum dimension
  • Color Code - ANSI with Purple Positive leg and Red Negative  leg. The overall outside jacket is Brown
  • Thermocouple Alloy Composition: Type E thermocouples consist of a positive nickel-chromium (NiCr) wire and a negative constantan (copper-nickel) wire.
  • Available Lengths are 25, 50, 100, 200 and 500, 1000 foot continuous.
  • Part number: E1X-FPTS-24G-(enter standard number of feet)FT
    • Part number example E1X-FPTS-24G-100FT
