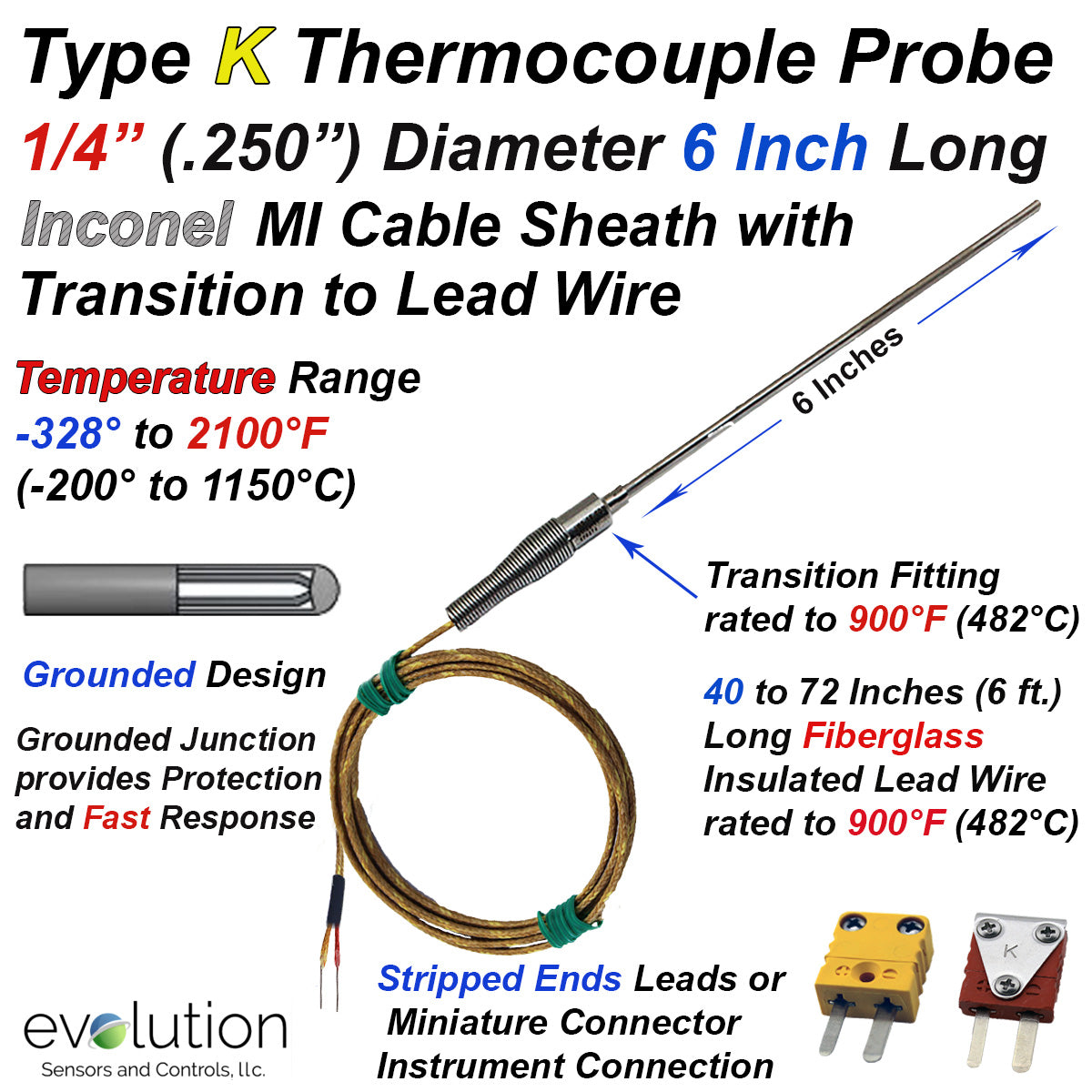

Type K Thermocouple Probe 6 inches Long 1/4" Diameter Inconel Sheath Grounded with a Transition to 40 or 72 inches of Fiberglass Insulated Wire

Evosensors

$80.00
SKU: K1X-IN60-250-GX-6-FGXX-40-STWL

← Previous Product Next Product →
   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

Type K Thermocouple Probe 6 inches Long 1/4" Diameter Inconel Sheath Grounded with a Transition to 40 or 72 Inches of Fiberglass Insulated Wire

    • Temperature Operating range of the probe sheath is -328 to 2100°F
      (-200 to 1150°C)
      • The accuracy of Type K thermocouples at temperatures below 32°F (0°C) is typically ± 2.2°C or ± 2% whichever is greater
    • Grounded Junction the internal thermocouple wire are in contact with the inside tip of the probe providing fast response and protection from the temperature measurement environment
    • Bendable Probe - 6 inch long 1/4" diameter stainless steel MI Cable sheath design provide the ability to bend the probe to a radius of 2.5 times the diameter without damaging the sensor
    • Transition to Lead Wire is stainless steel fitting backfilled with high temperature ceramic epoxy to 900°F (482°C) and a stainless steel spring providing strain relief for 3.3 ft (40 Inches or 1 meter) to 6 ft (72 inches)
    • Color Code is ANSI with a yellow insulated nickel chrome positive wire, red insulated nickel aluminum negative wire and brown overall jacket
    • Wire Leads -3.3 ft (40 Inches or 1 meter) to 6 ft (72 inches) long of 20 gage stranded (7/28 - 7 strands of 28 gage (.012") diameter thermocouple wire individually insulated with Fiberlgass braid in a 2 wire parallel construction and Fiberglass outer jacket.
    • EvoSensors part number: K1X-IN60-250-GX-6-FGXX-72-STWL - Design with stripped leads
    • Location: C-2-28
