Type T Twisted Shielded 24 Gage Solid FEP Insulated Thermocouple Wire

Evosensors

$50.00
SKU: T1X-FPTS-24G-25FT

← Previous Product
   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

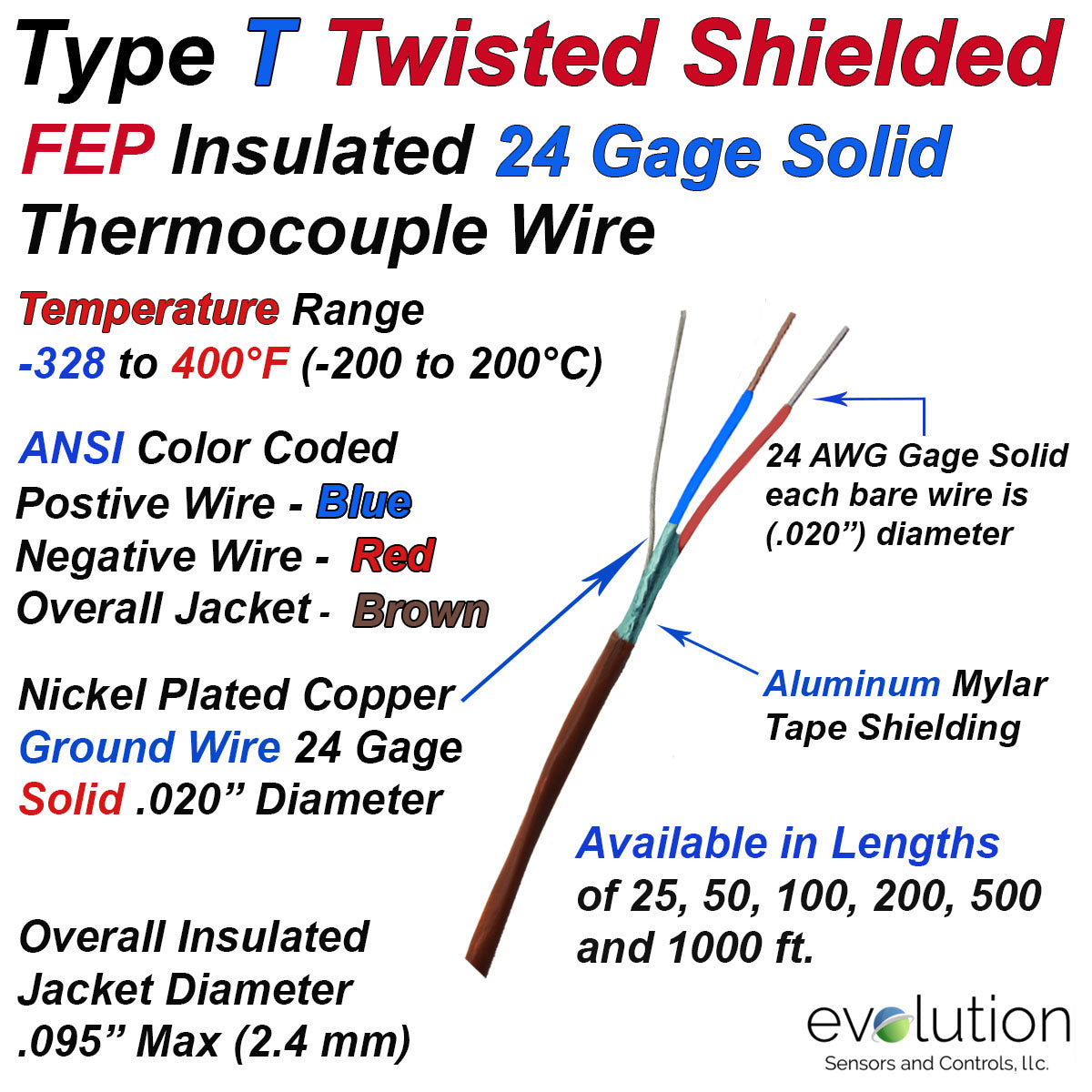

Type T Twisted Shielded 24 Gage Solid Thermocouple Wire FEP Insulated with Aluminum Mylar Shielding and Ground Wire

  • Temperature Range is -328 to 400°F (-200 to 200°C),
  • Twisted Shielded thermocouple wire design to minimize electrical interference to a Type T thermocouple signal.
  • 24 Gage (.020") solid thermocouple wire with a Twisted construction.
    • Aluminum Mylar shielding is wrapped over the 2 internal FEP insulated wires.
    • Ground Wire is 24 gage solid nickel plated copper and it is in contact with shield to provide additional grounding options
    • FEP Insulation on the 2 individual thermocouple wires and the outside jacket with a maximum temperature range of 400°F (200°C) rating and approx. 0.095" overall maximum dimension
  • Color Code - ANSI with Blue Positive leg and Red Negative  leg. The overall outside jacket is Brown
  • Thermocouple Alloy Composition: Type T thermocouples consist of a positive Copper (Cu) wire and a negative constantan (copper-nickel) wire.
  • Available Lengths are 25, 50, 100, 200 and 500, 1000 foot continuous.
  • Part number: T1X-FPTS-24G-(enter standard number of feet)FT
    • Part number example T1X-FPTS-24G-100FT

Complete you Temperature Measurement System with the Following Products

     Type T Miniature Three Pin Male Thermocouple Connector
Type T Thermocouple Connector Miniature Female Three Pin Design
