Type K MI Cable Probe Inconel Sheath Grounded 1/4" Diameter 12 Inches Long with Standard Connector

Evosensors

$50.00
SKU: K1X-IN60-250-GX-12-SPCX

← Previous Product Next Product →
   Call 407 420-8080 or Email info@evosensors.com for Technical and Sales Support

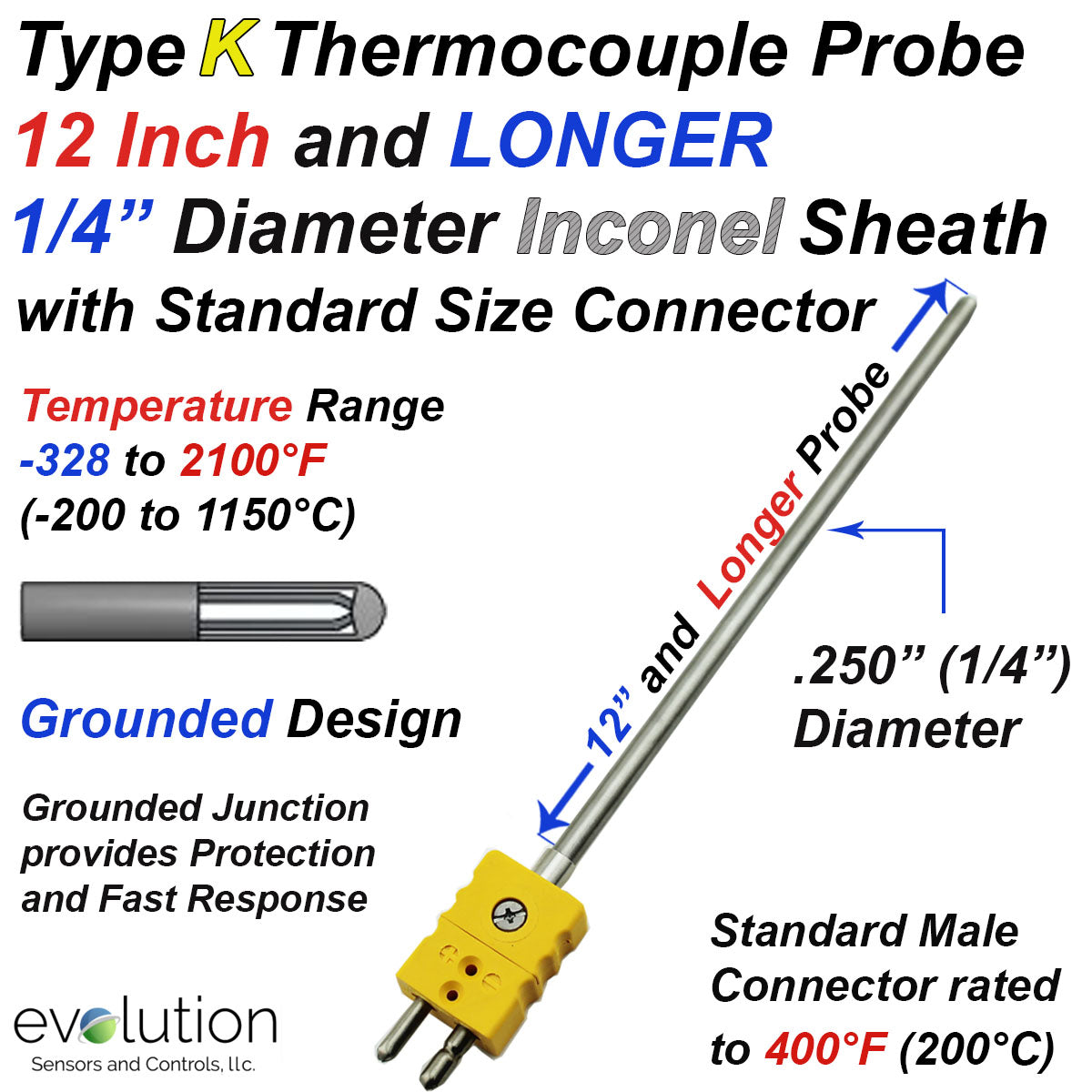

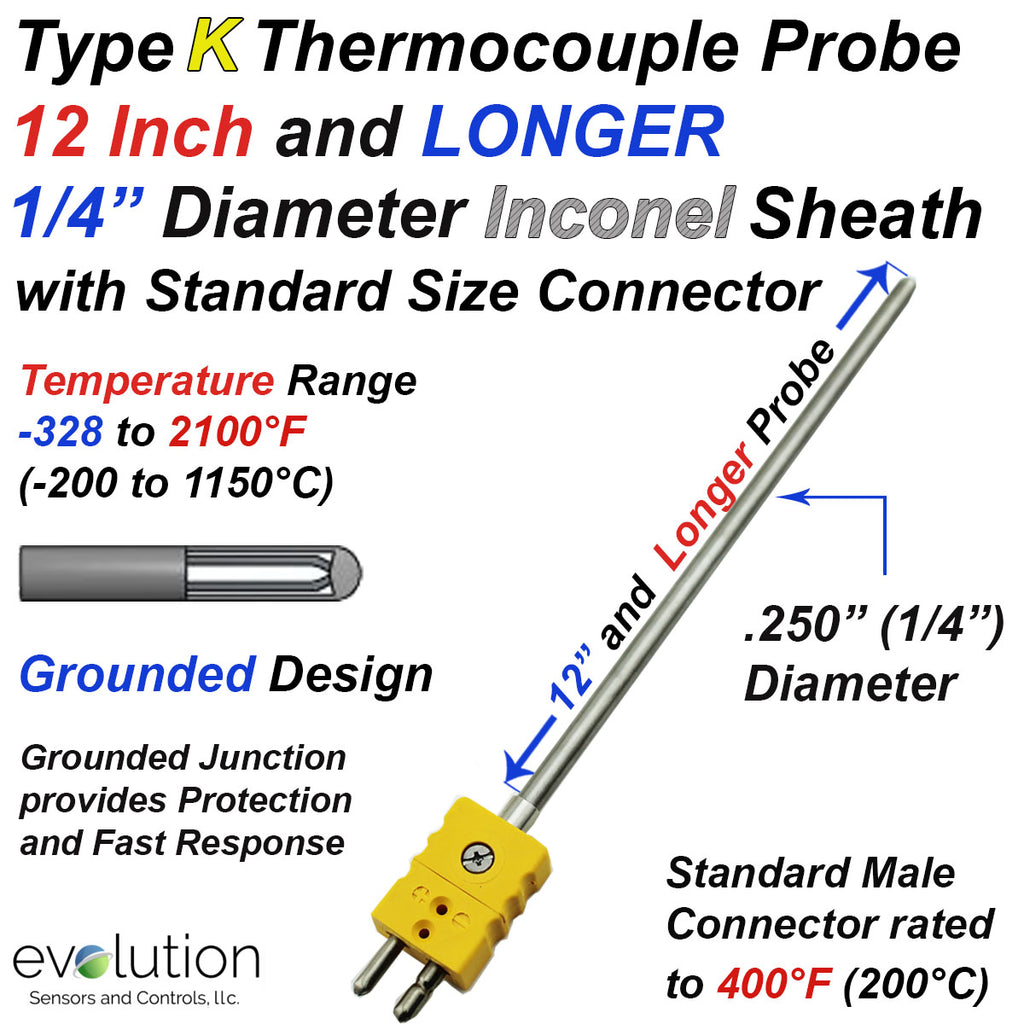

Type K Thermocouple Probe 12 inch Long 1/4" Diameter Inconel Sheath Grounded with Standard Size Male Round Pin Connector.

  • Upper Temperature Limit recommended by ASTM and IEC for a 1/4" diameter type K sheathed thermocouple probe is approximately 2100°F (1150°C).
  • MI Cable Probe Sheath provides the ability to Form or Bend the probe to a radius equal to 2.5 times the sheath diameter without causing any damage to the temperature sensing capabilities or integrity of the metal sheath.
    • Inconel sheath provides higher strength as compared to Stainless Steel at high temperatures
  • Grounded Junction provides Protection and Fast Response
  • Instrument Connection: standard size male with round pins with an upper temperature limit of 400°F (200°C).
  • EvoSensors Part Number: K1X-IN60-250-GX-12-SPCX
  • Location: I-3-4
